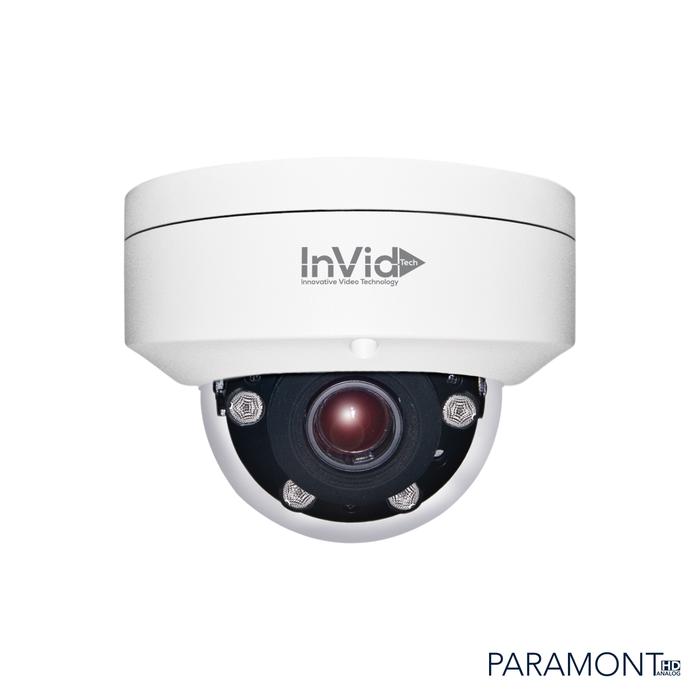

Camera Canada Invidtech PAR-ALLDRXIRA27135BD: 5 Megapixel, Outdoor Dome

Setup Video

Setup Video

5 Megapixel TVI/AHD/CVI/Analog Outdoor Dome with Internal Built-in Balun & BNC, Motorized A/F 2.7-13.5mm, 98’ IR Range, D-WDR, Dual Voltage

Features

Camera	PAR-ALLDRXIRA27135BD
Filter	Removable IR Cut Filter
Image Sensor	1/2.7” 5M Progressive Scan CMOS
Pixels	2688(H)×1944(V)
Horizontal Resolution	5MP
Minimum Lux	0Lux (when 4pcs high power LED on)
Vertical Frequency	NTSC:60Hz PAL:50Hz
Scanning System	Progressive
S/N Ratio	≥50dB
Electronic Shutter	NTSC:1/60-1/60,000S PAL:1/50-1/50,000S
Lens	2.7-13.5mm Motorized AF IR Lens
White Balance	ATW
AUTO Gain Control	ON
DNR	OFF/ON
Day&Night	AUTO/Color/BW/Ext
Available IR Distance	98ft
Video Output	TVI/AHD: 5MP @20fps, 4MP @ 30fps CVI: 4MP @30fps CVBS
Video Output By Default	TVI
IP Rating	IP67 4.5-5.5 mm external wiring
Housing	IK10
Power Supply	DC12V & AC24V
Current consumption	DC12V: 550mA(MAX) / AC24V: 230mA(MAX)
Dimension	Φ5.96”×4.30” (151.4×109.3mm)
Weight	1300g (42.33oz)
Storage Temperature	-22°F ~ 140°F (-30°+60℃)
Operating Temperature	-22°F ~ 104°F (-30°+40℃)
