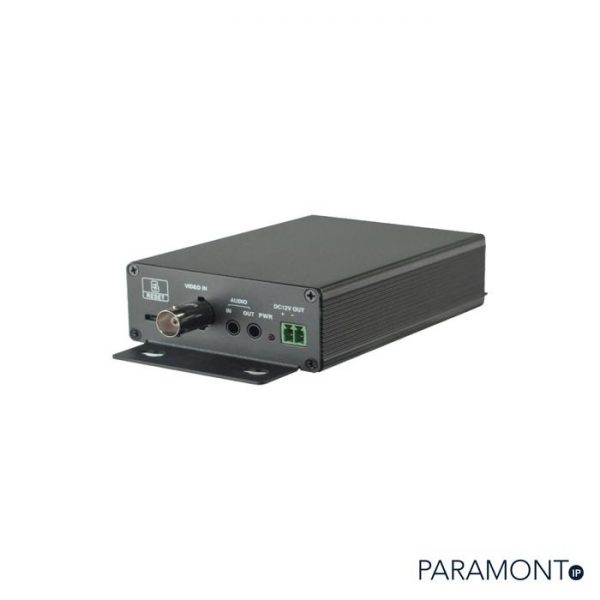

Camera Canada Invidtech PAR-ENCODER1: 4 Megapixel Encoder

Single Channel Encoder with Video loop Out, SD Card Slot, 12VDC/Poe

Mô tả
Sản phẩm liên quan

Single Channel Encoder with Video loop Out, SD Card Slot, 12VDC/Poe

Features

Single Channel encoder
Supports up to 4MP AHD, 2MP TVI/AHD/CVI and CVBS Signals
H.265/H.264/MJPEG Compression
Video Loop-Out – CVBS (to monitor or DVR)/HD Analog (DVR)
Up the Cable (UTC) Control – For PTZs
SD Card Local Storage, 128GB
Audio Input/Output
12VDC/PoE Operation
12VDC Power Output, up to .5A/6W
ONVIF
Smart Analytics
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available to manage your system from your Apple computer

Video & Audio Input
HD Analog Video Input	1 CH, BNC interface ( level : 1.0Vp-p, impedance : 75Ω ), PAL / NTSC self-adaptive, 4MP AHD /CVBS video access; 2MP TVI/AHD/CVBS video access
Audio Input	1 CH: 3.5 mm interface, share with MIC IN interface
Video & Audio Encoding Parameters
Video Compression	H. 264, H.265, MJPEG
H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
Bit Rate Type	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Bit Rate	32Kbps ~ 16Mbps
Resolution	4MP ( 2560×1440 ), 3MP ( 2304×1296 ) / ( 2048×1536 ), 1080P ( 1920×1080 ), 960P ( 1280×960 ), 720P ( 1280×720 ), D1, CIF, 480×240
Multi-streams	4MP ( 1~30fps ) / 3MP ( 1~30fps ) / 1920×1080 ( 1~30fps ) / 960P ( 1~30fps ) / 720P ( 1~30fps ) 720P ( 1~30fps ) / D1 ( 1~30fps ) / CIF ( 1~30fps ) D1 ( 1~30fps ) / 480×240 ( 1~30fps ) / CIF ( 1~30fps )
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI	Yes
Interface
Network	RJ45
Audio	MIC IN × 1, SPK OUT × 1
Storage Card	Up to 128GB
RS485	Yes
Alarm Input	1 CH alarm input
Alarm Output	1 CH alarm output
Local Output	1 CH BNC output
Functions
Remote Monitoring	IE browsing, CMS remote control
Online Connection	Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission
Network Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol	ONVIF, GB-T / 28181-2011
Image Snap	JPEG encoding, image quality adjustable
Smart Analytics	Exception detection, intrusion detection, line crossing detection
Ingress Protection	TVS6000V lightning protection, surge protection
Others
Power Supply	PoE / DC12V
Power Output	Max 12V@0.5A
Power Consumption	< 4W
Working Environment	-4°F ~ 131°F (-20℃ ~ 55℃), 10% ~ 90% ( relative humidity )
Dimensions	5.6″ x 2.9″ x 1.1″ (140 × 74.3 × 29mm) ( W × D × H )
Weight (Net)	220g
Installation	Wall mounting
