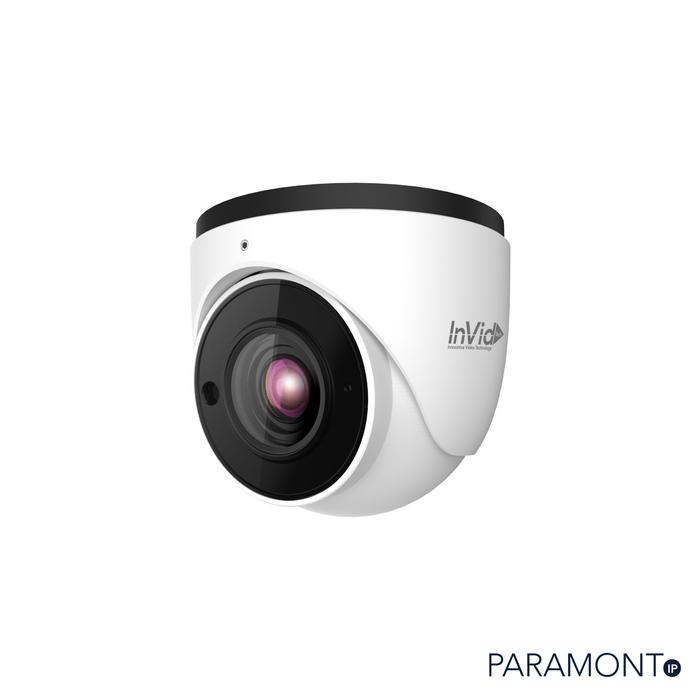

Camera Canada Invidtech PAR-P4TXIRA2812-AI: 4 Megapixel Turret, Motorized Auto-Focus

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8-12mm Motorized A/F Lens, True AI, 164’ IR Range, WDR, Audio Input, Built-in Mic, PoE/12VDC, Facial Rec

Danh mục: Camera Invidtech Canada

Mô tả
Sản phẩm liên quan

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8-12mm Motorized A/F Lens, True AI, 164’ IR Range, WDR, Audio Input, Built-in Mic, PoE/12VDC, Facial Rec

Features

4 Megapixel Resolution
Motorized Auto-Focus 2.8-12mm Lens
Facial Recognition Capable with Compatible NVR
True Day/Night with IR Range up to 164’
True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG Compression
30 FPS Recording and Live
True WDR 120dB
SD Slot for Local Storage: Up to 128GB
Audio Input: Built-in Mic
IP67 Weatherproof
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS)

Free MAC Client

Camera	PAR-P4TXIRA2812-AI
Image Sensor	1 / 3 “CMOS
Image Size	2592 × 1520
Electronic Shutter	1 / 30 s ~ 1 / 100000 s
Iris Type	DC Iris
Min. Illumination	0.005 lux@F1.4,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR
Lens	2.8~12mm@F1.4, motorized zoom lens; Horizontal field of view:94.2°~29.8°
Lens Mount	Φ14
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
Digital NR	3D DNR
Angle Adjustment	Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression	Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile/Main Profile/High Profile
Resolution	4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream	4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ), HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
Sub Stream	720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream	D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate	64 Kbps ~ 8 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen NR,. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Video Output	No
Simultaneous Live View	10
User/Host	Up to 16 Users, 3-Levels, Admin/Advance/Common
Audio	1CH audio input; 1 CH built-in MIC
Storage	Built-in micro SD card slot; up to 128GB
Hardware Reset	Yes
Functions
Remote Monitoring	Web browsing, CMS remote control
Online Connection	Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol	ONVIF / API / SDK
Storage	Network remote storage; micro SD card storage
Smart Alarm	Motion detection, SD card error, SD card full
Intelligent Analytics	Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/ vehicle classification), video tampering detection, scene change detection, face detection, face capture, crowd density detection, human/vehicle counting
General function	Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction
PoE	Yes , IEEE802.3af
IR Distance	164 Foot IR Range
Ingress Protection	IP67
Other
Power Supply	DC12V/PoE
Power Consumption	< 9.5W
Operating Environment	-22°F~140°F (- 30 °C ~ 60 °C) Humidity: less than 95 % (non-condensing)
Dimensions ( mm )	Φ 4.39 x 3.92 (Φ 111.5 × 99.6mm)
Weight ( net )	Approx. 1.48lb (0.67KG)
