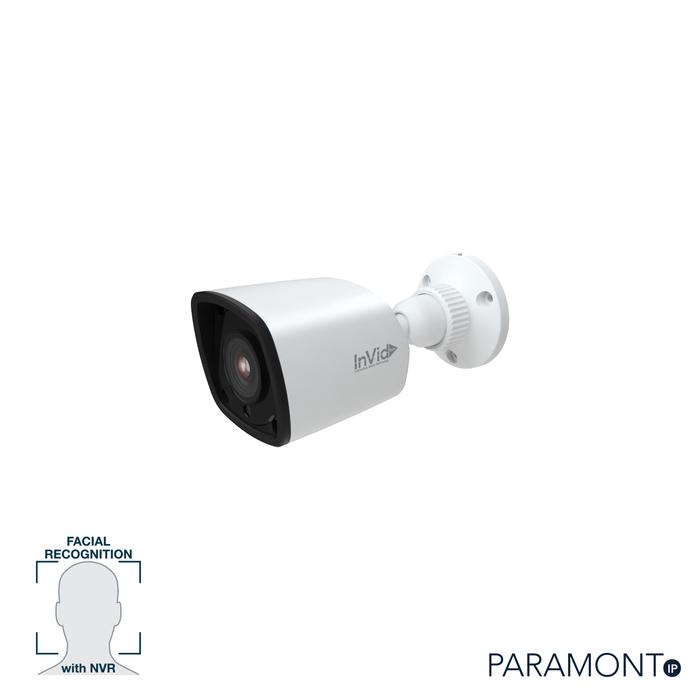

Camera Canada Invidtech PAR-P5BIRF: 5 Megapixel Mini Bullet, Facial Rec

5 Megapixel IP Plug & Play, Outdoor Mini Bullet, 65’ IR Range,

Mô tả
Sản phẩm liên quan

5 Megapixel IP Plug & Play, Outdoor Mini Bullet, 65’ IR Range,
CVBS Output, WDR, Audio Input, PoE/12VDC, Facial Rec

Features

5 Megapixel (2592×1944) Resolution
Facial Recognition Capable with Compatible NVR
Fixed Lens
H.265/H.264/MJPEG Compression
True Day/Night
30 FPS Recording and Live
True WDR 120dB
IR Range up to 65’
CVBS Video Output
Audio Input
IP66 Weather Resistant
12VDC/PoE Operation
ONVIF
Smart Analytics
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform
Free MAC client software available, through the Paramont NVR, to manage your system from your Apple computer

Camera	PAR-P5BIR
Image Sensor	1 / 2.5″CMOS
Image Size	2592 × 1944
Electronic Shutter	1 / 25 s ~ 1 / 100000 s
Iris Type	Fixed Iris
Min. Illumination	0.03 lux @F1.2,AGC ON; 0 lux with IR
Lens	2.8mm Horizontal: 101° Vertical: 77.6° 3.6mm Horizontal: 79° Vertical: 63.4°
Lens Mount	M12
True Day & Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Digital NR	2D / 3D DNR
Angle Adjustment	Any Angle
Video Compression	H.265 / H.264 / MJPEG
H.265 Compression Standard	Main Profile @Leve4.1 High Tier
Resolution	5MP ( 2592×1944 ), 4MP ( 2560×1440 ), 1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main Stream	60Hz : 5MP( 1 ~ 30fps ) / 4MP( 1 ~ 30fps ) / 1080P( 1 ~ 60fps ) /720P( 1 ~ 30fps ) 50Hz : 5MP( 1 ~ 25fps ) / 4MP( 1 ~ 25ps ) /1080P( 1 ~ 50fps ) /720P( 1 ~ 25fps )
Bit Rate	128 Kbps ~ 10 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Audio Compression	G711A / U
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45 x 1 10M/100M Self-Adaption
Audio	MIC IN × 1
Video Output	CVBS video output ( BNC × 1 )
Functions
Remote Monitoring	IE browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol	ONVIF, GB-T/28181-2011
Storage	Network remote storage
Smart Alarm	Motion alarm
Smart Analysis	Object removal detection, line-crossing detection, intrusion detection, and exception
PoE	Yes
IR Distance	65 Feet
Environmental	IP66
Other
Power Supply	DC12V / PoE
Power Consumption	< 7W
Operating Environment	-30° ~ 122°F (-34° ~ 50°C), 10-90% Humidity
Dimensions ( mm )	Φ2.75 x 6.14 (Φ70 × 156mm)
Weight ( net )	0.79 lb (357g)
Installation	Wall mounting, pendent mounting
