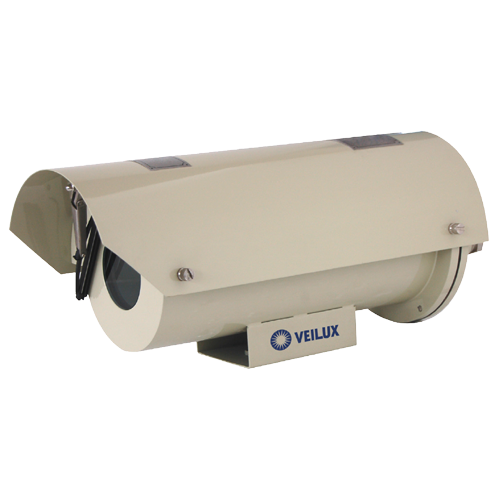

Veilux SVEX-6004C EX Proof Camera Housing

The SVEX-6004 DUST & CORROSION PROOF CAMERA HOUSING new dust proof housing adopts advanced production techniques and matured quality management system to make its quality, performance and appearance a leader in monitoring products. Complete stainless steel structure is used to follow the requirement of IP68, auto heater, sunshield and wiper are optional for different weather conditions. The SVEX-6004 series dust-tight enclosure permits the use of cameras in small particle and dusty environments. The enclosure is constructed from aluminum and is also available in stainless steel for use in corrosive atmospheres. The enclosure is engineered for ease of installation and serviceability.

• SVEX-6004C
• Input Voltage: 220VAC or 24VAC, 50/60Hz
• Input Voltage Range: ±10%
• Working Current: ≤0.5A
• Heater (Optional): Work While it is Under -10°C ± 5°C
• Wiper Power: 220VAC / 50Hz or 24VAC / 50Hz
• Power Consumption: 30W (Heater Included)
• Electric Connection: 2-Core Cable for Camera Power, 4-Core Cable for Lens Control, 4-Core Cable for Wiper Power and Control
• Material: Stainless 304 or 316L IP Level: IP-68
• Inner Dimension: 260 x 70 x 90 (L x W x H) (mm)
• Viewing Window: Thickness 8mm
• Viewing Window Area: φ66mm
• Weight / Shipping Weight: 9Kg / 11Kg
• Cable Outlet: 3
• Cable Outlet Screw Thread Specification: G-3/4”
• Mounting: Electro Motion Pan Tilt, Half-Fixed Pan Tilt, Fixed Bracket
• Air Pressure: 86 ~ -106KPa
• Environmental Temperature: -40°C ~ +60°C
• Relative Humidity: ≤95% RH (+25°C)
