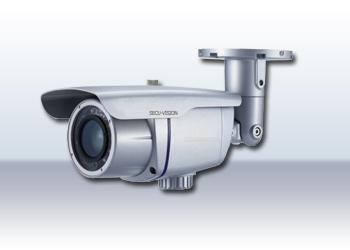

Camera Hàn Quốc SECU-VISION SVNN61164XR

Model
Name

SVNN61164XR

CPU

ARM1176JZF-S
(400 MHz, Instruction cache: 32kbyte, data cache

Flash

2Gbit
Flash memory

SDRAM

2Gbit
DDR3

Image sensor

3.15
Mega 1/2.8″ SONY progressive scan CMOS

Total Pixels

2065(H)
x 1565(V) 3.23 Megapixel

Effective Pixels

2065(H)
x 1553(V) 3.20 Megapixel

S/N Ratio

More
than 50dB

Min. Illumination

0
Lux (IR On)

IR Distance

50M
( Built-in Power LED’s)

Day & Night

ICR

Lens

3~12mm
Motorized Zoom Lens

Video compression

H.264
High Profile@4.0, MJPEG–Image quality: 3 Steps

Resolutions

Up
to 2048 x 1536  3MP

Frame rate

Triple
Stream / 1st stream: 30fps@2048×1536

2nd stream: 30fps@640×480,3rd stream: 30fps@640×480

Video streaming

Triple
stream with H.264/MJPEG, Adjustable frame rate, CBR/VBR in H.264

Pan/Tilt/Zoom

Digital
PTZ

Corridor view

Corridor
view in H.264 (90degree/ 270degree)

Image setting

Brightness,
contrast, Sharpness,Day & Night,Auto White Balance

Auto Exposure,Privacy Mask,DSS, Effect – Color, Mirror/V-Flip, etc.

Audio Streaming

Two
Way

Audio Compression

G.711

Sample Rate

8KHz

Alarm In/Out

In:
1, Out: 1

Security

Password
Protection, User access log, HTTPS encryption

Supported protocol

HTTP,
HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP,

RTSP, RTP, TCP, UDP, ICMP, DHCP

Intelligent video

Object
based Motion detection up with 12x 12 block

Tamper detection with Global scene change and defocus.

Alarm events

File
upload via ftp, E-mail, Notification via email,SD Card.

Video buffer

5MB
pre-alarm and 180 sec (max) post-alarm

Firmware upgrade

Remote
upgrade via network

API

CGI
Interface document, ActiveX Interface(ocx(dll) + document)

Power Source

DC12V/1.5A,
PoE(Power over Ethernet): 802.3af-Optional

Storage

Micro
SD Slot (Built-in)

Power Consumption

Max.
8W with IR

Net Weight

1,300g

LED’s

Power,
Network Connection

Dimension

88mm(W)
x 122mm(H) x 247.3mm(D) incl. Bracket

Operating Temperature

-10
degree~50 degree Celsius(14F~122F)

Storage Temperature

-20
degree~60 degree Celsius(-4F~140F)

Included Software

NVR
C/S (16 Channel), IP Installer (Windows only)
