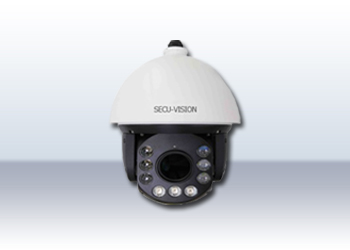

Camera Hàn Quốc SECU-VISION SVNP20255XR

Model Name

SVNP20255XR

Camera

Image sensor

1/2.8” Type “ Exmor R” CMOS Sensor

Day & Night

True Day/Night (ICR)

Environment

 IP66

Optical Zoom

20X

Digital Zoom

12X

Lens

20x AF zoom ( f4.7~94mm )

IR Distance

200M

Min. illumination

0 Lux with IR

Pan / Tilt

Pan: 360 Endless ,   Tilt: -0~90 deg (Auto flip)
PAN/TILT Speed: Preset 250deg/Sec,Manual 0.1~120deg/Sec

WDR

Low/Middle/High

Noise Reduction

2D+3DNR

White Balance

Auto,ATW,Indoor,Outdoor,Onepush WB,Manual WB,Outdoor Auto

Video

Compression

H.264 High Profile @Level5.0 @Level4.1(Other resolutions),  Motion JPEG

Resolutions

Up to 1920 x 1080

Frame rate

H.264 Up to 30fps with 1920×1080
H.264 Up to 30fps with VGA resolution.
MJPEG Up to 30fps with VGA resolution.

Video streaming

Support multi stream with H.264, MJPEG, H.264+H.264+MJPEG Triple
Adjustable frame rate,  VBR/CBR in H.264

Image setting

Day & Night, Auto White Balance, Auto Exposure, Privacy Mask,
D-WDR, 2DNR/3DNR,DSS,Mirror/V-Flip, Corridor-View(in H.264)

Audio

Audio streaming

Two-way, full duplex

Compression

G.711

Sample Rate

8KHZ

Data Rate

64Kbps

Audio input

Microphone input /1 x Line-In (Mono)

Audio output

Line output/ 1 x Line-Out (Mono)

Control

RS-485

1PORT

Network

Security

Password protection/ User access log / HTTPS encryption

Supported protocol

HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP,
RTP, TCP, UDP, ICMP, DHCP,SNMP,IP Filter

System
integration

Intelligent video

Motion detection up to 1920×1080 with 12×12 blocks

Alarm trigger

Motion detection (4 x Sensor in, 2 x Alarm out)

Alarm events

File upload via ftp, E-mail, Notification via Email, FTP and TCP

Video buffer

5MB pre-alarm and post-alarm-180sec

Recording

Save to MicroSD/SDHC card with event mode and continuous mode

Firmware upgrade

Remote upgrade via network

API

CGI Interface document,ActiveX Interface(ocx(dll) + document)

Physical

RESET Button

1 x Factory Reset Button (SIDE)

Power Source

 AC24V 2.5A

Power Consumption

Normal: 13W, IR ON: MAX 35W(VA)

Weight (Appr.)

4,500g

LED’s

Network Connection

Dimension(mm)

236mm X 399.6

Environment

Operating Temp.

 -25 degree~50 degree Celsius  (-13F~122F)

Storage Temp.

 -30 degree~60 degree Celsius (-22F~140F)

Software

Included Software

NVR C/S (16 Channel), IP Installer (Windows Only)

Package Contents

Network Camera, User Manual, Software CD, External Power Adaptor (optional)
