Switch công nghiệp 12 cổng Ethernet + 4 cổng quang IES6116-4F

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
2.SW-Ring ring network patent technology (Fault recovery time<20ms）
3.Support RSTP, way exchange time<50ms
4.Support WEB configuration
5.Support Port based VLAN and IEEE 802.1Q VLAN
6.Support absolutely and opposite priority, support IEEE802.1P, DSCP priority
7.Store and Forward switching process type
8.Support MAC address auto-learning, auto-aging
9.Support 8K MAC address
10.Support 12.8Gbps backboard bandwidth
11.Support redundancy power supply(12～48VDC)
12.Support 1 channel relay alarm output
13.Operating temperature range from -40 to 75°C
14.DIN rail mounted
15.Metal shell, IP40 protection grade

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol: ARP, ICMP, TCP, DHCP, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system
SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
100M maximum filter speed: 148810pps
Transmit mode: store and forward
System exchange bandwidth: 12.8G
MAC address table: 8K
Memory: 4M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
100M fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm
Console port: debug serial port carry out CLI command
Alarm port: 2 bit terminal block
1 channel relay alarm output
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode:     1310nm, 2/5Km
Single-mode:   1310nm, 20/40/60Km
1550nm, 80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~16)
Power supply indicator: P1, P2
Alarm indicator: Alarm
Power supply
Input Voltage: 24VDC (12~48VDC)
Type of input: 4 bits 7.62mm terminal block
Support DC dual power supply redundancy
Overload current protect: 1.2A
Consumption
No-load consumption: 7.68W@24VDC
Full-load consumption: 9.55W@24VDC
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN rail mounted

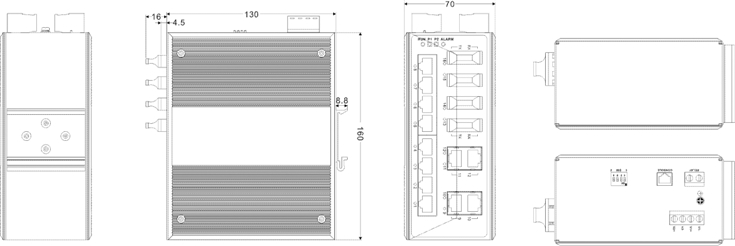

Size (W×H×D): 70mm×160mm×130mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES6116-4F(plus terminal block) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
