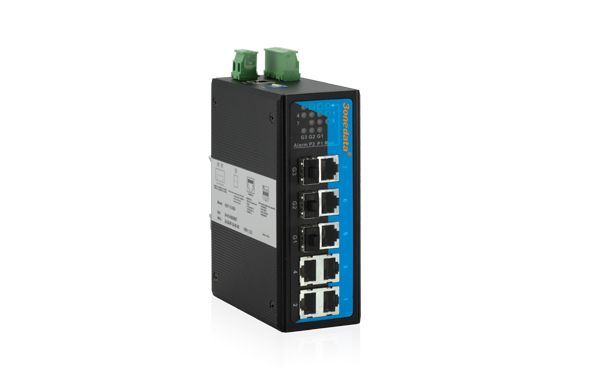

Switch công nghiệp 7 cổng Ethernet + 3 cổng quang SFP IES7110-3GS

Technology
Standard: IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, Telnet, SW-Ring, RSTP, SNMP
Flow control: IEEE802.3x flow control, Back-pressure based flow control
Function
Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system

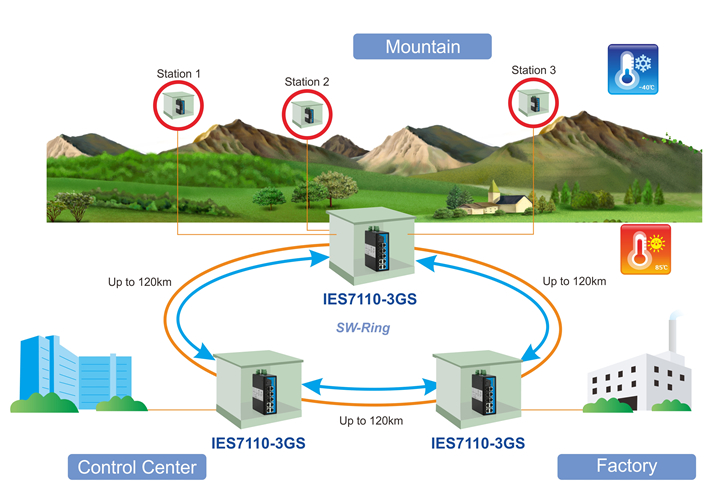

SW-Ring: Support Single, Couple, Chain, Dual homing
Exchange attribute
100M forward speed: 148810pps
1000M forward filter speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 7.4G
MAC address table: 8K
Memory: 1M
Interface
Electric port: RJ45 connector, 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect;
1000M fiber port: 1000Base-FX (SFP port , LC connector)
Console port: debug serial port carry out CLI command
Alarm port: 2 bit 7.62mm terminal block
1 channel relay alarm output
Load ability:1A@24VDC
Transfer distance
Twisted cable: 100M(standard CAT5/CAT5e cable)
LED indicator
Run indicator: Run
Interface indicator: Link (1~7/G1~G3)
Power supply indicator: PWR1, PWR2
Alarm indicator: Alarm
Power supply
Input Voltage: 12～48VDC
Type of input: 4 bits terminal block
Overload current protect: 4.0A(DC) or 5.0A(AC)
Support dual power supply redundancy
Support reverse polarity protection
Working environment
Working temperature: -40～75℃
Storage temperature: -40～85℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protection grade, metal shell
Installation: DIN-Rail or wall mounting optional

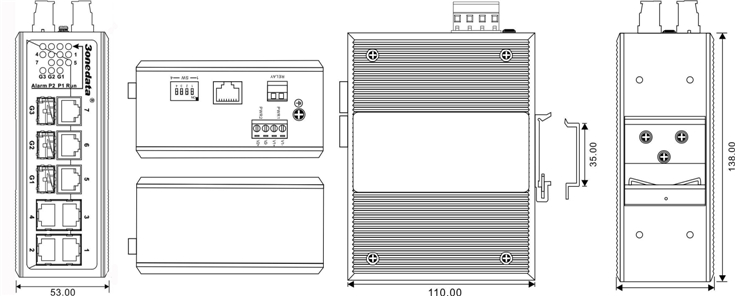

Size (W×H×D): 138mm×53mm×110mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing list
1. 3onedata Industrial Ethernet Switch IES7110-3GS(plus terminal block) × 1
2. User manual × 1
3. Attached CD × 1
4. Certificate of quality × 1
5. Warranty card × 1
6. DB9 to Rj45 console port cable × 1
7. DIN-Rail setting fittings(wall mounting optional)
