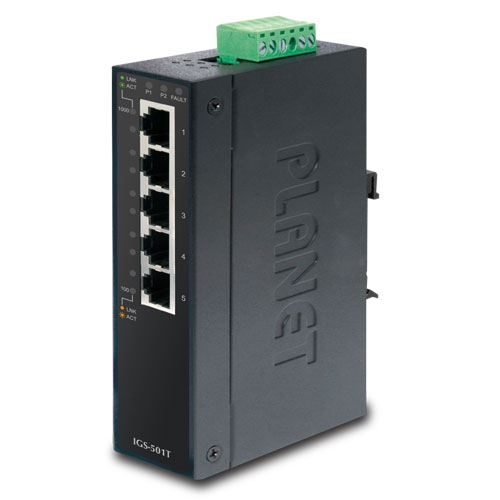

Switch công nghiệp PLANET IGS-501T

5-Port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C operating temperature)

Mã: IGS-501T Danh mục: Switch công nghiệp Planet Từ khóa: IGS-501T

Mô tả
Sản phẩm liên quan

Physical Port

5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

Layer 2 Features

Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (switching fabric): 10Gbps
Integrated address look-up engine, supporting 2K absolute MAC addresses
1M bits on-chip buffer memory
9K Jumbo packet size support
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case / Installation

IP30 metal case
DIN rail and wall-mount design
12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
Supports EFT protection 6000V DC for power line
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature

Slim Type with More Practicability and Convenience
The IGS-501T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch with IP30 metal case consists of 5 10/100/1000Mbps auto negotiation ports and thus, it operates reliably in heavy industrial demanding environments.
Its compact IP30 standard metal case features either DIN rail or wall mount for the efficient use of cabinet space.

Stable Performance under Difficult Environments
The IGS-501T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C coupled with hazardous location certification (Class 1 Division 2), the IGS-501T can be placed in almost any difficult environment. The IGS-501T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.

Plug and Play
All of the RJ-45 copper interfaces in the IGS-501T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

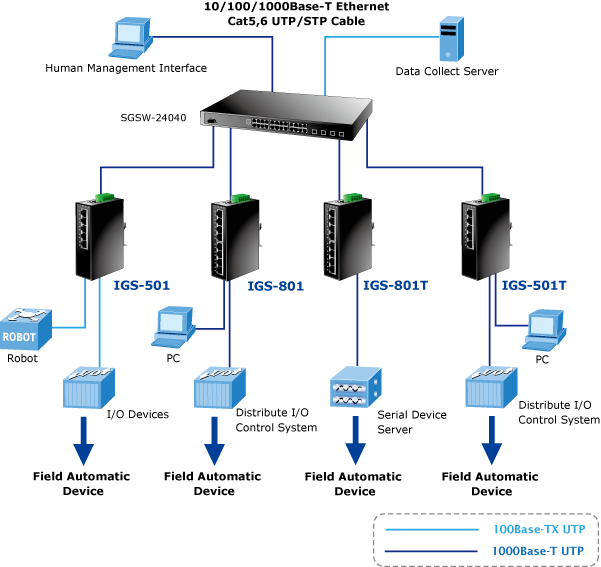

Industrial Area Switch for Data Collection and Forwarding
The IGS-501T comes with a high-performance switch architecture suitable for industrial use. With the 5 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 10Gbps and the 2K MAC address table, the IGS-501T can transfer wire-speed packets without the risk of packet loss.

The flow control function enables the IGS-501T to provide fast and reliable data transfer. The Gigabit port with 9K jumbo frame supported can handle extremely large amounts of data transmission in a secure industrial topology that forwards data to the central control room.
