Switch công nghiệp PLANET IPOE-E302

Industrial 1-Port 802.3bt PoE++ to 2-Port 802.3at Gigabit PoE Extender

Mã: IPOE-E302 Danh mục: Switch công nghiệp Planet Từ khóa: IPOE-E302

Mô tả
Sản phẩm liên quan

Physical Port

Three 10/100/1000BASE-T Gigabit RJ45 ports

– 1-port data + power input

– 2-port data + power output

Power over Ethernet

1-port data + power input

– Complies with IEEE 802.3bt PoE++ Type 4 standard PD

– Compatible with PoH (Power over HDBASE-T) protocol

– Backward compatible with IEEE 802.3at PoE+ end-span or mid-span PD

– Supports PoE input power up to 95 watts

2-port data + power output

– Complies with IEEE 802.3at Power over Ethernet mid-span PSE

– Up to 2 IEEE 802.3af/802.3at PoE devices powered

– Supports total PoE budget up to 65 watts for 2 PoE output ports

– Auto detects powered device (PD)

Extends the range of PoE to an additional 100 meters (328ft.)
Forwards both Ethernet data and PoE power to remote device

Layer 2 Features

Hardware-based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control, auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 2K absolute MAC addresses
9K jumbo frame support in 1000Mbps duplex mode
Automatic address learning and address aging

Industrial Case and Installation

IP67-rated aluminum case
Wall-mount design
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
No external power cable required for installation
Plug and Play installation

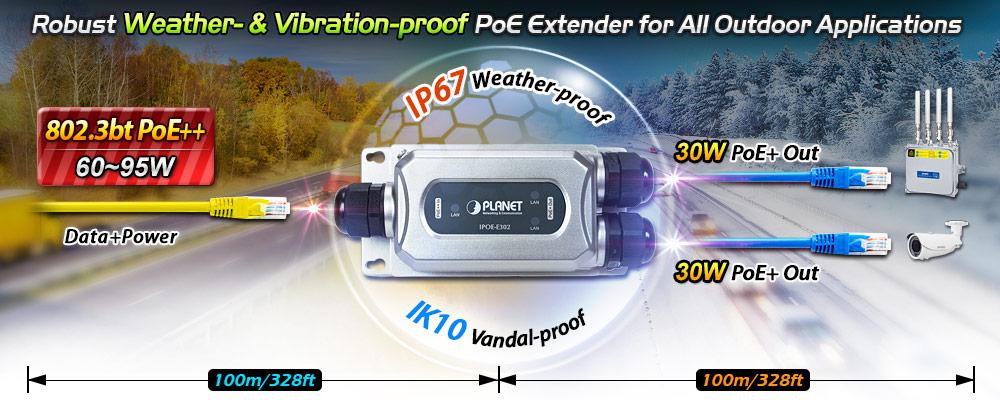

Outdoor 802.3bt PoE++ Solution for Breaking RJ45 100m Limitation

PLANET IPOE-E302 is an industrial IP67-rated 1-port 802.3bt PoE++ to 2-port 802.3bt/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E302 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ or PoH (Power over HDBASE-T) input port and supplies a maximum of 65-watt PoE power budget for 2 PoE output ports, extending both the Gigabit Ethernet Data and 802.3at Power over Ethernet over the UTP cable. The IPOE-E302 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Weather-proof RJ45 Ethernet Connector and Shielded Plug

The IPOE-E302 is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and much more. The IPOE-E302 is equipped with 3-port 10/100/1000BASE-T auto-negotiation RJ45 connectors and 3 waterproof cable glands for direct-attach applications. Assembled with waterproof cable gland, it can make the general RJ45 connector weather-proof and provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally-hardened Design

With industrial-level IP67-rated aluminum case, the IPOE-E302 provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

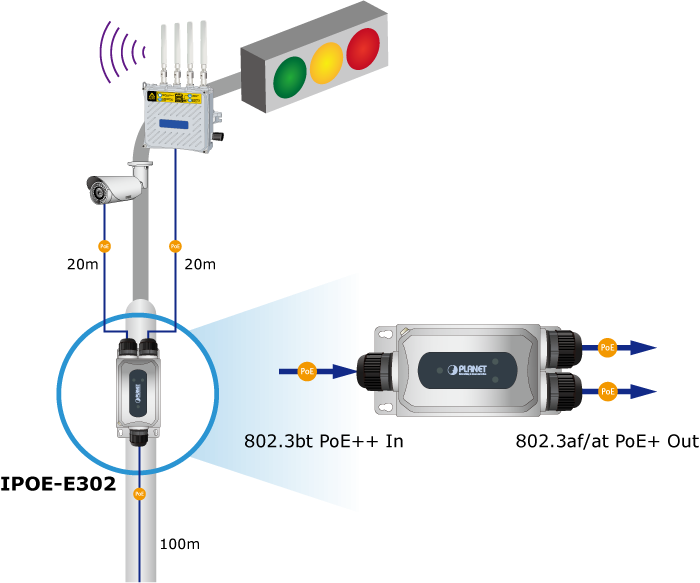

Plug and Play, and Easy Cabling Installation

The IPOE-E302 is quite easy to be installed by simply Plug and Play. It is used between a power source equipment (PSE) and a powered device (PD).

The IPOE-E302 is designed in a compact box containing three RJ45 ports, of which one “PoE++ In” port functions as PD input and the other two “PoE+ Out” ports on the other side function as PSE output. The “PoE OUT” port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously to a remote PD without affecting the data transmission performance. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters.

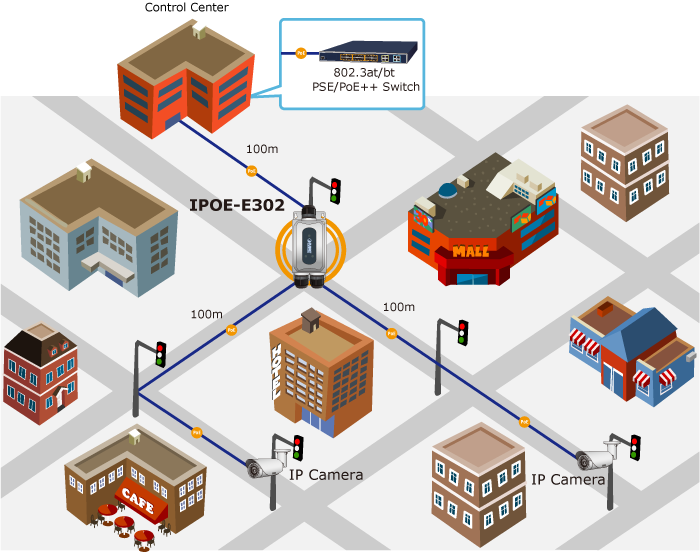

One Power Source for Multi Powered Devices

Today’s IP surveillance technology makes the remote extension of IP cameras easy and the management of monitoring more effective. With the IPOE-E302, users do not have to change their existing network systems. The extender is an ideal solution for the expansion and extension of the current network infrastructures without having to add any cables and other related components and parts.

The IPOE-E302 industrial 1-port 802.3bt PoE to 2-port 802.3at Gigabit PoE Extender, powered by a PSE over standard RJ45 cable, requires very little installation time and does not require any additional setup or programming. The PoE injector port of the PSE supplies IEEE 802.3bt PoE power to the IPOE-E302 and then the IPOE-E302 transmits the power to 2 powered devices that are IEEE 802.3af/at PoE standard compliant, meaning any additional power adapter for IP cameras and wireless access points is not necessary.
