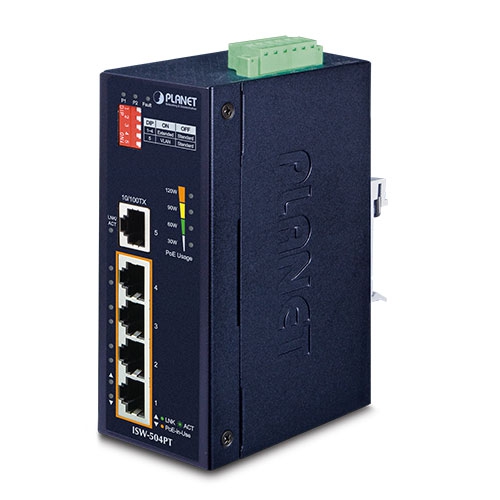

Switch công nghiệp PLANET ISW-504PT

Industrial 5-Port 10/100TX Ethernet Switch with 4-Port 802.3at PoE+

Mã: ISW-504PT Danh mục: Switch công nghiệp Planet Từ khóa: ISW-504PT

Mô tả
Sản phẩm liên quan

Interface

4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Port-1 to Port-4)
1 10/100BASE-TX Fast Ethernet non-PoE RJ45 copper port
One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power)
Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Port-1 to Port-4)

Power over Ethernet

Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 4 ports of IEEE 802.3af/at devices powered
Up to 120-watt PoE budget
Supports PoE power up to 36 watts for each PoE port
Each port supports 54V DC power to PoE powered device
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m in standard mode with 250m in extend mode

Switching

Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
1K MAC address table size
1536 Bytes jumbo frame
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging
Supports CSMA/CD protocol

Industrial Case and Installation

IP40 metal case
DIN-rail, wall-mount design or side wall-mount design
12~48V DC redundant power with polarity reverse protect function
Fault alarm for power input failed
Supports 5KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
4 real-time PoE power usage indicators

Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment

Featuring Plug and Play designed to be installed in heavy industrial demanding environments, the ISW-504PT is a PLANET Industrial-grade, DIN-rail type Unmanaged Fast Ethernet PoE+ Switch with 4 10/100BASE-TX PoE+ ports, and 1 additional Fast Ethernet interface for video uplink.

The ISW-504PT is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from –40 to 75 degrees C in a rugged IP40 metal housing.

Extension of Ethernet Data Transmission Distance

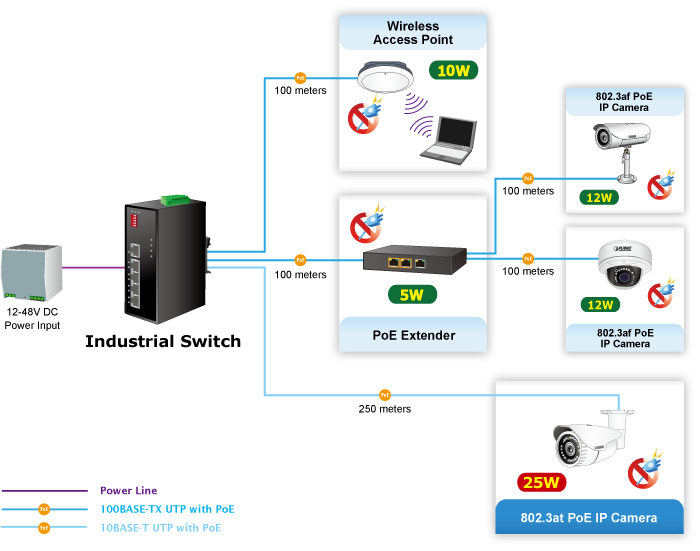

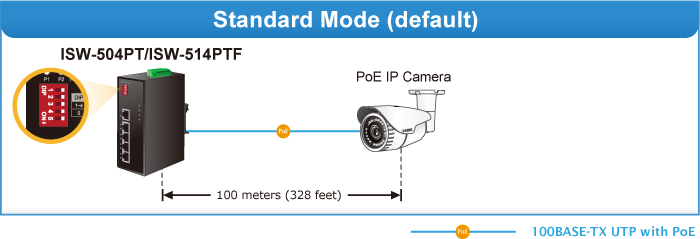

The ISW-504PT has a built-in solid DIP switch providing “Standard”, “VLAN” and “Extend” operation modes. By default, the ISW-504PT operates as a normal IEEE 802.3af/at PoE+ Switch in the “Standard” operation mode.

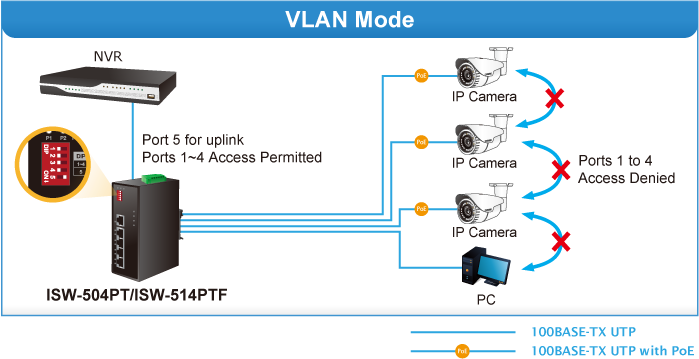

The “VLAN” operation mode features with port-based VLAN function helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.

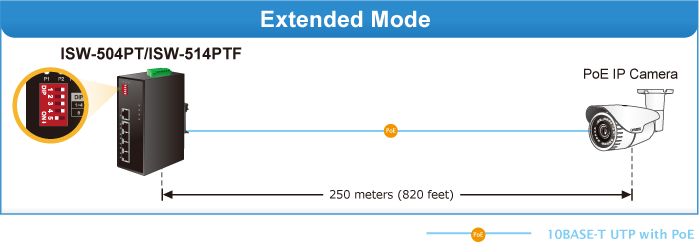

In the “Extend” operation mode, the ISW-504PT operates on a per-port basis at 10Mbps full duplex operation and can support 25-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable.

Convenient and Reliable Power System

To facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the ISW-504PT adopts 12~48V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The ISW-504PT provides an integrated power solution with a wide range of voltages (12~48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~48V DC power supply inputs for high availability applications.

Environmentally Hardened Design

With the IP40 metal industrial case, the ISW-504PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-504PT can be placed in almost any difficult environment.

Robust Protection

The ISW-504PT provides contact discharge of ±5KV DC and air discharge of ±5KV DC for Ethernet ESD protection. It also supports ±5KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Safe and Easy PoE Network Deployment

Carrying both Ethernet data and power simultaneously, the ISW-504PT reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps users to utilize just one Ethernet cable to install and deploy IP camera, wireless AP or VoIP phone more efficiently and cost-effectively.

Industrial-grade PoE+ Switch for Building Automation and Security

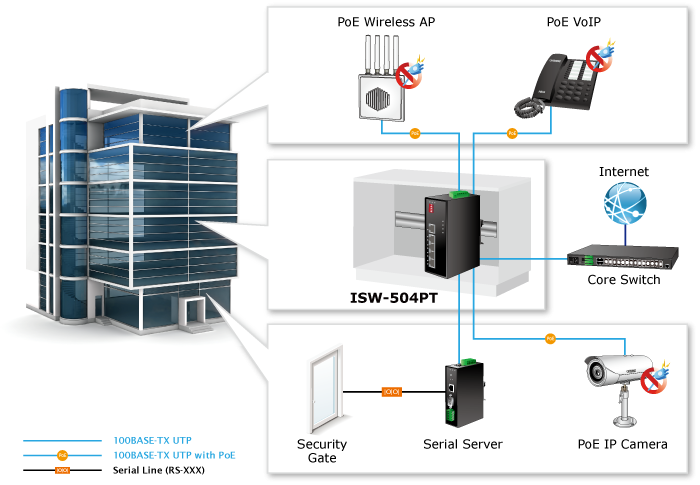

Suitable for buildings where security is strictly enforced, the ISW-504PT, with four Fast Ethernet 802.3at PoE+, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-504PT makes the installation of IP cameras or wireless APs easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System

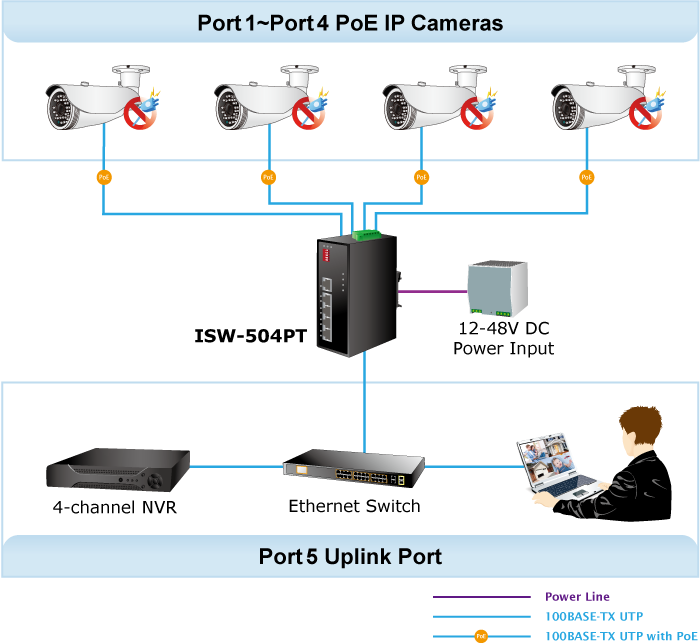

The ISW-504PT provides four 10/100BASE-TX 802.3at PoE+ ports which can offer sufficient PoE power to 4 PoE IP cameras at the same time. In addition, with the 10/100BASE-TX interfaces, the ISW-504PT can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the ISW-504PT facilitates the recorded video files from the 4 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The ISW-504PT undoubtedly brings an ideal secure surveillance system at a lower total cost.
