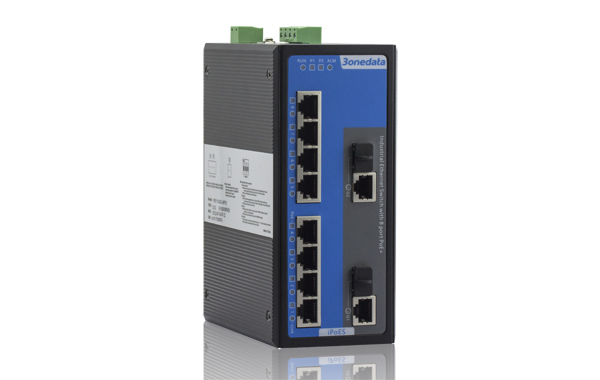

Switch công nghiệp quản lý 4 cổng Ethernet + 4 cổng PoE Ethernet + 2 cổng Combo Gigabit SFP IPS7110-2GC-4T-4POE

Mã: Model : IPS7110-2GC-4T-4POE Danh mục: Switch POE công nghiệp 3Onedata

Mô tả
Sản phẩm liên quan

IPS7110 Series are industrial grade, managed and redundancy Ethernet switches. The series provide 2 ports combo Gigabit SFP slots or 10/100/1000Base-T(X) ports, up to 8 ports Ethernet supports POE function (IEEE 802.3af/at). They provide some kinds of advanced network managed function, like as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Speed control, port mirroring and fault alarm. SW-Ring can bring your Ethernet to intelligent redundancy. The -40~75℃ working temperature, can meet all kinds of Industrial environment requirement and provide the solution of the economy.

1. Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D/W

2. Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W)

3. Supports 2 Gigabit combo ports

4. Up to 8 Fast Ethernet ports with POE function

5. SW-Ring ring network patent technology (Fault recovery time<20ms）

6. Support RSTP, way exchange time<1s

7. Support static multicast, IGMP Snooping and GMRP

8. Support Port based VLAN and IEEE 802.1Q VLAN

9. Support QOS absolutely and opposite priority

10. Support WEB, SNMP and Telnet configuration

11. Support port status display, data update.

12. Industrial grade design, -40-75℃work temperature

13. IP40 protection grade, DIN rail mounted

Technology

Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W

Protocol: ARP, ICMP, TCP, DHCP, DNS, HTTP, SW-Ring, RSTP, SNMP, Telnet

Flow control: IEEE802.3x flow control, back press flow control

POE Standard: IEEE802.3af/at

Function

Switch function: SW-Ring, QOS, 802.1QVLAN, RSTP, SNMP, Port trunking, static multicast filter, port mirroring, bandwidth management, broadcast storm control, port flow statistics, upgrade online, up and download configuration file, user name access system

SW-Ring: Support Single, Couple, Chain, Dual homing

Exchange attribute

100M forward speed: 148810pps

1000M forward speed: 1488100pps

100M maximum filter speed: 148810pps

1000M maximum filter speed: 1488100pps

Transmit mode: store and forward

System exchange bandwidth: 7.6G

MAC address table: 8K

Memory: 1M

Interface

Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect

PoE Pin-out: 1/2(+), 3/6(-)

Gigabit Combo port: 1000Base-X SFP slot or 10/100/1000Base-T(X)

Console port: debug serial port carry out CLI command

Alarm port: 2 bit 7.62mm terminal block

1 channel relay alarm output

Current load capacity 1A@24VDC

Transfer distance

Twisted cable: 100M (standard CAT5/CAT5e cable)

Multi-mode: 1310nm, 2Km

Single-mode: 1310nm, 20/40/60Km

1550nm, 80/100/120Km

LED indicator

Run indicator: Run

Interface indicator: Link (1~8/G1~G2)

POE indicator: 1~4/8

Power supply indicator: P1, P2

Alarm indicator: Alarm

Power supply

Input Voltage: 48VDC (44~57VDC)

Type of input: 4 bits 7.62mm terminal block

Overload current protection: 4.0A (DC)

Support DC dual power supply redundancy

Support reverse connection protection

Consumption

IPS7110-2GC-8POE

No-load consumption：4.3W@48VDC

Full-load consumption(PD)：123.6W@48VDC

IPS7110-2GC-4T-4POE

No-load consumption：8.9W@48VDC

Full-load consumption(PD)：114.4W@48VDC

Single PoE port maximum consumption: 30W@48VDC

Working environment

Working temperature: -40~75℃

Storage temperature: -40~75℃

Relative Humidity: 5%~95 %( no condensation)

Mechanical Structure

Shell: IP40 protect grade, metal shell

Installation: DIN rail mount

Size (W×H×D): 70mm×160mm×130mm

Weight: 1.07kg

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD), Level 3

EN61000-4-4 (EFT), Level 3

EN61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Warranty: 5 years

Packing List

1. Industrial PoE switch (plus terminal block) ×1

2. User manual × 1

3. Documentation and software CD × 1

4. Certificate of quality × 1

5. Warranty card × 1

6. DIN-Rail mounting kit × 1

ips7110-2gc-dim

ips7110-Manual

ips7110-Datasheet

Available Models	Interface			Power Supply
Available Models	Gigabit Ethernet Combo	10/100Base-T(X) POE	10/100Base-T(X)	48VDC
IPS7110-2GC-8POE	2	8	0
IPS7110-2GC-4T-4POE	2	4	4
