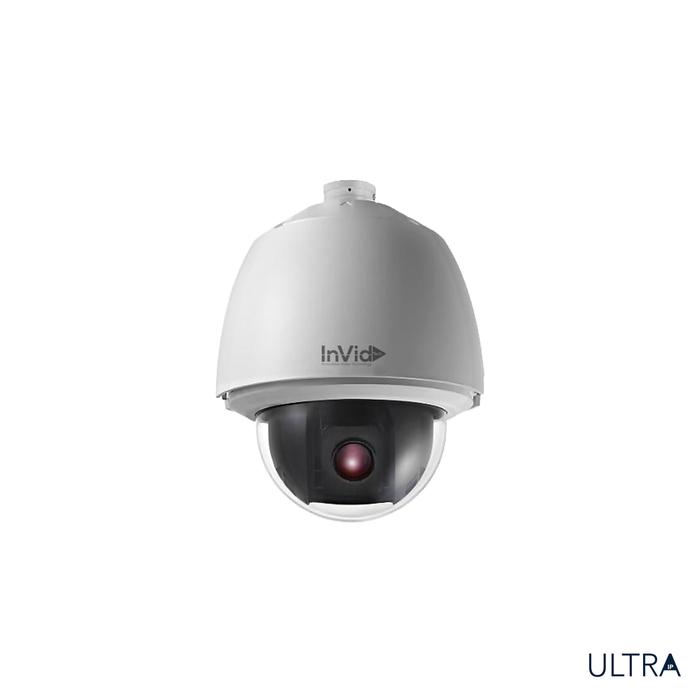

Camera Canada Invidtech ULT-P2PTZ25T: 2 Megapixel PTZ, 25x Zoom

2 Megapixel IP PTZ with Tinted Dome Cover, 25x Zoom, SD Card Slot, AC24V/High-PoE

Mô tả
Sản phẩm liên quan

2 Megapixel IP PTZ with Tinted Dome Cover, 25x Zoom, SD Card Slot, AC24V/High-PoE

Features

2 Megapixel (1920 x 1080) Resolution
H.264/MPEG-4 Compression
25x Optical Zoom
Digital WDR
Audio Input/Output
IP66 Weather Resistant
Operates to -22° F
SD Card Local Storage, 128 GB
24VAC/High-PoE Power Supply
Free MAC client software available
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform

Camera Module	ULT-P2PTZ25T
Image Sensor	1/2.8’’ Progressive Scan CMOS
Min. Illumination	F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux
Max. Image Resolution	1920×1080
Focal Length	5.2-104.0mm, 20x
Digital Zoom	16X
Zoom Speed	Approx.2.7s(Optical Wide~Tele)
Angle of View	61.4-2.9 degree (Wide~Tele)
Min. Working Distance	10~1,500mm (Wide~Tele)
Aperture Range	F1.5-F3.0
Focus Mode	Auto / Semiautomatic / Manual
DWDR	Support
S / N Ratio	52dB
Shutter Time	1-1/10,000s
AGC	Auto / Manual
White Balance	Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night	IR Cut Filter
Privacy Mask	8 privacy masks programmable
Enhancement	3D DNR, BLC
Pan and Tilt
Range	Pan:360° endless; Tilt: -5°~90° (Auto Flip)
Speed	Pan Manual Speed: 0.1°~250°/s, Pan Preset Speed: 300°/s, Tilt Manual Speed: 0.1°~150°/s, Tilt Preset Speed: 200°/s
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task	Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan / Dome reboot / Dome adjust / Aux output
Features	Intrusion detection, Line crossing detection, Audio exception detection, Motion detection
Detection	Support
ROI encoding	2/1
Alarm	Intrusion detection, Line crossing detection, Audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm I/O	Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email linkage
Alarm Trigger	1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1K , ±10%
Alarm Action	1 Audio output interface, line level, impedance: 600
Input/Output
Audio Input	10Base-T / 100Base-TX, RJ45 connector
Audio Outputs	1 Audio output interface, line level, impedance: 600
Network
Ethernet	10Base-T / 100Base-TX, RJ45 connector
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×720), 60Hz: 30fps(1920×1080), 30fps(1280×720)
Sub Stream	50Hz:25fps(704×576), 25fps(352×288), 25fps(320×240), 60Hz:30fps(704×480), 30fps(352×240), 30fps(320×240)
Image Compression	H.264/MJPEG
Audio Compression	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View	Up to 20 users
Mini SD Memory Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures	User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application programming	Open-ended API, support ONVIF, PSIA and CG
Web Browser	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power	24 VAC&POE+, Max.18W
Working Temperature	-22°F ~ 149°F (-30°C ~ 65°C)
Humidity	90% or less
Protection Level	IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification	FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions	220×305mm(Outdoor), 183.4×243mm(Indoor), 245×236mm (In-ceiling)
Weight (approx.)	6.61lbs (3kg)
