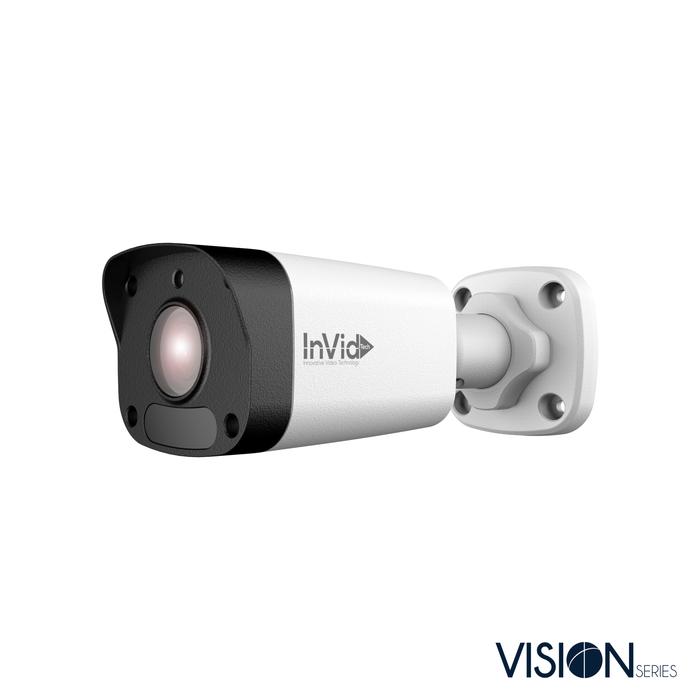

Camera Canada Invidtech VIS-P4BXIRLC: 4 Megapixel Bullet, Fixed Lens

Camera

VIS-P4BXIR4LC

Sensor

1/3″, 4 Megapixel, progressive scan, CMOS

Lens

4.0mm@F2.0, 6.0mm@F2.0

Dori Distance

4.0: 196ft. (Detect), 78ft. (Observe), 39ft. (Recognize), 19ft. (Identify)

6.0: 295ft. (Detect), 118ft. (Observe), 59ft. (Recognize), 29ft. (Identify)

Angle of View(H)

4.0mm: 78.9°, 6.0mm: 49.9°

Angle of VIew(V)

4.0mm: 39.6°, 6.0mm: 27.0°

Angle of View(O)

4.0mm: 97.0°, 6.0mm: 57.7°

Adjustment Angle

Pan: 0-360, Tilt: 0-90, Rotate: 0-360

Shutter

Auto/Manual, 1~1/100000 s

Min. Illumination

Colour: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR on

Digital Noise Reduction

2D/3D DNR

IR Range

Up to 30m (98 ft) IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52 dB

WDR

DWDR

Video

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream:4MP (2592*1520): Max. 20 fps;

Sub Stream:720P (1280*720): Max. 30 fps;

Third Stream:D1 (720×576): Max. 30 fps

HLC

Supported

BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas

Network

Protocols

IPV4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration

ONVIF (Profile S), API

Interface

Network

10M/100M Base-TX Ethernet

General

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 4W

Dimensions (L × W × H)

167.3 x 62.9 x 62.7MM (6.6” x 2.5” x 2.5”)

Weight

0.37 kg (0.81 lb)

Working Environment

-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67
