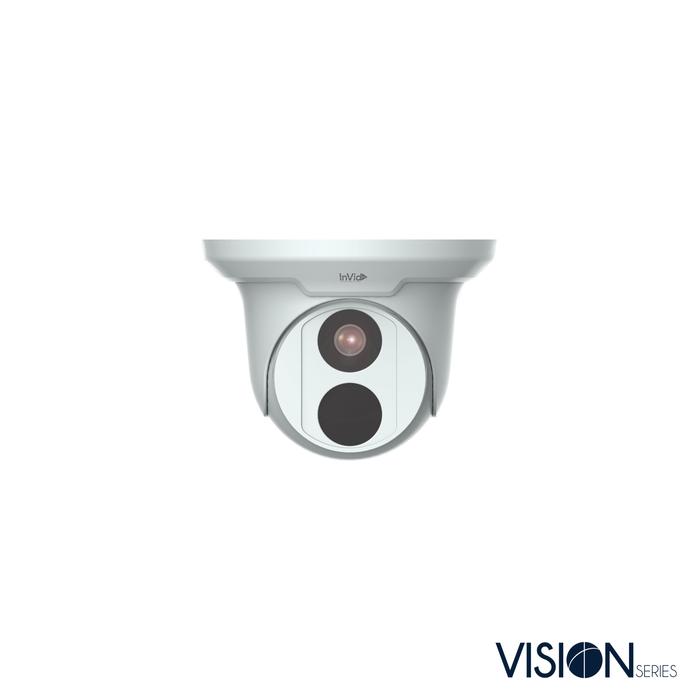

Camera Canada Invidtech VIS-P5TXIR: 5 Megapixel Turret, Fixed Lens

5 Megapixel Starlight IP Plug & Play, Outdoor Turret, 98’ EXIR Range, PoE/DC12V

Mô tả
Sản phẩm liên quan

5 Megapixel Starlight IP Plug & Play, Outdoor Turret, 98’ EXIR Range, PoE/DC12V

Features

5 Megapixel (2592 x 1944) Resolution
Fixed Lens
Ultra H.265/H.265/H.264/MJPEG Compression
True Day/Night
True WDR 120dB
Smart Analytics
Cloud Upgradable
Starlight Illumination
Smart EXIR Range up to 98’
Audio Input: Built-in Mic
Audio Input
IP67 Weather Resistant
12VDC/PoE Operation
ONVIF
Free iOS & Android Apps for Smart Phones & Tablets
Free Central Management Software (CMS) to manage multiple units & sites from a single platform

Camera	VIS-P5TXIR
Sensor	1/2.7″, progressive scan, 5.0 megapixel, CMOS
Lens	2.8mm@F1.6, 4.0mm@F1.6
DORI Distance	2.8mm: 206’ (Detect), 82’ (Observe), 41’ (Recognize), 20’ (Identify)
DORI Distance	4mm: 295’ (Detect), 118’ (Observe), 59’ (Recognize), 29’ (Identify)
Angle of view(H)	2.8mm: 105.3°, 4mm: 79.7°
Angle of View (V)	2.8mm: 69.5°, 4mm: 51.8°
Angle of View (O)	2.8mm: 136.8°, 4mm: 98.1°
Adjustment angle	Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360°
Shutter	Auto/Manual, 1/6~1/100000 s
Minimum Illumination	Colour: 0.005Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>52 dB
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265,H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 5MP(2592 x 1944): Max. 20 fps, 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps; Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.30 fps;
HLC	Supported
BLC	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Suppression	Supported
Sampling Rate	8 KHZ
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration	ONVIF(Profile S), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
General
Power	12 V DC±25%, PoE (IEEE802.3 af), Power consumption: Max 8.9W
Dimensions (Ø x H)	Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight	0.41 kg(0.90 lb)
Operating Conditions	-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection	IP67
