Cost-effective,feature-rich

VNV80E54AR

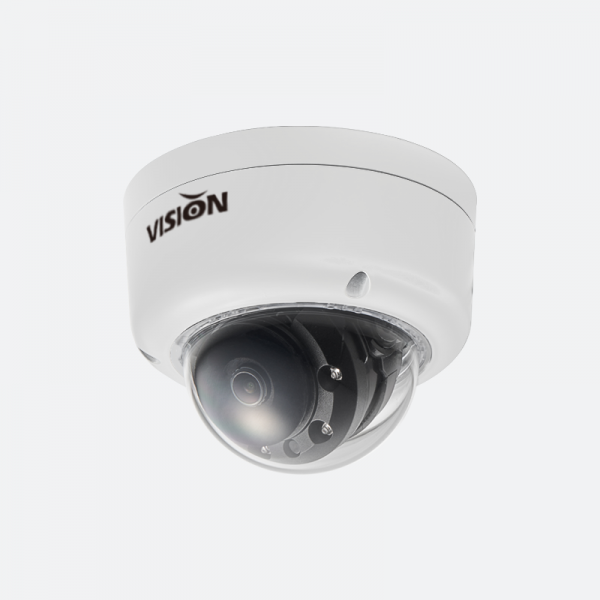

Full HD 2MP Outdoor Mini-Dome IP Camera

• 1920(H)x1080(V) 2MP IPC
• Smart H.264/H.265
• 2.7~12mm Motorized
• WDR (120㏈)
• STARLUX
• 30M Smart IR
• 12VDC/ IEEE802.3af POE

Overview

VNV80E54R is a 2MP Full HD Vandal proof Dome camera designed as cost effective but with a lot of unique and superb user-friendly features incorporated.

Built-in 4x Varifocal motorized lens and Visionohitech’s smart autofocus & zoom control technology drives the camera to automatically analyze and set the ultrafine focal point by one click zoom control remotely from the security center. It is eliminating the big hassle of the focus setting hard work at the installation site.

Empowered multiple core technologies such as Visionhitech’s superior image tuning technology, Starlux, Smart IR, True DN, Ultra smart rate control, Advanced ROI are all combined to ensure the consistent and ultra-clear image quality for day and night and 24/7.

The applied groundbreaking video streaming technology offers unprecedented network efficiencies. By this innovation it reduces the bandwidth by about 80% resulting in a dramatic increment of video transmission speed and a considerable amount of cost-saving out of significantly reduced storage and the consumption of data traffic.

The VNV80E54AR possesses all necessary professional protection technologies to withstand high temperatures and harsh environments.

Please see below for more detailed technical reviews of this camera.

TECHNOLOGY

Quick & Precise Auto-focus & Zoom

Extraordinary image quality with the magnificent focusing technology!

As the camera’s megapixel numbers are rapidly growing higher, it became almost impossible to focus the camera exactly with conventional very-focal lenses adjustable by hand. Furthermore, even the ordinary motorize lens focus method is also facing its limitation by the lack of accuracy.

Visionhitech solved this problem by empowering the camera itself to find and set the exact focal point almost immediately by successfully combining its own Autofocus zoom camera algorithm with the motorized lens. Now customers can view highly accurate megapixel images at even zoomed-in focus without losing its resolution.

With the angle-of-view adjustment and focusing remotely controllable from the control center, it is now no longer required to go through the big hassle of focus setting at the installation.

When the camera’s angle of view needs to be changed later after the installation, it’s adjustable at the center with one click of the mouse by the security manager with no need to deploy people to the site., which can bring tremendous time and cost savings in terms of installation and operation.

TECHNOLOGY

STARLUX technology

See-through the 0.2lux darkness in full Color/’0’lux in BW IR

The Starlux camera comprises of a high sensitive Stavis sensor, high-end ISP, and Visionhitech’s advanced video tuning technologies.

The technology allows the camera to conduct the low light performance by 50% higher than the usual camera and to capture live color video in as much as 0.2 lux darkness. At below 0.2lux, the camera turns to True DN mode that displays B/W image with the IR illumination on automatic.

The lux value of the 0.2 may refer to the darkness level of a few hours later after the sunset. At this range, the human eye may recognize the scene in color and may not need IR illumination. But for conventional cameras with a lack of low light sensitivity, it is the level that the camera cannot sense the color at all, thus necessary to get the help of IR illumination.

It is a significant improvement in that the camera can take a more extended period of the day in a colorful image while turning on B/W IR image only for a shorter period of the day.
The improvement of low light performance in color mode dramatically enhances the ability to acquire forensic evidence in dim light environments.

At below 0.2 lux, the image turns to B/W with IR on helping the camera to see through the total darkness.

TECHNOLOGY

Ultra-Smart Rate Control

A new breathtaking video streaming is born to adopt here. We would like to differentiate it by calling it an “Ultra Smart Rate Control (USRC)”.The efficiency of the data saving rate surpasses the performance of the conventional Smart Bit Rate control (SBC) by around 80% lower in comparison. The flexibility of controlling the bit rate in a scene, enables the camera to produce the most usable high-quality video data while reducing its bandwidth. The area of the interest selectable conducts the process in the highest bit rate and the other area as low as possible, leaving the background images still alive.
This revolutionary video data streaming technology brings an enormous amount of cost savings in the full-HD video network streaming and storage management while utilizing full HD Video at full frame in most of channels.

TECHNOLOGY

Advanced Region of Interest (ROI)

The Advanced Region of interest (ROI) feature greatly improves the usability of the streamed images by increasing the video quality in the areas of interest and by leaving the other areas with less compressed images (The less important background images are still alive) resulting in the image quality in the ROI to be more clear. As a result, the advanced ROI significantly decrease the file size to minimum granting great amount of cost saving in data transmission and storage management.

TECHNOLOGY

Anti-condensation Sensor & Heater

In cold weather, the moisture existing inside the camera sticks on the surface of the camera lens or cover glass by the temperature difference in between. It happens even the density is minimal. This phenomenon is called “condensation”.
The Sensor & Heater solution detects and removes the condensation automatically. When the temperature goes down below the setpoint (e.g., below 0°C), it triggers the heater to dry out the condensation completely.

TECHNOLOGY

Smart Network status indication

This offers a great convenience for the process of the camera installation and maintenance. Customer can identify the status of power and network connection/disconnection simply from the outside look of the camera, eliminating the hassle to dismantle the site after the finish of the installation or to remove the camera to diagnose the network or power failure for a maintenance.

This offers a great convenience for the process of the camera installation and maintenance. Customer can identify the status of power and network connection/disconnection simply from the outside look of the camera, eliminating the hassle to dismantle the site after the finish of the installation or to remove the camera to diagnose the network or power failure for a maintenance.

• RED LED : Power On
• GREEN LED : Network connection and video transmission
• GREEN LED Blinking : Motion Detection

TECHNOLOGY

NDAA Compliant!!

The design and manufacture of the product are of Korean origin and fully comply with the NDAA protocol.

TECHNOLOGY

True Day & Night

ICR filter mechanism is adapted on it to safeguard the True Day & Night image quality. Unlike human eye, the camera sensor can see the infra-red light and distorts the coloration in day light. ICR (Infra-red Cut-off Removal) filter that is mechanically placed on to the sensor blocks the IR light. In night or dark light condition, the IR Cut filter is removed in order that the camera can receive the IR reflected light. The ICR mechanism also contains Focus Shift Compensation filter in it to provide precisely focused images for 24/7.

TECHNOLOGY

Real WDR (120dB)

In many cases, there are scenes of highly contrasted areas coexisted in a scene in the bright sunny day. Normal camera without WDR function artificially forges the whole image as one scene and makes the images of bright areas brighter and the dark area more darker resulting in the image detail within the scene indecipherable.
The Real WDR in the camera allows each aspect of the long exposure (bright area) and short exposure (dark area) in a scene captured accurately.

TECHNOLOGY

Smart IR

Smart IR technology automatically controls the amount of the IR illumination according to the distance of the object, resulting in the camera produces recognizable images at night without the human face being washed out.

TECHNOLOGY

Long-range, low heat Hi-power IR

Built-in Hi-power IR LEDs, combined with smart IR tech and low heat generation tech, provides nighttime IR capture up to 50M and longer IR lifetime.

TECHNOLOGY

Low-latency video to any device

The core with the latest codec on this device makes the process of the massive data in the system as fast as possible and enables to deliver the Ultra-HD video with overwhelmingly fast on the network and to be responsible more quickly to most of challenging environments.

TECHNOLOGY

Triple-streaming w/all codecs at real-time 30 fps

Adaptive higher memory cores enable the camera to perform the real-time video processing capacities to all triple codecs.

It allows the system integrators the maximum flexibility in designing the whole network system based on acquiring practically usable frame-loss prevented live video, live recording, and live mobile streaming.

TECHNOLOGY

Corridor View

Supports the image set up for a suitable lengthy hallway view in the system.

General Features

• 1920(H) x 1080(V) 2MP IPC
• Smart H.264/H.265
• 2.7~12mm Motorized
• Motion Detection
• Tool-Free 3-Axis
• IP67 Waterproof
• IK10 Vandalproof
• ONVIF Conformant, Profile-S
• True Day/Night (ICR)
• WDR (120dB)
• Smart IR
• Long-range, low heat Hi-power IR
• Corridor View
• Low-latency video to any device(ICR)
• Triple-streaming with all codecs at real-time 30 fps

Special Features

• Quick & Precise Autofocus & Zoom
• STARLUX Technology
• Ultra-Smart Rate Control
• Advanced Region of Interest (ROI)
• Anti-condensation Sensor & Heater
• Smart Network status indication
• NDAA Compliant!
