10/100M 5-port industrial Ethernet fiber switch
OVERVIEW

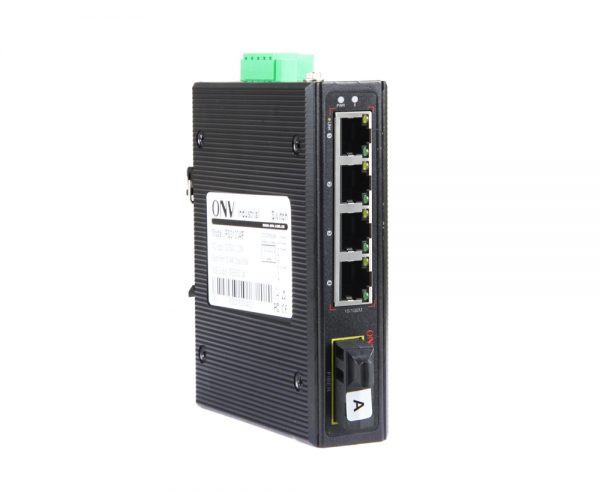

The ONV-IPS31004F is a 10/100M Industrial Ethernet fiber switch independently developed by ONV. It has 4 *10/100M RJ45 ports and 1*155M SC fiber port, and each port can support full line-rate forwarding.
The ONV-IPS31004F industrial Ethernet switch has excellent industrial field environment adaptability (mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level is IP40, it support for dual power supply, low power consumption, no fan cooling technology, MTBF is 35 years, 5 years warranty, unmanaged models, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, rail transit, power industry, mining, petroleum, shipping, metallurgy and green energy construction to form a cost-effective, stable and reliable communication network.
FEATURE
10/100M TP/SC port, fast Ethernet
◇ All series support “10/100M RJ45 port and 155M SC fiber port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Stable and reliable

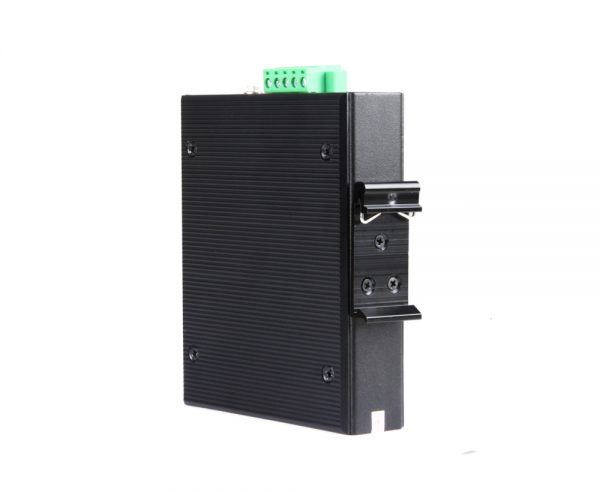

◇ Low power consumption, no fan , aluminum casing.
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link .
DIMENSION
ORDERING INFORMATION
|
Model |
Description |
Recommended Power Supply |
|
ONV-IPS31004F |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1310mm/20km single-mode dual-fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-M |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 850nm/0.5km or 1310nm/2km multi-mode dual fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-A |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1310nm/20km single-mode single-fiber module. It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
ONV-IPS31004F-B |
Unmanaged industrial Ethernet fiber switch with 4*10/100M RJ45 ports and 1*155M SC port. By default, the SC port 1550nm/20km single-mode single-fiber module .It can support DC dual redundant power input and DIN rail mounting. |
12W/24W |
|
Note: Industrial Ethernet switch does not match the power supply. |
||
PACKING LIST
|
PACKING LIST |
CONTENT |
QTY |
UNIT |
|
5-port 10/100M industrial Ethernet fiber switch |
1 |
SET |
|
|
User Guide |
1 |
PC |
|
|
Warranty Card |
1 |
PC |
