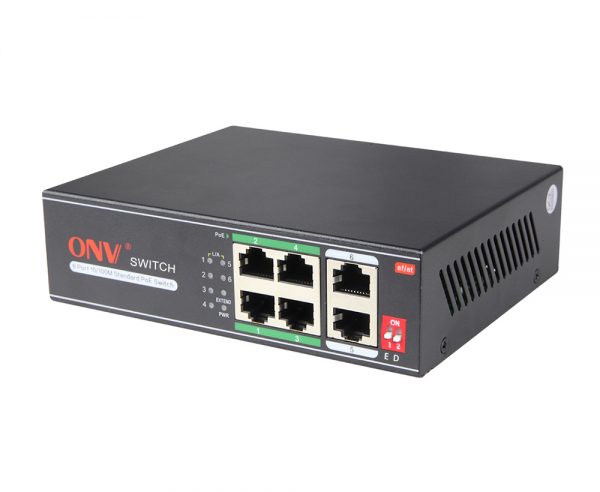

10/100M 6-port AI PoE switch

OVERVIEW

The ONV-H1064PLD series is a 10/100M unmanaged AI PoE switch independently developed by ONV. It has 4*10/100Base-TX RJ45 ports and 2*10/100Base-TX RJ45 ports. Port 1-4 can support IEEE802.3af/at standard PoE. single port PoE power reaches 30W, and the maximum PoE output power is 65W. It can support the watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom through network cable, to meet the network environment that needs high-density PoE power supply, suitable for hotels, campuses, parks, supermarkets, scenic spots, Factory quarters and SMB small and medium-sized enterprises form a cost-effective network.

Unmanaged mode, plug, and play, no configuration, easy to use.

FEATURE

10/100 Mbps access, Dual RJ45 port uplink

◇ 6*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

Intelligent PoE power supply

◇ 4*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

◇ 4*10/100Base-TX PoE ports can support the watchdog function, real-time detection of data communication status.

Innovative function

◇ long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-4 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m; solve the problem of poor transmission caused by line aging.

◇ AI self-healing mode (D): When the switch status is “ON” (default OFF), port 1-4 can support the watchdog function and automatically detects the data communication status in real-time.

◇ Power supply priority mode: the power supply priority function of PoE port is on by default, and the power output of the leftmost PoE port (port 1) is guaranteed in priority, so as to eliminate the potential safety hazard of overload use.

Stable and reliable, Easy to use

◇ Low power consumption, galvanized steel casing, no fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, easy to maintain.

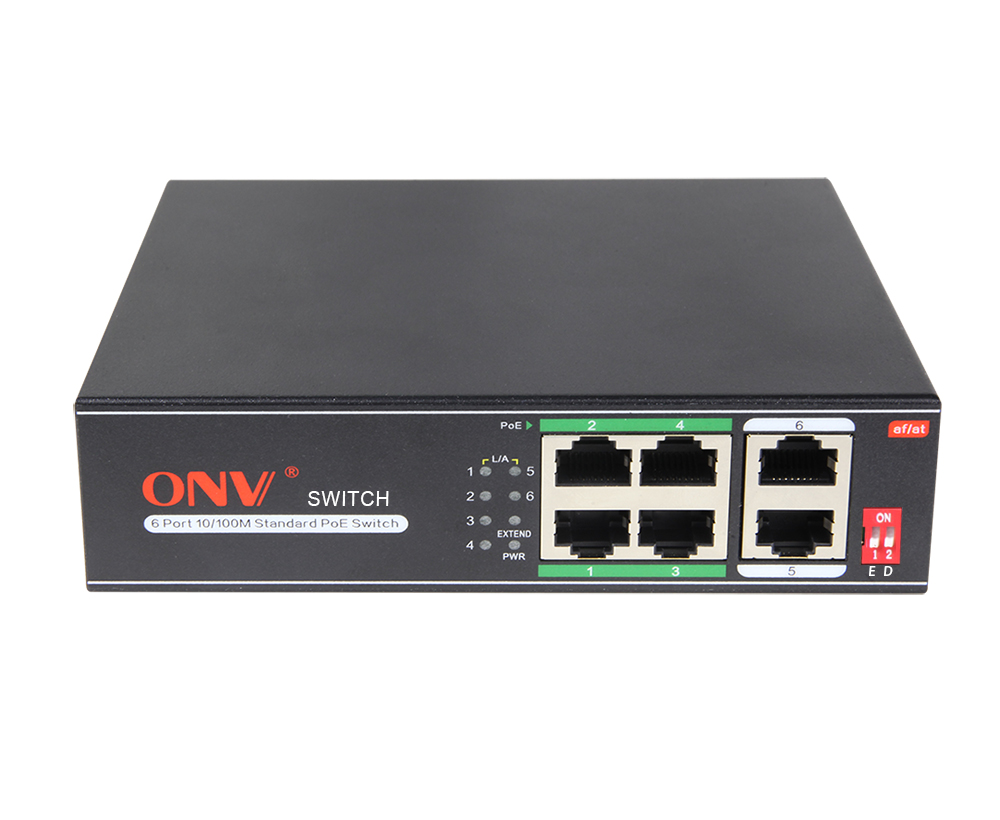

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

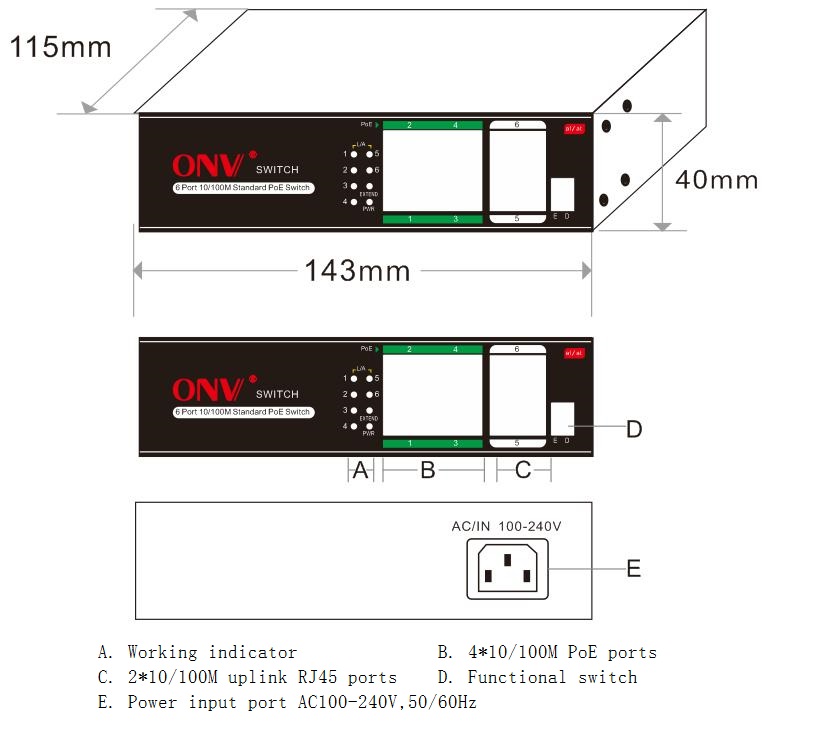

DIMENSION

ORDERING INFORMATION

PACKING LIST
