OVERVIEW

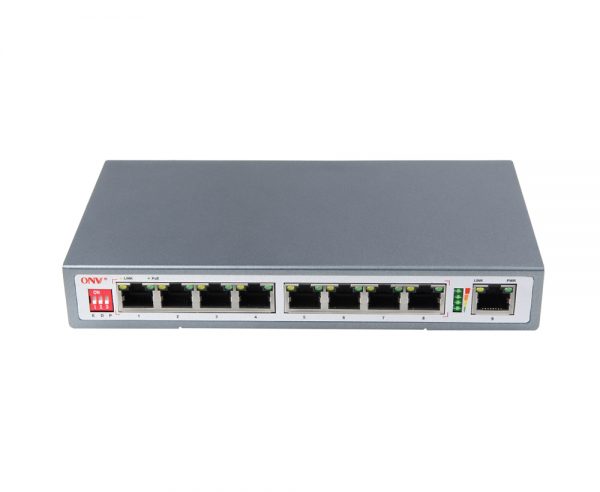

ONV-POE31008PLD is an unmanaged AI PoE switch. It has 8*10/100Base-TX PoE ports and 1* 10/100Base-TX uplink RJ45 port. Port 1-8 can support IEEE 802.3af/at PoE standard , single-port PoE power up to 30W, The maximum PoE output power of the host is 110W. Port 1-8 can support the watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through the network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, small and medium-sized enterprises form a cost-effective network.
Unmanaged mode, plug, and play, no configuration, easy to use.
FEATURE
10/100Mbps Ethernet access
◇ 9*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Intelligent PoE power supply
◇ 8*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
◇ 8*10/100Base-TX PoE ports can support the watchdog function, real-time detection of data communication status.
Innovative function
◇ long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-8 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m; solve the problem of poor transmission caused by line aging.
◇ AI self-healing mode (D): When the switch status is “ON” (default OFF), port 1-8 can support the watchdog function and automatically detects the data communication status in real-time.
◇ Real-time power and power priority mode (P): When the switch status is “ON” (default OFF), the POE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.
Stable and reliable
◇ Low power consumption and low noise, No fan, galvanized steel shell.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, easy to maintain.
◇ The user-friendly panel, it can show the device status through the LED indicator of P, Link, PoE.
DIMENSION
ORDERING INFORMATION
Model |
Description |
ONV-POE31008PLD |
AI PoE switch with 8*10/100M PoE port and 1*10/100M uplink RJ45 port. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, port 1-8 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 110W power supply. |
ONV-POE31008PLD-at |
AI PoE switch with 8*10/100M PoE port and 1*10/100M uplink RJ45 port. Port 1-8 can support IEEE802.3af/at PoE standard. Adjust function switch, port 1-8 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 250W power supply. |
PACKING LIST
PACKING LIST |
CONTENT |
QTY |
UNIT |
9-port 10/100M AI PoE switch |
1 |
SET |
|
AC Power Cable+ Power Adapter |
1 |
SET |
|
Mounting Kits |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
