10/100M 6-port industrial Ethernet switch

OVERVIEW

The ONV-IPS31064 is a 10/100M industrial Ethernet switch independently developed by ONV. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 6*10/100/1000M RJ45 ports. Each port can support full line-rate forwarding.

ONV-IPS31064 industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, It can support dual redundant power supply, low power consumption and no fan cooling technology, MTBF average trouble-free working time up to 35 years, 5-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.

Unmanaged models, plug and play, no configuration, easy to use.

FEATURE

100M Ethernet access, full wire transmission

◇ All series supports “10/100M RJ45 port and dual uplink RJ45 port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Port lightning protection, wide voltage input

◇ Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

◇ Industrial dual power input.

◇ DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.

Stable and reliable

◇ CE, FCC, RoHS.

◇ Low power consumption, No fan, aluminum shell.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

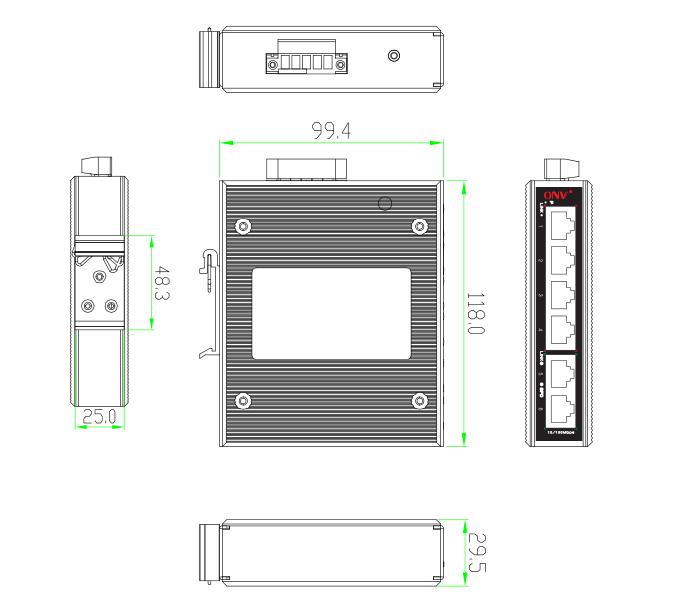

DIMENSION

ORDERING INFORMATION

 PACKING LIST
