OVERVIEW

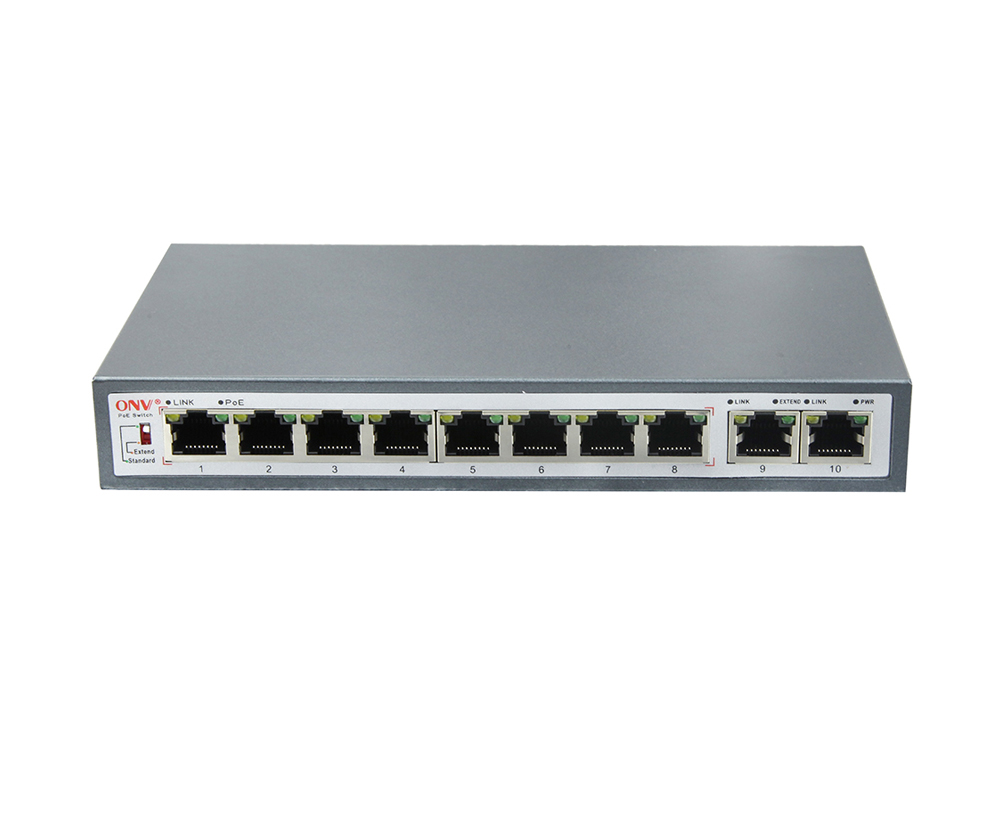

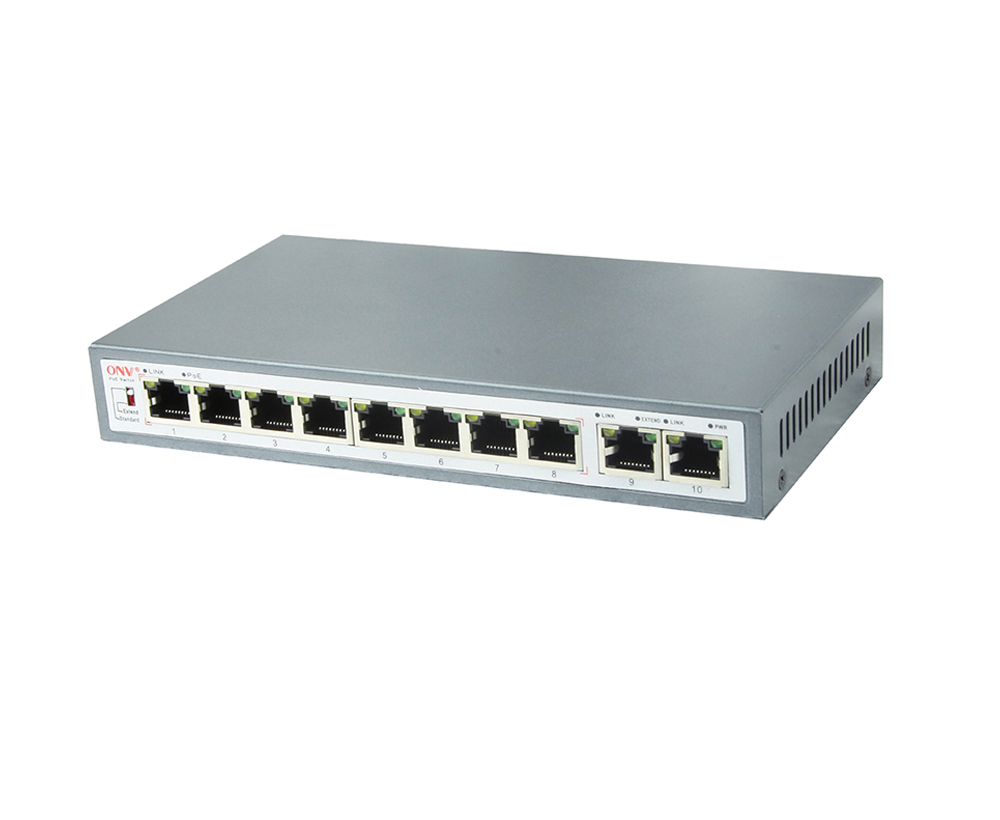

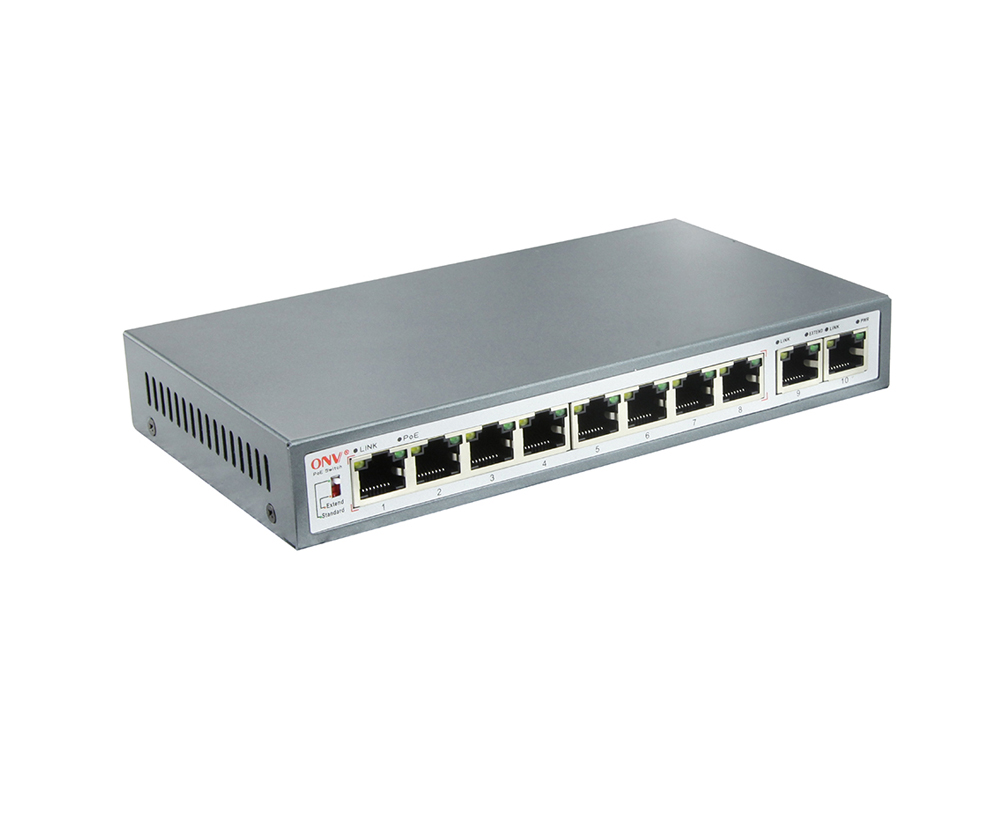

The ONV-POE31108PL series is a 10/100M unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports . Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 110W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
10/100Mbps access, dual RJ45 ports uplink
◇ 10*10/100Base-TX RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Smart PoE power supply function
◇ 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.
Innovative function
◇ Long distance file: switch to “E”, port 1-8 speed is reduced to 10M, using existing twisted pair cable, you can break the limit of transmission of twisted pair 100 meters, the transmission distance can reach 250 meters; On the other hand, it is possible to solve the problem of poor transmission due to lineaging.
◇ Video Surveillance Mode: Opens with long-distance switches. Port 1-8 are isolated from each other but communicate with port 9-10 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
Stable and reliable, easy to operate
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, IP30 galvanized steel casing, No fan mute design.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR,Link, PoE.
DIMENSION
ORDERING INFORMATION
Model |
Description |
ONV-POE31108PL |
Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports ,Port 1-8 can support IEEE 802.3af/at PoE standard, Adjust function switch, 1-8 port VLAN isolation or 10M/250m long distance transmission, external 110W power supply. |
ONV-POE31108PL-at |
Unmanaged PoE switch with 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports ,Port 1-8 can support IEEE 802.3af/at PoE standard, Adjust function switch, 1-8 port VLAN isolation or 10M/250m long distance transmission, external 250W power supply. |
PACKING LIST
PACKING LIST |
CONTENT |
QTY |
UNIT |
10-port 10/100Mbps PoE switch |
1 |
SET |
|
AC Power Cable and Power Adapter |
1 |
SET |
|
Mounting Kits (Hanging Ear ) |
1 |
SET |
|
User Guide |
1 |
PC |
|
Warranty Card |
1 |
PC |
