24V 10/100M 10-port PoE switch

OVERVIEW

The ONV-H2108PL series is a non-standard PoE switch independently developed by ONV. It has 8* 10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 1-8 can support 24V non-standard PoE power supply, single-port PoE power up to 30W. total power is 120W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps access, Dual RJ45 ports

◇ Provides 8*10/100M RJ45 ports and 2*10/100M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply function

◇ 8*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ The maximum PoE output power is 120W, and the maximum PoE output power of single port is 30W.

◇ It can quickly realize the power supply function of POE cable through the two ways of switching directly to non-standard electrical equipment or switch and non-standard separation line.

Easy to use

◇ Plug and play, no configuration, simple and convenient.

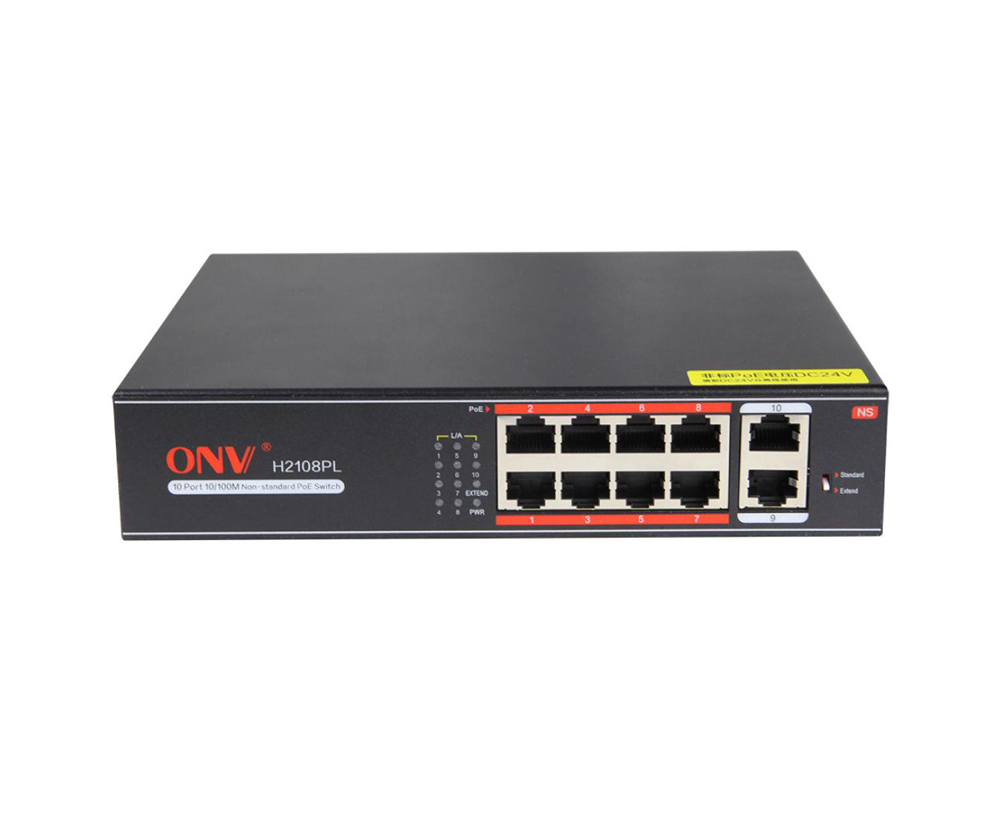

◇ The user-friendly panel, it can show the device status through the LED indicator of Power, L/A.

◇ With function switch, port 1-8 can support 10M/250m long-distance transmission and video surveillance mode when turned on.

Stable and reliable

◇ CCC,CE, FCC, RoHS.

◇ Low power consumption, galvanized steel casing,no fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
