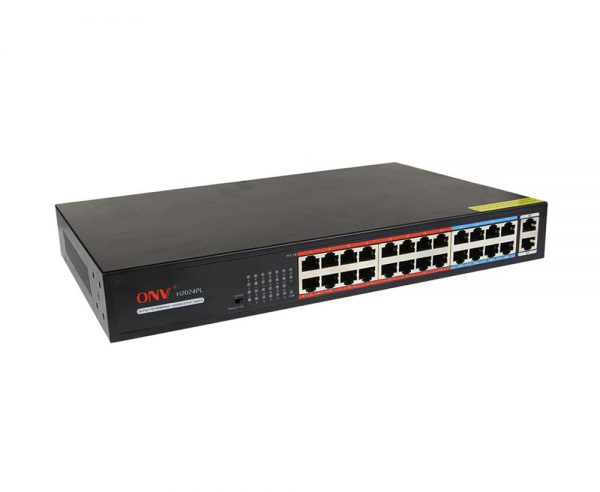

24V gigabit uplink 26-port PoE switch

OVERVIEW

The ONV-H2024PL series is a non-standard PoE switch independently developed by ONV. It has 24* 10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports. Port 1-24 can support 24V non-standard PoE power supply, single-port PoE power up to 30W. total power is 250W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps access, gigabit uplink

◇ Provides 24*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply function

◇ 24*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ The maximum PoE output power is 250W, and the maximum PoE output power of single port is 30W.

◇ It can quickly realize the power supply function of POE cable through the two ways of switching directly to non-standard electrical equipment or switch and non-standard separation line.

Stable and reliable,easy to use

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ Low power consumption, galvanized steel casing,no fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

DIMENSION

ORDERING INFORMATION

PACKING LIST
