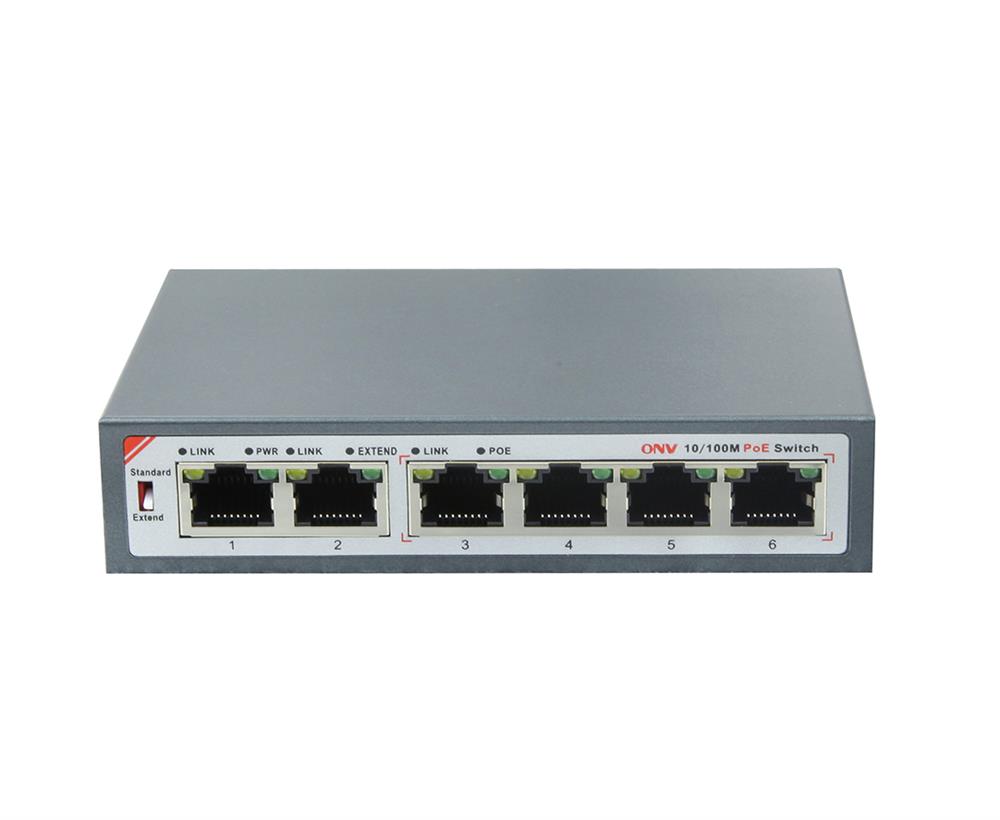

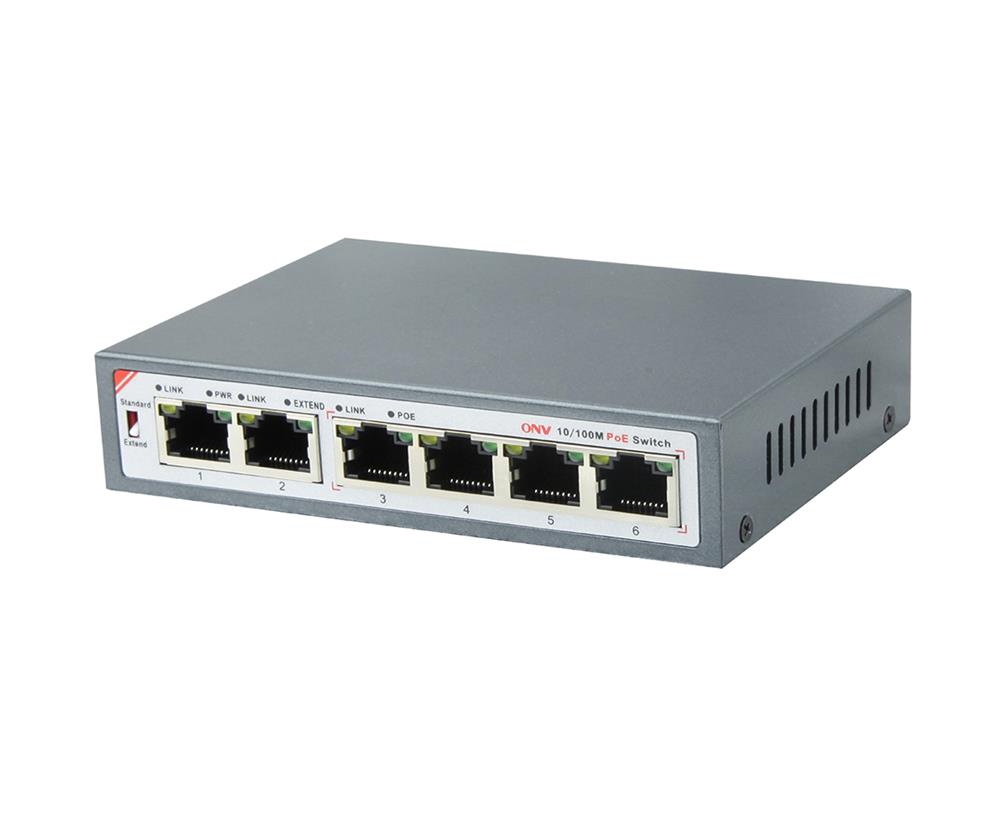

250m transmission 10/100M 6-port PoE switch

OVERVIEW

The ONV-POE31064PL series is an unmanaged PoE switch independently developed by ONV. It has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports. Port 3-6 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged model, plug and play, no configuration, easy to use.

FEATURE

10/100Mbps access,dual RJ45 port uplink

◇ 6*10/100Base-TX RJ45 port and uplink dual RJ45 ports ,which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.

◇ Support non-blocking wire-speed forwarding.

◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Smart PoE function

◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

Innovative features (only with function switch models)

◇ Long-distance file: When turned on, the rate of port 3-6 is reduced to 10M. Using the existing twisted-pair cable, the limit of 100 meters of twisted-pair transmission can be exceeded, and the transmission distance can reach up to 250 meters; on the other hand, Can solve the problem of poor transmission due to aging of the line.

◇ Video Surveillance Mode: Open with long-distance switches. Port 3-6 are isolated from each other but communicate with ports 1-2 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.

Stable and reliable, easy to operate

◇ Low power consumption, galvanized steel casing, no fan.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

◇ CCC,CE, FCC, RoHS.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

DIMENSION

ORDERING INFORMATION

PACKING LIST
