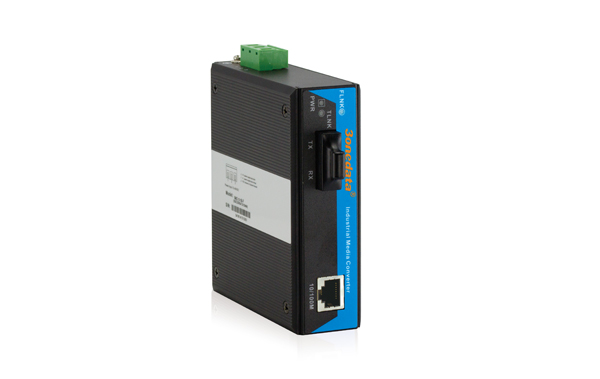

Bộ Chuyển Đổi Quang Điện Công Nghiệp 1 Cổng Quang + 1 Cổng Fast Ethernet IMC101B

Technology
Standards: IEEE802.1 10Base-T, IEEE802.3u, 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate: 10/100BaseT(X) auto connection, F/H duplex or force work mode and MDI/MDI-X connection
Fiber Ports:  100BaseFX ports (SC/ST optional)
Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2Km
Wavelength: 850nm, 1310nm, 1550nm
Typical 100Base-FX:
Multi-mode: 155Mbps, 1310nm, 2Km,
average output≥-18dBm, sensitivity≤-35dBm
Single-mode: 155Mbps, 1310nm, 20Km,
average output≥-12dBm, sensitivity≤-36dBm
Power
Input Voltage: 24VDC (12VDC~48VDC)
Opposite connection protection
Connector: 3 bit 7.62mm terminal block
No load consumption: 1.2W@24VDC
Full load consumption: 1.368W@24VDC
Indicator
Port indicator: TLINK, FLINK
Power indicator: PWR
Mechanical

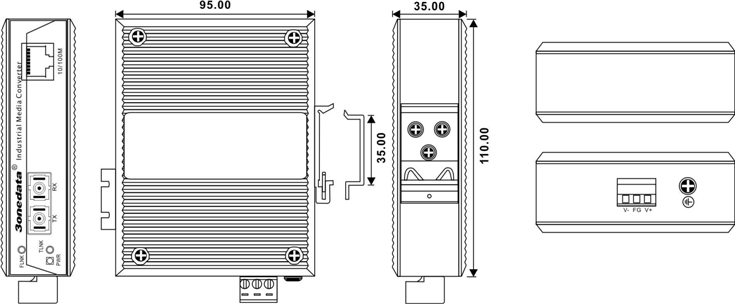

Dimensions: 110mm×35mm×95mm (H×W×D)
Casing: IP30 protection, Metal case
Weight: 340g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI：FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), level 4
EN61000-4-3(RS), level 4
EN61000-4-4(EFT), level 4
EN61000-4-5 (Surge), level 4
EN61000-4-6 (CS), level 4
EN61000-4-8, level 4
EN61000-4-11, level 4
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
Warranty: 5 years
