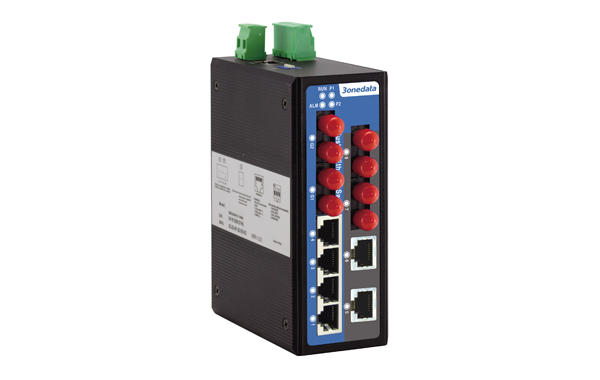

Switch công nghiệp 6 cổng Ethernet + 2 cổng Gigabit quang + 2 cổng quang IES2010-2GF-2F

Technology

Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Flow control: IEEE802.3x flow control, back press flow control

Exchange attribute

100M forward speed: 148810pps

1000M forward speed: 1488100pps

Transmit mode: store and forward

System exchange bandwidth: 7.6G

MAC address table: 8K

Memory: 1Mbit

Interface

RJ45 port: 10/100Base-T(X) auto speed control, Half/full duplex and MDI/MDI-X auto detect

100M optic fiber port: 100Base-FX, SC/ST/FC connector, support single mode (20/40/60/80Km optional), multi mode (2Km), wavelength: 1310nm, 1550nm

Gigabit Fiber Ports: 1000Base-FX (SC/FC/ST)

Console port: RS-232 (RJ45 connector)

Alarm port: 2 bit terminal block

1 channel relay alarm output

Transfer distance

Twisted cable: 100M (standard CAT5/CAT5e cable)

Multi-mode: 1310nm, 2/5Km

Single-mode: 1310nm, 20/40/60Km

1550nm, 80/100/120Km

LED indicator

Run indicator: RUN

Interface indicator: Link (1~8/G1~G2)

Power supply indicator: P1, P2

Alarm indicator: ALARM

Power supply

Input Voltage: 12～48VDC

Type of input: 4 bits terminal block

DC support reverse connection

DC support redundant power supply

Consumption

No-load consumption: 2.4W@24VDC

Full-load consumption: 8.0W@24VDC

Working environment

Working temperature: -40～75℃

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)

Mechanical Structure

Shell: IP40 protect grade, metal shell

Installation: DIN-Rail mounts

Weight: 720g

Size (W×H×D): 53mm×138mm×110mm

Industry Standard

EMI: FCC Part 15, CISPR (EN55022) class A

EMS: EN61000-4-2 (ESD), Level 3

EN61000-4-4 (EFT), Level 3

EN61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE, FCC, RoHS, UL508 (Pending)

Warranty: 5 years

Packing List

1. Industrial Ethernet Switch (plus terminal block) ⅹ 1

2. User manual ⅹ 1

3. Certificate of quality ⅹ 1

4. Warranty card ⅹ 1

5. DIN-Rail mounting kit ⅹ 1
