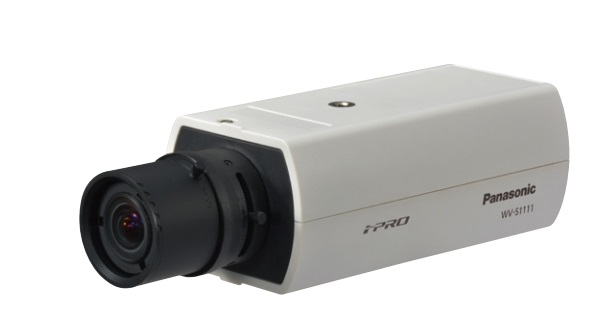

Camera IP 1.3 Megapixel PANASONIC WV-S1111
– Độ phân giải camera ip: 1.3 Megapixel.
Camera IP 1.3 Megapixel PANASONIC WV-S1111
– Cảm biến hình ảnh: Approx. 1/2.8 type MOS image sensor.
– Độ phân giải camera ip: 1.3 Megapixel.
– Tốc độ khung hình: 60 fps.
– Độ nhạy sáng tối thiểu: Color: 0.007 lx, BW: 0.003 lx.
– Chuẩn nén hình ảnh: H.265/H.264/JPEG.
– Nguồn điện:
+ DC power supply: DC12V/460 mA, Approx. 5.6 W;
+ PoE (IEEE802.3af compliant) Device: DC48V/120 mA, Approx.5.8 W (Class 2 device).
Đặc tính kỹ thuật
| Model | WV-S1111 |
| Camera | |
| Image Sensor | Approx. 1/2.8 type MOS image sensor |
| Minimum Illumination | – Color: 0.007 lx, BW: 0.003 lx (F1.4, Maximum shutter: Off (1/30s), AGC: 11) – Color: 0.0005 lx, BW: 0.0002 lx (F1.4, Maximum shutter: max. 16/30s, AGC: 11) |
| White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
| Shutter Speed | 1/30 Fix to 1/10000 Fix *1/30 Fix to 2/120 Fix is available during 30 fps mode only. *1/60 Fix is available during 60 fps mode only. |
| Intelligent Auto | On/ Off |
| Super Dynamic | On/ Off, the level can be set in the range of 0 to 31. |
| Dynamic Range | 144 dB (Super Dynamic: On) |
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. |
| Back light compensation/ High light compensation | BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off) |
| Fog compensation | On/ Off (only when Intelligent auto/ auto contrast adjust: Off) |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. |
| Color/BW (ICR) | Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC) |
| Digital Noise Reduction | The level can be set in the range of 0 to 255 |
| Video Motion Detection (VMD) | On/ Off, 4 areas available |
| Intelligent VMD (i-VMD) | Type 4 *Bundled License |
| Stabilizer | On/ Off (available only in the 30 fps mode) |
| Privacy Zone | On/ Off (up to 8 zones available) |
| Image rotation | 0°/ 90°/ 180°/ 270° |
| Camera Title (OSD) | On/ Off Up to 20 characters (alphanumeric characters, marks) |
| Focus Adjustment | Auto back focus/ Manual |
| Browser GUI | |
| Camera Control | Brightness, AUX On/ Off |
| Audio | Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High Audio Output: On / Off Volume adjustment: Low/ Middle/ High |
| GUI/ Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Resolution H.265/ H.264 JPEG (MJPEG) | – 1.3 Megapixel [16 : 9] (30/60 fps) 1,280 x 720/ 640 x 360/ 320 x 180 – 1.3 Megapixel [4 : 3] (30 fps) 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240 |
| Smart Coding | – Smart Facial Coding: On (Smart Facial Coding*)/ On (Auto VIQS)/ Off *Smart Facial Coding is only available with Stream(1). – GOP (Group of pictures): On (Advanced)*/ On (Mid)/ On (Low)/ Off *On(Advanced) is only available with H.265 |
| Audio Compression | G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps |
| Audio transmission mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | – H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure JPEG recording : Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model *SDHC card, ** SDXC card (except miniSD card and microSD card |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output |
| Input/ Output | |
| Monitor Output (for adjustment) | VBS: 1.0 V [p-p]/ 75 Ω, composite, Pin jack An NTSC or PAL signal can be outputted from camera |
| Audio input | ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced) |
| External I/O Terminals | ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1) |
| General | |
| Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 |
| Power Source and Power Consumption | DC power supply: DC12 V 460 mA, Approx. 5.6 W PoE (IEEE802.3af compliant) Device: DC48V/120 mA, Approx. 5.8 W (Class 2 device) |
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Ambient Operating Humidity | 10 to 90% (no condensation) |
| Dimensions | 75 mm (W) x 57 mm (H) x 146 mm (D) {2-15/16 inches (W) x 2-1/4 inches (H) x 5-3/4 inches (D)} (excluding lens / power cord plug) |
| Mass (approx.) | 350 g { 0.77 ibs.} |
| Finish | Main body: PC/ ABS resin (Sail white) |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
