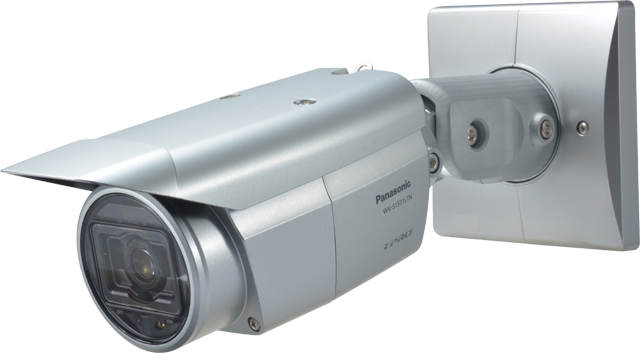

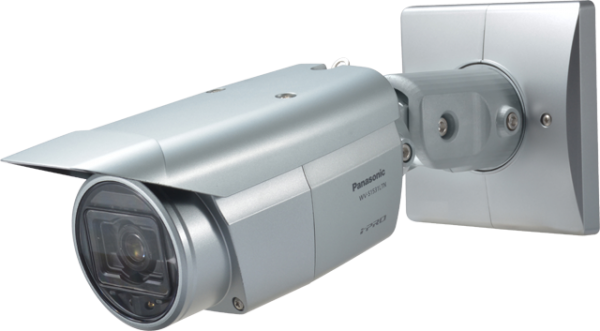

Camera IP Panasonic WV-S1531LTN – IP Camera / Network Camera
Full HD Outdoor Bullet Network Camera with tele lens
This Full HD (1,920 x 1,080) /60 fps Fixed Box Network Camera is based on the concept of “i-PRO EXTREME”.
• Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility.
• Extreme Super Dynamic technologies deliver 144 dB wide dynamic range.
• Color night vision (0.001 to 0.015 lx)
• H.265 compression and Smart coding technology realize high image quality streaming at low bit rates.
• Encryption and alteration detection functions enhanced the security (FIPS 140-2 Level 1 compliant).
• ClearSight Coating is a special coating applied to the surface of the transparent cover that makes it difficult for water droplets to adhere to the lens cover.
|
Indoor / Outdoor
|
Outdoor
|
|
|---|---|---|
|
Image sensor
|
1/3 MOS
|
|
|
Min. Illumination Color (lx)
|
0.015
|
|
|
Min. Illumination B/W (lx)
|
0.008 / 0 (w/IR-LED)
|
|
|
Maximum Resolution
|
2MP – 3MP (1,080p / 2,048 x 1,536)
|
|
|
Maximum FPS
|
60
|
|
|
Super Dynamic
|
Yes
|
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction
|
|
|
Color/BW
|
ICR
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
ABF (Auto back focus)
|
|
|
IR LED
|
Yes
|
|
|
Image Stabilizer
|
Yes
|
|
|
Corridor Mode
|
Yes
|
|
|
Privacy Zone
|
8
|
|
|
iA (Intelligent Auto)
|
Yes
|
|
|
Intelligent VMD (i-VMD)
|
Type4
|
|
|
Focal length
|
f=9.0-21mm, {11/32 – 13/16 inches}, F1.7 Motorized
|
|
|
Zoom ratio
|
2.3x
|
|
|
Angular field of view (16:9)
|
H: 14-34 deg. V: 8-19 deg.
|
|
|
Angular field of view (4:3)
|
H: 12-28 deg. V: 9-21 deg.
|
|
|
Panning Range
|
-180 – +180 deg.
|
|
|
Tilting Range
|
0 – +100 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.265, H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
Yes
|
|
|
Audio Support
|
Yes
|
|
|
Built-in microphone
|
–
|
|
|
Microphone/Line Input
|
Yes
|
|
|
Audio Output
|
Yes
|
|
|
SD memory Card Slot
|
SDXC
|
|
|
External I/O Terminals
|
Yes
|
|
|
Ambient Operating Humidity
|
10-100
|
|
|
Vandal Resistant
|
IK10 (IEC62262)
|
|
|
Water and Dust Resistance
|
IP66 (IEC60529), Type 4X(UL50), NEMA 4X
|
|
|
ClearSight Coating / Rain Wash Coating
|
ClearSight Coating
|
|
|
Dehumidification device
|
Yes
|
|
|
Temperature (degree, Celsius)
|
MAX |
60 / 50 (w/IR-LED)
|
| MIN |
-40
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
140 / 122 (w/IR-LED)
|
| MIN |
-40
|
|
|
Power Source
|
PoE, 12V DC
|
|
|
SSL device certificate
|
Yes
|
|
|
ONVIF Profile
|
S, G, T
|
|
