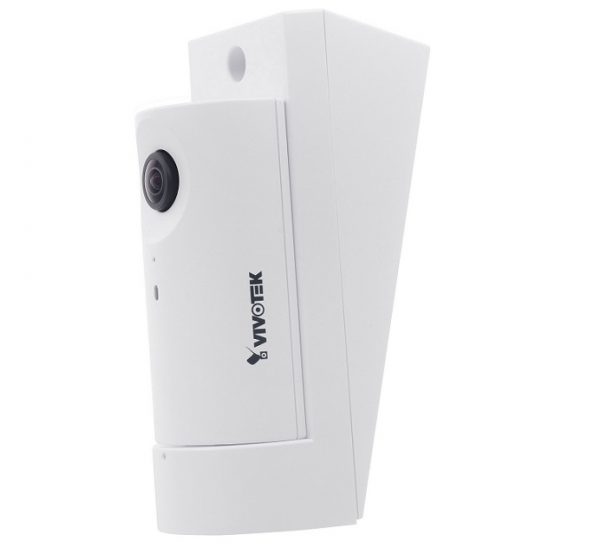

Camera IP 2.0 Megapixel Vivotek CC8160
-Bảo hành: 24 tháng.
Camera IP 2.0 Megapixel Vivotek CC8160
-Cảm biến hình ảnh: 1/2.9 inch CMOS.
-Chuẩn nén hình ảnh: H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Ống kính: 1.66mm (Fixed-focal).
-Góc quan sát: 180º Panoramic View.
-Hỗ trợ Smart Stream II.
-Chức năng chống ngược sáng WDR Enhanced.
-Hỗ trợ âm thanh: 1 chiều.
-Tích hợp Microphone.
-Hỗ trợ hệ điều hành: Microsoft Windows 7/Vista/XP/2000/8.
-Hỗ trợ trình duyệt Web: Mozilla Firefox 7~43 (streaming only), Internet Explorer 7/8/9/10/11.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 2.01W.
-Kích thước: 28 x 50 x 88mm.
-Trọng lượng: 66.7g.
Đặc tính kỹ thuật
| Model | CC8160 |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/2.9 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.66 mm |
| Aperture | F1.95 |
| Field of View | 180° (Horizontal) |
| 100° (Vertical) | |
| 180° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.22 Lux @ F1.95 (Color) |
| Tilt Range | 15 degrees with bracket |
| Pan/tilt/zoom Functionalities | ePTZ: |
| 48x digital zoom (4x on IE plug-in, 12x built in) | |
| Video | |
| Compression | H.264 &MJPEG |
| Maximum Frame Rate | H.264: 30 fps @ 1920×1080 |
| MJPEG: 30 fps @ 1920×1080 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 58.2 dB |
| Dynamic Range | 50.6 dB |
| Video Streaming | Adjustable resolution,quality and bitrate Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate. Time stamp, text overlay, flip & mirror. Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
| Audio | |
| Audio Capability | One-way audio |
| Compression | G.711, G.726 |
| Interface | Buit-in Microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, NTCIP |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA | Line crossing detection, field detection, loitering detection. Available per project request |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server. File upload via HTTP, SMTP, FTP and NAS server |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 2.01 W |
| Dimensions | 28 mm (D) x 50 mm (W) x 88 mm (H) (Body only) |
| 40 mm (D) x 58 mm(W) x 127 mm (H) (Tilt Mount) | |
| Weight | Net: 66.7 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 7/ Vista/ XP/ 2000/ 8 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 7/8/9/10/11 | |
-Bảo hành: 24 tháng.
