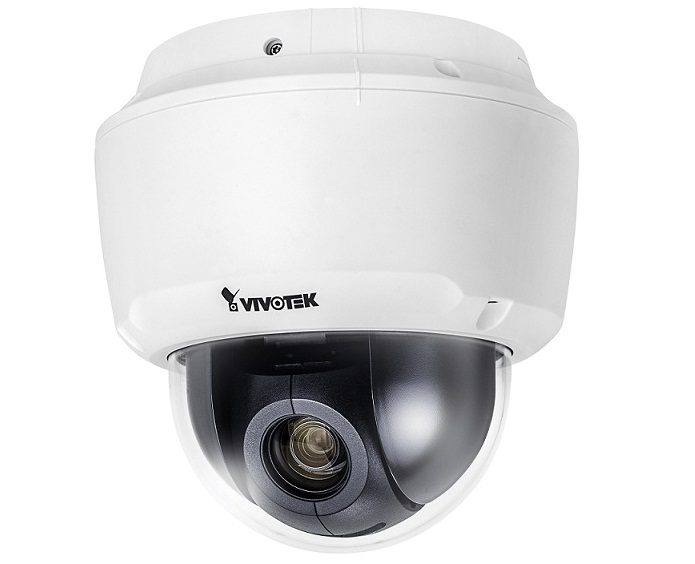

Camera IP Speed Dome 2.0 Megapixel Vivotek SD9161-H
– Độ phân giải camera ip: 2 Megapixel (1920 x 1080).
Camera IP Speed Dome 2.0 Megapixel Vivotek SD9161-H
– Cảm biến hình ảnh: 1/3 inch progressive CMOS.
– Độ phân giải camera ip: 2 Megapixel (1920 x 1080).
– Tốc độ khung hình: 30fps@1920 x 1080.
– Zoom quang: 10X.
– Ống kính: f = 5.1 ~ 51 mm.
– Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
– Xoay ngang: 360° không giới hạn, xoay dọc: 90°.
– Tốc độ: 0.05°~ 360°/s.
– Thiết lập 256 vị trí/ 128 vị trí mỗi vòng.
– Công nghệ chống ngược sáng WDR Pro.
– Hỗ trợ âm thanh.
– Hỗ trợ khe cắm thẻ nhớ MicroSD.
– Nguồn điện: PoE+: 15W/ 24VAC/ 24VDC (chưa bao gồm adapter/PoE).
Specifications
| Model | SD9161-H |
| Camera Features | |
| Image Sensor | 1/3 inch Progressive CMOS |
| Maximum Resolution | 1920×1080 (2MP) |
| Lens Type | 10x Optical Zoom, Auto Focus |
| Focal Length | f= 5.1 ~ 51 mm |
| Aperture | F1.6 ~ F1.8 |
| Auto Iris | DC-Iris |
| Field of View | 4.9° ~ 54° (H); 4° ~ 31° (V); 6.7° ~ 68° (D) |
| Shutter Time | 1/8s ~1/32,000s |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.2 Lux @ F1.6 (Color); 0.01 Lux @ F1.6 (B/W) |
| Day/Night | Removable IR-cut filter for day & night function |
| Pan/ Tilt Speed | 0.05° ~ 360°/sec. |
| Pan Range | 360° endless |
| Tilt Range | 180° |
| Preset Locations | 256 preset locations 128 presets per tour |
| On-board Storage | MicroSD/SDHC/SDXC card slot; Seamless Recording |
| Video | |
| Compression | H.265 & H.264 & MJPEG |
| Maximum Streams | 4 simultaneous streams |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and constant bitrate control; Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24) Scheduled profile settings, EIS, 3DNR, defog |
| Audio | |
| Audio Capability | Two-Way Audio (full duplex) |
| Compression | G.711, G.726 |
| Network | |
| User | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP,ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ45) |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| General | |
| Power Input | 24V DC; 24V AC; IEEE 802.3at PoE Class 4 |
| Power Consumption | <15W |
| Dimensions | Ø 172 x 157 mm |
| Weight | 1043g |
– Sản xuất tại Taiwan.
– Bảo hành 24 tháng.
