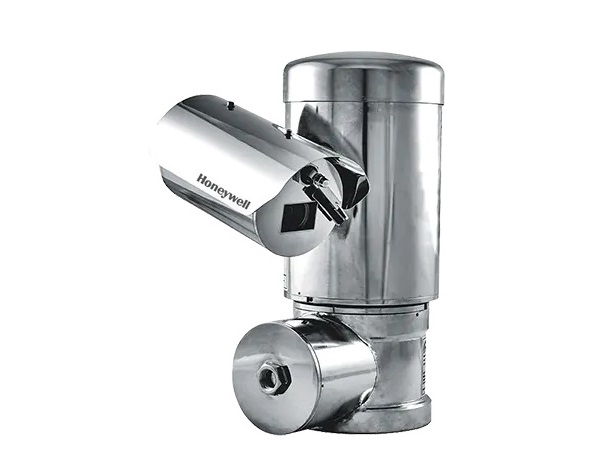

Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0
– Độ phân giải camera ip: 2.0 Megapixel.
Camera IP chống cháy nổ PTZ 2.0 Megapixel HONEYWELL HEPZ302W0
– Cảm biến hình ảnh: 1/2.8-inch Sony Progressive CMOS.
– Độ phân giải camera ip: 2.0 Megapixel.
– Ống kính: 4.5 mm – 135 mm/ F1.6 – F4.4.
– Tốc độ khung hình: Lên đến 60 fps.
– Độ nhạy sáng tối thiểu: 0.005 lux (color), 0.0005 lux (B/W)@ F1.6.
– Chuẩn nén hình ảnh: H.265/ H.264/ MJPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Nguồn điện: 24 VAC, 5A, 50/60 Hz Max 120W.
Đặc tính kỹ thuật
| Model | HEPZ302W0 |
| CAMERA | |
| Image Sensor | 1/2.8-inch Sony Progressive CMOS |
| Optical Zoom | 30x |
| Digital Zoom | 16x |
| Number Of Pixels (H × V) | 1920 × 1080 (1080p) |
| WDR | 120 dB |
| S/N Ratio | ≥ 55 dB (AGC off) |
| Minimum Illumination | 0.0187 lux (color)/0.012 lux (B/W) @ F1.6, 30 IRE, 1/30 0.0547 lux (color)/0.0348 lux (B/W) @ F1.6, 50 IRE, 1/30 0.005 lux (color)/0.0005 lux (B/W) @ F1.6, long exposure |
| Focal Length | 4.5 mm – 135 mm |
| Max Aperture | F1.6 – F4.4 |
| Focus Mode | Manual/Auto/Semiauto/PTZ Trigger |
| Angle Of View | H: 62.35° – 2.53°; V: 37.87° – 1.79° |
| White Balance | Auto/Indoor/Outdoor/ATW/Manual/ Outdoor Auto/Sodium Lamp Auto/ Sodium Lamp |
| Exposure Mode | Iris Priority/Shutter Priority/Gain Priority/Manual |
| Electronic Shutter | 1/1 to 1/30,000 sec |
| Backlight Compensation | BLC/HLC/WDR (120 dB) |
| Electronic Image Stabilization | On/Off |
| Defog | On/Off |
| Day/Night | Auto/Color/BW |
| OPERATION | |
| Pan Travel | 360° endless |
| Tilt Travel | -90° to 90° |
| Manual Speed | 0.1 to 100°/s |
| Presets | 250 |
| Preset Accuracy | ±0.02° |
| Preset Speed | 0.1 to 100°/s |
| PTZ Mode | Tour, Auto Pan |
| Idle Motion | Support Preset, Tour |
| Privacy Masks | 24 |
| Motion Detection | On/Off |
| Image Rotation | Flip |
| Auto Resume After Power Failure | Preset, Tour, Auto |
| Auto Tracking | Yes |
| Video Analytics | ADPRO IntrusionTrace, ADPRO LoiterTrace, Face Detection |
| Event Notification | Record to FTP, Relay output, Email, Preset, Tour, Snapshot |
| Web Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| MECHANICAL | |
| Dimensions | 540 mm × 310 mm × 490 mm (21.3′ × 12.2′ × 19.3′) |
| Weight | Product: 27.5 kg (60.6 lb.); Package: 30.4 kg (67.0 lb.) |
| Housing | AISI 316L Stainless Steel Construction |
| Sunshield | Yes |
| Wiper | Yes |
| Threaded Hole | 3/4-inch NPT |
| Connectors | Power input: 3-pin Network: RJ45 connector Alarm I/O: 1/1 (washer control) Hardware Reset: 1 |
| ELECTRICAL | |
| Power Source | 24VAC, 120W Min |
| Power Consumption | 24 VAC, 5A, 50/60 Hz |
| ENVIRONMENTAL | |
| ATEX | II 2 G Ex d IIC T6 Gb Ta –40°C to 60°C II 2 D Ex tb IIIC T85° C Db Ta –40°C to 60°C |
| IECEx | Ex d IIC T6 Gb Ta –40°C to 60°C Ex tb IIIC T85° C Db Ta –40°C to 60°C |
| UL Listed For USA | Class I, Zone 1, AEx d IIC T6 Zone 21, AEx tb IIIC T85°C Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups F & G |
| UL Listed For Canada | Class I, Zone 1, Ex d IIC T6 Gb Class II, Groups E, F & G Class I, Division 2, Groups A, B, C & D Class II, Division 2, Groups F & G |
| Operating Temperature | -40°C to 60°C (–40°F to 140°F), Cold start –40°C (–40°F) |
| Relative Humidity | 10% to 95%, non-condensing |
| Waterproof Standard | IP66 (EN60529) |
| IP SPECIFICATIONS | |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streaming | Primary Stream: 1080p up to 60/50 fps; 1.3M/720p up to 30/25 fps 2nd Stream: 1080p/1.3M/720p up to 30/25 fps 3rd Stream: D1/CIF up to 30/25 fps |
| Video Resolution | Up to 1080p (1920×1080p) |
| Interface | RJ-45, 10/100 Mbps Ethernet |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF, RS485, Pelco P, Pelco D |
| Security | Multiple user access levels with enhanced password policy, IP filtering, IEEE 802.1x, Strong Digest authentication for Access permission, HTTPS, TLS1.2 only; high strength encrypted algorithm AES-256, SSH/Telnet closed and FTP disabled to reduce surface being attacked, PCI-DSS compliant, built-in cybersecurity hardware chipset |
| Maximum Users Access | 20 users |
| Supported Web Browsers | Internet Explorer® (11.0+), Firefox, Chrome |
| Supported OS | Windows® 7 32-bit/64-bit |
| Communication | ONVIF Profile S and Q |
| REGULATORY | |
| ATEX | EN60079-0; EN60079-1; EN60079-31 |
| IECEx | IEC 60079-0; IEC 60079-1; IEC 60079-31 |
| UL | UL 60079-0 & C22.2 N0. 60950-0:11; UL 60079-1 & C22.2 N0. 60950-1:11; UL 60079-31 & C22.2 N0. 60950-31:12 |
| Emissions | EN55032; ANSI C63.4-2014, ICE 003 Rev6, AS/NZ CISPR 32:2013 |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1; EN60950-22 UL 60950-1; UL 60950-22 IEC60950-1; IEC60950-22 |
| RoHS | EN50581 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
