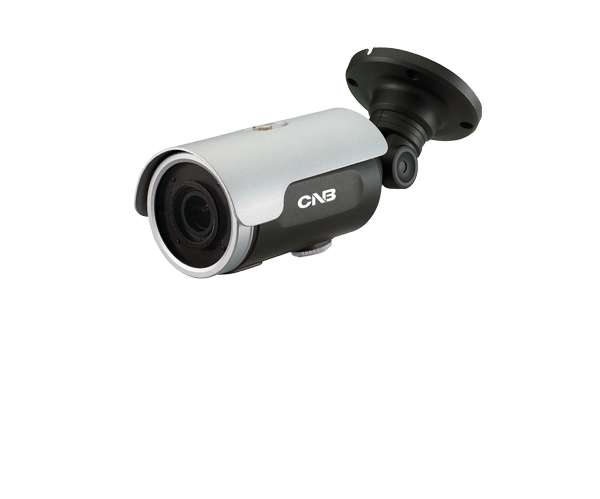

Camera IP CNB NB85-7UR
-
-
Mã sản phẩm:
NB85-7UR
-
Xuất sứ:
Korea
-
Hãng sản xuất:
CNB
-
Bảo hành (Tháng):
12
-
|
Model |
NV85-7UR |
| Camera | 8MP Network IP Bullet Camera Korea |
| Image Sensor | 1/1.7 Inch Progressive scan 8Mega CMOS |
| Effective Pixel | 3840 x 2160 pixels (8M) |
| Sync. System | Progressive scan |
| S/N Ratio | More than 50dB(AGC Off) |
| Lense | 3.6 ~ 10mm Motorized Vari-focal(F 1.5) |
| Angular of View | Diagonal 136˚(W)~ 51˚(T) |
| IR LED | Super IR LED 4ea / Max 30M |
| Min illumination | 0.2Lux (Color), 0 Lux (IR LED On) |
| [Function] | |
| AGC | Auto |
| Flickerless | On/Off |
| Shutter speed | Max. 1/30,000 |
| White Balance | AWB |
| Backlight Compensation | DWDR |
| WDR Range | 70dB |
| DNR | 2DNR , 3DNR Supported |
| Day & Night | Auto(ICR), IR LED |
| PRIVACY | 1 Supported |
| Factory reset | Supported |
| [Interface] | |
| LAN | RJ-45(100/1000BaseT), Auto MDIX |
| Analog Video | 1ch D1 CVBS Output |
| Alarm | 1 Sensor input, 1 Relay output |
| Audio | 1 Mic Line input, 1 Line Output |
| [Network] | |
| Video Compression | Multi-Coded(H.265 / H.264 / MJPEG) |
| Max Resolution | 3840 x 2160@30fps |
| Multi-Profile Streaming | 4 simultaneous video profiles |
| Intelligent Bit-Rate Control | VBR, CBR |
| Mono Upstream | 32Kbps G.726 ADPCM,
64Kbps 16bit μ-law PCM (MIC / Line-in) |
| Mono Downstream | 64Kbps G.71116bit μ-law PCM(Line-out) |
| IP(Internet Protocol) | IPv4 |
| Network Protocol | IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP,
HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS |
| Dynamic IP | Support |
| Security | -User ID & Password protection
-IP address filtering-Digest Authentication -User Access Log |
| Streaming method informations | -RTSP streaming with proprietary formatfor control
-Standard RTSP streaming -HTTP streaming -Onvif Profile-S |
| Intelligent Video | Motion Detection |
| AlarmTriggers | Intelligent Video + Sensor Input |
| Alarm Events | Video file upload(FTP), Still Image(Email), Relay output |
| Alarm Buffer (Audio/Video) | configurable Pre-alarm (5~15 sec) & Post-alarm (10~60 sec) |
| Client Software | NVR2, Smart App(Android, iOS) |
| [General] | |
| Operating Temperature | -10℃~ 50℃ |
| Operating Humidity | 0 ~ 80% RH |
| Power | DC12V, Max. 0.6A, IEEE802.3af PoE |
| Dimensions (Øx H) | Ø99 x 252.7mm |
| Material / IP Ratio | AL, PC / IP66 |
| Weight | Approx. 1.1kg |
