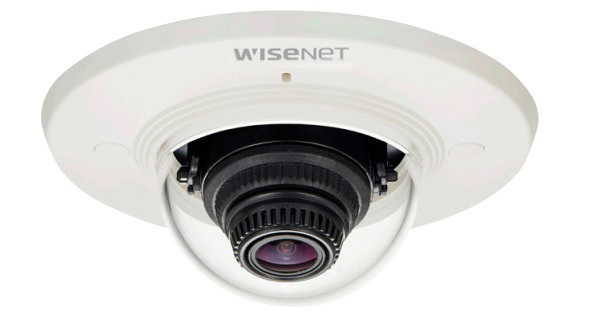

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-6011F/VAP

– Chuẩn nén hình ảnh: H.265 / H.264.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-6011F/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265 / H.264.

– Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Độ phân giải camera ip: 2.0 Megapixel.

– Độ nhạy sáng: Color: 0.055 Lux (F2.0, 1/30sec), B/W: 0.055 Lux (F2.0, 1/30sec).

– Ống kính cố định: 2.8mm (fixed).

– Góc quan sát theo chiều ngang: 112°.

– Góc quan sát theo chiều dọc: 62°.

– Góc quan sát theo phương chéo: 130°.

– Phạm vi Pan/Tilt/Roate: 0˚ ~ 355˚ / 0˚ ~ 47˚ / 0˚ ~ 353˚.

– Chức năng quan sát Ngày và Đêm.

– Chức năng chống ngược sáng WDR (150dB).

– Chức năng giảm nhiễu số SSNRV (2D + 3D).

– Chức năng ổn định hình ảnh số DIS.

– Chức năng chống sương mù Defog.

– Hỗ trợ LDC (Lens Distrortion Correction).

– Hỗ trợ WiseStreamII.

– Chức năng vùng riêng tư Privacy Masking.

– Kết nối mạng: RJ-45 (10/100Base-T).

– Chức năng cấp nguồn qua mạng PoE.

– Công suất tiêu thụ: Tối đa 4.7W.

– Kích thước: Ø98.9 x 129.1mm.

– Trọng lượng: 275g.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2M CMOS
Total Pixels	1,945(H) x 1,109(V) 2.16M
Effective Pixels	1,945(H) x 1,097(V) 2.13M
Scanning System	Progressive Scan
Min. Illumination	Color: 0.055 Lux (F2.0, 1/30sec), B/W: 0.055 Lux (F2.0, 1/30sec)
S / N Ratio	50dB
Video Output	USB: micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio)	2.8mm fixed
Max. Aperture Ratio	F2.0
Angular Field of View	H: 112˚ / V: 62˚ / D: 130˚
Min. Object Distance	0.2m
Focus Control	Manual
Lens Type	Fixed
Mount Type	Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 355° / 0° ~ 47° / 0° ~ 353°
Operational
Camera Title	Off / On (Displayed up to 85 Characters)
	– W/W : English / Numeric / Special Characters
	– China : English / Numeric / Special / Chinese Characters
	– Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White),
	Transparency, Auto Scale by Resolution
Day & Night	Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range	150dB
Contrast Enhancement (DWDR)	SSNR (Off / On)
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (Input from fog detection) / Manual
Motion Detection	Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking	Off / On (32ea, Polygonal) – Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Contrast	Level adjusment
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ	24x, Digital PTZ (Preset, Group)
Flip / Mirror	Off/On, Hallway view: 90º/270º
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps
Smart Codec	Manual mode (Area-based: 5ea)
WiseStreamII	Support
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Built-in MIC
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 profiles)
Audio In	Selectable (Mic in / Line in / Built in mic)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out	Line out (3.5mm stereo mini jack)
Audio Compression Format	G.711 u-law / G.726 selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Uni-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	20 users at unicast mode
Storage	SD/SDHC/SDXC 1slot (up to 256GB)
	– Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
	NAS(Network Attached Storage), Local PC for Instant Recording
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
	Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2) Mac OS X
	10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software	SmartViewer, SSM
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)/ 12VDC
Power Consumption	Max. 4.7W
Color / Material	Module: Black / Metal, Housing: Black / Plastic, Cover: Ivory / Plastic
Dimensions	Ø98.9 x 129.1mm
Weight	275g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.

Camera IP Dome 2.0 Megapixel Hanwha Techwin WISENET XND-6011F/VAP
