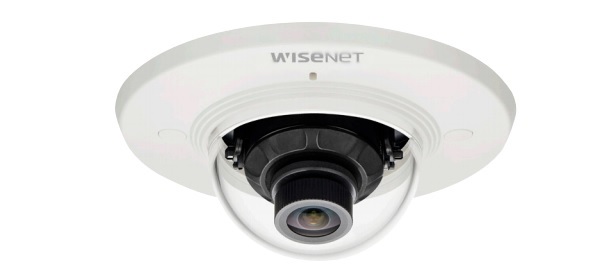

Camera IP Dome 5.0 Megapixel Hanwha Techwin WISENET XND-8020F/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome 5.0 Megapixel Hanwha Techwin WISENET XND-8020F/VAP

– Cảm biến hình ảnh: 1/1.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Ống kính: 3.7mm.

– Zoom số: 24x.

– Chức năng camera quan sát Ngày và Đêm.

– Chức năng chống ngược sáng WDR (120dB).

– Chức năng chống sương mù Defog.

– Chức năng phát hiện chuyển động Motion detection.

– Chức năng điều chỉnh độ lợi AGC.

– Hỗ trợ LDC (Lens distortion correction).

– Ngõ vào Audio: Tích hợp MIC.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

– Công suất tiêu thụ: Tối đa 4.7W.

– Kích thước: Ø98.9 x 129.1mm.

– Trọng lượng: 275g.

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/1.8 inch 6M CMOS
Total Pixels	3,096(H) x 2,094(V)
Effective Pixels	2,616(H) x 1,976(V)
Scanning System	Progressive Scan
Min. Illumination	Color: 0.16 Lux (F1.6, 1/30sec), B/W: 0.16 Lux (F1.6, 1/30sec)
S / N Ratio	50dB
Video Out	USB: Micro USB Type B, 1280 x 720, for Installation
LENS
Focal Length (Zoom Ratio)	3.7mm fixed
Max. Aperture Ratio	F1.6
Angular Field of View	H: 97.5° / V: 71.9° / D: 126.2°
Min. Object Distance	0.4m (1.31ft)
Focus Control	Manual
Lens / Mount Type	Fixed / Board-in Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	0° ~ 355° / 0° ~ 47° / 0° ~ 353°
OPERATIONAL
Camera Title	Off / On (Displayed up to 85 Characters)
	– W/W: English / Numeric / Special Characters
	– China: English / Numeric / Special / Chinese Characters
	– Common: Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White),
	Transparency, Auto Scale by Resolution
Day & Night	Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range	120dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRV (2D + 3D Noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto (input from fog detection) / Manual
Motion Detection	Off / On (8ea, 8Point polygonal zones), Handover
Privacy Masking	Off / On (32ea, polygonal zones)
	– Color : Gray / Green / Red / Blue / Black / White
	– Mosaic
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast	Level Adjusment
LDC (Lens Distortion Correction)	Off / On (5 levels with min / max)
Electronic Shutter Speed	Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
Digital PTZ	24X, Digital PTZ (Preset, Group)
Flip / Mirror	Off / On, Hallway : 90° /270°
Video & Audio Analytics	Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
	Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection,
	Motion detection, Digital auto tracking, Sound classification, People counting,
	Heatmap, Queue management
Alarm Triggers	Motion detection, Video & Audio Analytics, Network disconnect
Alarm Events	File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC /
Alarm Events	SDXC) or NAS recording at event triggers, External output, DPTZ preset
Pixel Counter	Support
NETWORK
Ethernet	RJ-45 (10/100 BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, MJPEG
Resolution	2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: Max. 30fps at all resolutions, MJPEG: Max. 30fps
Smart Codec	Manual Mode (Area-based : 5ea)
WiseStreamII	Support
Video Quality Adjustment	H.265 / H.264 / MJPEG : Target bitrate level control
Bitrate Control Method	H.265 / H.264: CBR or VBR, MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 Profiles)
Audio In	Built-in MIC
Audio Compression Format	G.711 u-law / G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz
Audio Communication	Uni-directional
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) Login Authentication, Digest Login Authentication, IP address
Security	filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 Users at Unicast Mode
Edge Storage	SD/SDHC/SDXC 1slot (up to 256GB)
	– Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
	NAS (Network Attached Storage), Local PC for Instant Recording
Application Programming Interface	ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Non-plugin Web Viewer
	– Supported Browser: Google Chrome, MS Edge, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in Web Viewer
	– Supported Browser: MS Explore 11, Apple Safari 9 (Mac OS X only)
Central Management Software	SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity	-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)
Power Consumption	Max. 4.7W
MECHANICAL
Color / Material	Module: Black / Metal, Housing : Black / Plastic, Cover: Ivory / Plastic
Dimensions	Ø98.9 x 129.1mm
Weight	275g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
