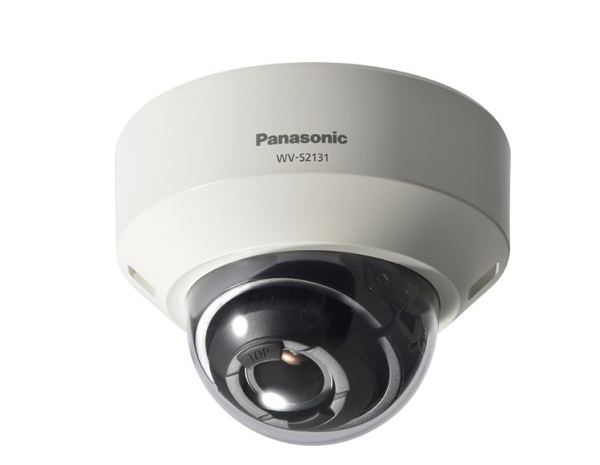

Camera IP Dome 2.0 Megapixel PANASONIC WV-S2131

– Độ phân giải camera ip: 2.0 Megapixel.

Danh mục: Camera Panasonic

Mô tả
Sản phẩm liên quan

Camera IP Dome 2.0 Megapixel PANASONIC WV-S2131

– Cảm biến hình ảnh: Approx. 1/3 type MOS image sensor.

– Độ phân giải camera ip: 2.0 Megapixel.

– Tốc độ khung hình: 60 fps.

– Độ nhạy sáng tối thiểu: Color: 0.012lx, BW: 0.006lx.

– Chuẩn nén hình ảnh: H.265/ H.264/ JPEG (MJPEG).

– Nguồn điện: DC12V/460 mA; PoE DC48V/125 mA.

Đặc tính kỹ thuật

Model	WV-S2131
Camera
Image Sensor	Approx. 1/3 type MOS image sensor
Minimum Illumination	– Color: 0.012 lx, BW: 0.006 lx (F1.6, Maximum shutter: Off (1/30s), AGC: 11) – Color: 0.0008 lx, BW: 0.0004 lx (F1.6, Maximum shutter: max. 16/30s, AGC: 11)
White Balance	AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K)
Shutter Speed	1/30 Fix to 1/10000 Fix 1/30 Fix to 2/120 Fix is available during 30 fps mode only. 1/60 Fix is available during 60 fps mode only.
Intelligent Auto	On/ Off
Super Dynamic	On/ Off, the level can be set in the range of 0 to 31
Dynamic Range	144 dB (Super Dynamic: On)
Adaptive Black Stretch	The level can be set in the range of 0 to 255.
Back light compensation/ High light compensation	BLC (Back light compensation)/ HLC (High light compensation)/ Off (only when Super dynamic/ Intelligent Auto: Off)
Fog compensation	On/ Off (only when Intelligent auto/ auto contrast adjust: Off)
Maximum gain (AGC)	The level can be set in the range of 0 to 11.
Color/BW (ICR)	Off/ On/ Auto1 (Normal)/ Auto2 (IR Light)/ Auto3 (SCC)
Digital Noise Reduction	The level can be set in the range of 0 to 255.
Video Motion Detection (VMD)	On/ Off, 4 areas available
Intelligent VMD (i-VMD)	Type 4 *Bundled License
Stabilizer	On/ Off (available only in the 30 fps mode)
Privacy Zone	On/ Off (up to 8 zones available)
Image rotation	0°/ 90°/ 180°/ 270°
Camera Title (OSD)	On/ Off Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment	Auto back focus/ Manual
Lens
Focal length	2.8 – 10 mm {1/8 inches – 13/32 inches}
Zoom ratio	3.6x (Motorized zoom/ Auto Focus)
Angular Field of View	– [16 : 9 mode] Horizontal: 30° (TELE) – 110° (WIDE) Vertical: 17° (TELE) – 59° (WIDE) – [4 : 3 mode] Horizontal : 25° (TELE) – 90° (WIDE) Vertical : 19° (TELE) – 66° (WIDE)
Maximum Aperture Ratio	1 : 1.6 (WIDE) – 1 : 3.4 (TELE)
Focusing Range	0.3 m {11-13/16 inches} – ∞
Adjusting Angle
Adjusting Angle	Horizontal : -240 to +120°, Vertical : ±85°, Yaw : ±100°
Browser GUI
Camera Control	Brightness, AUX On/Off
Audio	Mic (Line) Input: On/Off Volume adjustment : Low/ Middle/ High Audio Output: On/Off Volume adjustment: Low/ Middle/ High
GUI/ Setup Menu Language	English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
Network IF	10Base-T/ 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG)	– 2 Megapixel [16 : 9] (30/60 fps) 1,920 x 1,080/ 1,280 x 720/ 640 x 360/ 320 x 180 – 3 Megapixel [4 : 3] (30 fps) 2,048 x 1,536/ 1,280 x 960/ 800 x 600/ 640 x 480/ 400 x 300/ 320 x 240
H.265/H.264	– Transmission Mode: Constant bit rate/ VBR/ Frame rate/ Best effort – Transmission Type: Unicast/ Multicast
JPEG	Image Quality: 10 steps
Smart Coding	– Smart Facial Coding: On (Smart Facial Coding)/ On (Auto VIQS)/ Off Smart Facial Coding is only available with Stream(1). – GOP (Group of pictures): On (Advanced)/ On (Mid)/ On (Low)/ Off On(Advanced) is only available with H.265.
Audio Compression	G.726 (ADPCM): 16 kbps/ 32 kbps G.711: 64 kbps AAC-LC: 64 kbps/ 96 kbps/ 128 kbps
Audio transmission mode	Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex/ Interactive (Full duplex)
Supported Protocol	– Pv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users	Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card (Option)	– H.265 / H.264 recording : Manual REC/ Alarm REC (Pre/Post)/ Schedule REC/ Backup upon network failure – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SDXC/SDHC/SD Memory Card : Panasonic 2 GB, 4 GB, 8 GB, 16 GB, 32 GB, 64 GB, 128 GB, 256 GB** model SDHC card, * SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibilit	iPad, iPhone, Android mobile terminals
Alarm
Alarm Source	3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions	SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/ Output
Monitor Output (for adjustment)	VBS: 1.0 V [p-p] / 75 Ω, composite, ø3.5 mm mini jack An NTSC or PAL signal can be outputted from camera
Audio input	ø3.5 mm stereo mini jack Input impedance: Approx. 2 kΩ (unbalanced) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V
Audio Output	ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals	ALARM IN 1 (Black & white input, Auto time adjustment input) (x1), ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
Safety	UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC	FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption	DC power supply: DC12 V 460 mA, Approx. 5.6 W PoE (IEEE802.3af compliant) Device: DC48 V 125 mA, Approx. 6.0 W (Class 0 device)
Ambient Operating Temperature	-10 °C to +50 °C (14 °F to 122 °F)
Ambient Operating Humidity	10 to 90 % (no condensation)
Dimensions	ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches}
Mass (approx.)	Approx. 560 g (1.23 lbs)
Finish	Main body: ABS resin, sail white/ Dome section: Clear acrylic resin

– Xuất xứ: Trung Quốc.

– Bảo hành: 12 tháng.
