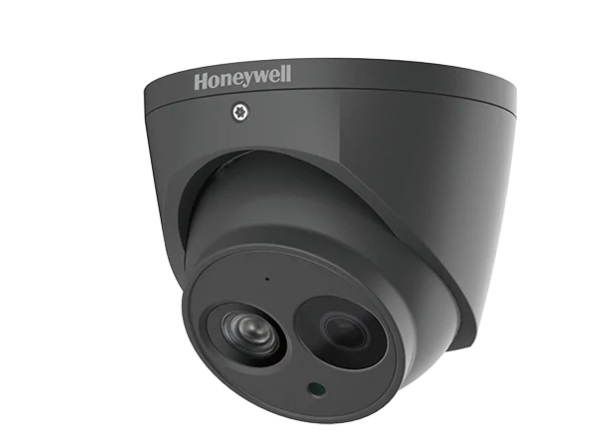

Camera IP Dome hồng ngoại 4.0 Megapixel HONEYWELL HEW4PER3B
– Độ phân giải camera ip: 4.0 Megapixel.
Camera IP Dome hồng ngoại 4.0 Megapixel HONEYWELL HEW4PER3B
– Cảm biến hình ảnh: 1/3-inch progressive scan CMOS.
– Độ phân giải camera ip: 4.0 Megapixel.
– Ống kính: 2.8mm, Fixed, F1.6.
– Tốc độ khung hình: Lên đến 30 fps.
– Độ nhạy sáng tối thiểu: 0.4lux/F1.6(color, 30IRE); 0Lux/F1.6(IR on).
– Hỗ trợ khe cắm thẻ nhớ MicroSDHC, up to 128GB.
– Tầm quan sát hồng ngoại: 50 mét.
– Chuẩn nén hình ảnh: H.265/H.264H/Smart Codec/MJPEG (Sub Stream).
– Tiêu chuẩn chống nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
| Model | HEW4PER3B |
| Operational | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive |
| Image Sensor | 1/3-inch 4 Megapixel progressive scan CMOS |
| Number Of Pixels (H × V) | 2688(H) x1520(V) |
| Minimum Illumination | 0.4lux/F1.6(color,30IRE) 0Lux/F1.6(IR on) |
| S/N Ratio | More than 45dB |
| Electronic Shutter Speed | 1/3~1/100000s |
| IR Distance | Up to 50m (164ft), depending on scene reflectance |
| IR Light Control | Manual/SmartIR/OFF |
| IR Light Number | 1 |
| Day/Night | Auto(ICR)/ Color/ B/W |
| Backlight Compensation | BLC/ HLC/ WDR |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual/ Customized Region |
| Gain Control | 0~100 |
| Wide Dynamic Range | 120dB |
| Noise Reduction | 3D DNR |
| Privacy Masking | Off / On (4 Areas, Rectangle) |
| Motion Detection | Off / On (4 Zones, Rectangle) |
| Region Of Interest | Off / On (4 Zones) |
| Face Detection | Supported |
| Audio Detection | Supported |
| Lens | 2.8mm, Fixed, F1.6 |
| Angle Of View | H:104°, V:58° |
| Video | |
| Video Compression | H.265/H.264H/Smart Codec/MJPEG (Sub Stream) |
| Resolution | 4M(2688×1520)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280×960)/ 720P(1280×720)/ D1(704×480/576)/ CIF(352×240/288) |
| Frame Rate | Main Stream: 4M(1~25/30fps) Sub Stream: D1(1~25/30fps) Third Stream: 720P(1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~10240Kbps H.265: 14~9984Kbps |
| Audio | |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Interface | Built-in Mic |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Supported Web Browsers | Internet Explorer (11.0+) |
| Supported Os | Windows 7 32-bit/64-bit; Windows 10 32-bit/64-bit |
| Protocols | HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS |
| Interoperability | ONVIF Profile S/G/Q |
| Maximum Users Access | 20 Users |
| Security | User account and password protection HTTPS, IP Filter, Digest authentication, User access log, TLS1.2 only, AES-128/256, SSH/Telnet closed, sFTP by default, PCIDSS compliance |
| Event | No SD card, SD card error, Capacity warning, Network disconnection, IP conflict, Illegal access |
| Micro Sd | Up to 128 GB microSDHC card, Class 10 (not included) |
| Electrical | |
| Power Supply | DC12V, PoE (IEEE802.3af) (Class 0) |
| Power Consumption | <5.5W |
| Mechanical | |
| Dimensions | Ø106mm×93.7mm (4.17-inch×3.69-inch) |
| Product Weight | 0.46kg (1.01lb) |
| Package Weight | 0.65Kg (1.43lb) |
| Construction | Die-cast aluminum housing with powder coat |
| Environmental | |
| Operating Temperature | -30° C ~ +60° C (-22° F ~ +140° F) |
| Relative Humidity | Less than 95%, non-condensing |
| Ingress Protection | IP66 |
| Regulatory | |
| Emissions | FCC Part 15B, EN55032 |
| Immunity | EN 50130-4 |
| Safety | UL 60950-1, EN 62368-1 |
| Rohs | EN 50581 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
