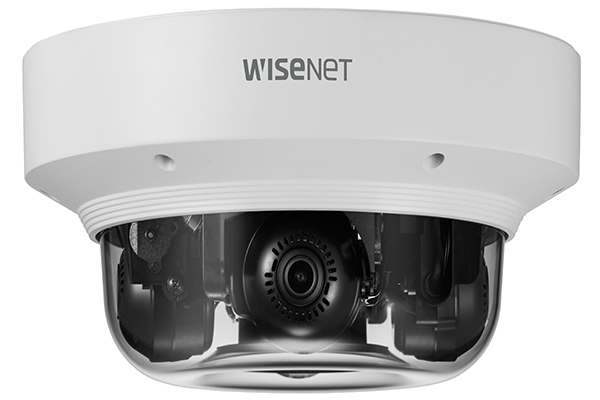

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Mã: PNM-9084QZ Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Dome Multi-directional 2.0 Megapixel Hanwha Techwin WISENET PNM-9084QZ

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Độ phân giải: 2.0 Megapixel.

– Độ nhạy sáng: Color: 0.04lux (F2.2, 1/30sec), BW: 0.004 lux (F2.2, 1/30sec).

– Ống kính: 3~6mm (2x) motorized varifocal.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng giảm nhiễu số SSNRV.

– Chức năng chống sương mù Defog.

– Chức năng ổn định hình ảnh số (Digital Image Stabilization).

– Hỗ trợ LDC.

– Hỗ trợ 4 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ 256GB (mỗi kênh).

– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Nguồn điện ngõ vào: HPoE.

– Chất liệu/ màu sắc: Alumium/ White.

– Kích thước: Ø251 x 116.5mm.

– Trọng lượng: 3kg.

Features

– 2MP x 4ch Multi-directional camera.

– PTRZ support.

– Max. 60fps@2M (H.265, H.264), Max. 30fps@2M (MJPEG).

– 3.0~6.0mm (2x) motorized varifocal lens.

– H.265, H.264, MJPEG codec, Multi streaming.

– Video analytics, WiseStreamII.

– IP66, IK10, NEMA4X.

Đặc tính kỹ thuật

Mdoel	PNM-9084QZ
Video
Imaging Device	1/2.8 inch 2MP CMOS: each CH
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max. 60fps/50fps (60Hz/50Hz) MJPEG: Max. 30fps/25fps (60Hz/50Hz)
Min. Illumination	Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)
Lens
Focal Length (Zoom Ratio)	3~6mm(2x) motorized varifocal
Max. Aperture Ratio	F2.2(Wide)-F3.1(Tele)
Angular Field of View	H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Min. Object Distance	0.5m(1.64ft)
Focus Control	Simple focus
Lens Type	DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	Remote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚
Operational
Camera Title	Displayed up to 85 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones – Color: Grey, Green, Red, Blue, Black, White – Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover
Audio In	Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
Network
Ethernet	RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR MJPEG: VBR
Streaming	Unicast(10 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform
General
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.13 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage	Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
Memory	5GB RAM, 1280MB Flash
Environmental & Electrical
Operating Temperature / Humidity	-40°C~+55°C(-40°F~+131°F) / Less than 90% RH Start up should be above at -35˚C
Storage Temperature / Humidity	-50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification	IP66, IK10, NEMA4X
Input Voltage	HPoE
Power Consumption	Max. 33W, Typical 20W
Mechanical
Color / Material	White / Aluminum
RAL Code	RAL9003
Dimensions	∮251×116.5mm
Weight	3kg

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Bảo hành: 24 tháng.
