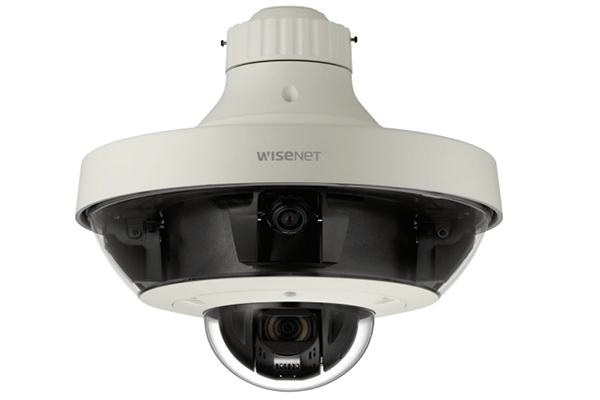

Camera IP Speed Dome 22 Megapixel Hanwha Techwin WISENET PNM-9320VQP
– Chuẩn nén hình ảnh: H.265/ H.264, JPEG.
Camera IP Speed Dome 22 Megapixel Hanwha Techwin WISENET PNM-9320VQP
– Cảm biến hình ảnh: 1/2.8 inch CMOS.
– Chuẩn nén hình ảnh: H.265/ H.264, JPEG.
– Độ phân giải: 22 Megapixel.
– Độ nhạy sáng: Color: 0.05Lux (F1.6, 1/30sec, 30IRE), B/W: 0.005Lux (F1.6, 1/30sec, 30IRE).
– Ống kính: 4.44 ~ 142.6mm (Optical 32x).
– Góc quan sát theo chiều ngang: 61.8° (Wide)~2.19°(Tele) / theo chiều dọc: 36.2°(Wide)~1.24°(Tele).
– Chức năng quan sát Ngày và Đêm (ICR).
– Chức năng giảm nhiễu số SSNR5 (2D + 3D noise filter) (On / Off).
– Chức năng phát hiện chuyển động (Motion Detection).
– Chức năng vùng che riêng tư Privacy Masking.
– Chức năng điều chỉnh độ lợi AGC.
– Hỗ trợ LDC.
– Ngõ vào/ ngõ ra báo động: Input 1ea / Output 2ea (Relay type).
– Ethernet: RJ-45 (10 / 100 / 1000 BASE-T).
– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Kích thước: Ø 367.8 x 381.5mm.
– Trọng lượng: 7.05kg.
Features
Multi-directional camera
– Interchangeable 4 each x 2 MP / 5 MP lens modules.
– 8 MP to 20 MP resolution depending on the combination of lens modules.
– WDR 150dB with 2 MP lens module, 120dB with 5 MP lens module.
– 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2 MP module).
– 3.7mm, 4.6mm, 7mm fixed lens (5 MP module).
PTZ camera
– 2 MP (1920 x 1080) resolution.
– 4.44~142.6mm (Optical 32x) lens.
– WDR 150dB, Day & Night (ICR).
Common
– 60fps@2 MP, 30fps@5 MP (H.265 / H.264)
– H.265, H.264, MJPEG codec support
– Video Analytics, WiseStream II support
– SD / SDHC / SDXC memory – 5 slots.
Đặc tính kỹ thuật
| Model | PNM-9320VQP |
| VIDEO | |
| Imaging Device | 1/2.8′ 2.4M CMOS |
| Total / Effective Pixels | 1,981(H)x1,288(V), 2.55M / 1,944(H)x1,212(V), 2.35M |
| Scanning System | Progresive scan |
| Min. Illumination | Color: 0.05Lux (F1.6, 1/30sec, 30IRE) B/W: 0.005Lux (F1.6, 1/30sec, 30IRE) |
| S / N Ratio | 50dB |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720×480(N), 720 x 576(P), for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(Optical 32x) |
| Max. Aperture Ratio | F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | H : 61.8°(Wide)~2.19°(Tele) / V : 36.2°(Wide)~1.24°(Tele) |
| Min. Object Distance | Wide : 1.5m, Tele : 2m |
| Focus Control | Auto / Manual / One shot AF |
| Lens / Mount Type | DC Auto Iris / Board-in type |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 360° Endless / 190°(-5°~185°) |
| Pan / Tilt Speed | Preset : 700°/ sec, Manual : 0.024°/ sec ~ 200°/ sec |
| Sequence | Preset (300ea), Swing, Group (128ea), Trace, Tour, Auto run, Schedule |
| Preset Accuracy | ±0.2° |
| Auto tracking | On / Off |
| OPERATIONAL | |
| Camera Title | Off / On (Displayed up to 85 characters) – W/W : English / Numeric / Special characters – China : English / Numeric / Special / Chinese characters – Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Electrical (Multi-directional (CH 1 ~ 4)) |
| Auto (ICR) / Color / B/W / Schedule (PTZ (CH 5)) | |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| WDR | 150dB (SLA-2M), 120dB (SLA-5M) (Multi-directional (CH 1 ~ 4)) |
| 150dB (PTZ (CH 5)) | |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D + 3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off (Multi-directional (CH 1 ~ 4)) |
| On / Off (Built-in gyro sensor) (PTZ (CH 5)) | |
| Defog | Off / Auto / Manual |
| Motion Detection | On / Off (8ea, 8point polygonal zones), Hand over |
| Privacy Masking | On / Off (32ea, polygonal zones) – Color : Grey / Green / Red / Blue / Black / White – Mosaic |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Contrast | Level adjustment |
| LDC | On / Off (5 levels with Min / Max) (Multi-directional (CH 1 ~ 4) ) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec) |
| Flip / Mirror | On / Off, Hallway view : 90˚/ 270˚ (Multi-directional (CH 1 ~ 4)) |
| On/ Off (PTZ (CH 5)) | |
| Video Analytics | Tampering, Loitering, Fog detection, Virtual line,/Directional detection, Enter/Exit, Appear/Disappear, Face detection, Motion detection, Defocus detection (Multi-directional camera) |
| Alarm I / O | Input 1ea / Output 2ea (Relay type) |
| Alarm Triggers | Motion detection, Video analytics, Network disconnect |
| Alarm events | File upload via FTP, E-Mail, Notification via E-Mail, Local storage(SD/SDHC/SDXC) recording at event triggers, External output |
| Pixel Counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10 / 100 / 1000 BASE-T) |
| SFP | SFP slot (100 / 1000Mbps) |
| Video Compression Format | H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG |
| Resolution | [5MP] 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 320 x 240 [2MP] 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Frame rate | H.265 / H.264 : 2 MP Maximum 60fps, 5 MP 30fps at all resolutions Motion JPEG : Maximum 30fps |
| Smart Codec | Manual Mode (Area-based : 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR MJPEG : VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast mode |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 users at unicast mode |
| Edge Storage | SD / SDHC / SDXC 5slot (Each CH) – Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. – Local PC for instant recording |
| Application Programming Interface | ONVIF Profile S, SUNAPI (HTTP API) |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Supported browser : Google Chrome 67, MS Edge 41, Mozilla Firefox 61 (Windows 64bit only), Apple Safari 11 (Mac OS X only), MS Explorer 11 |
| Central Management Software | SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | 35°C ~ +55°C (-31°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| ELECTRICAL | |
| Input Voltage / Current | HPoE (Injector included) |
| Power Consumption | Maximum 65W |
| MECHANICAL | |
| Optional Lens | SLA-2M2400P / SLA-2M2800P / SLA-2M3600P / SLA-2M6000P / SLA-2M1200P SLA-5M3700P / SLA-5M4600P / SLA-5M7000P |
| Color / Material | Ivory / Metal |
| Dimension | Ø 367.8 x 381.5mm |
| Weight | 7.05 kg |
– Hãng sản xuất: Hanwha Techwin Hàn Quốc.
– Bảo hành: 24 tháng.
