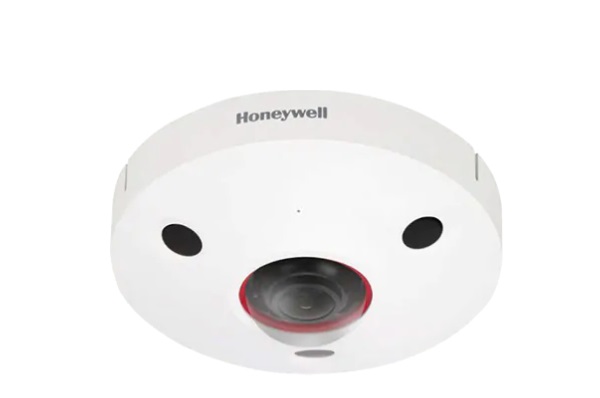

Camera IP Fisheye hồng ngoại 6.0 Megapixel HONEYWELL HFD6GR1
– Độ phân giải camera ip: 6.0 Megapixel.
Camera IP Fisheye hồng ngoại 6.0 Megapixel HONEYWELL HFD6GR1
– Cảm biến hình ảnh: 1/1.8-inch progressive CMOS.
– Độ phân giải camera ip: 6.0 Megapixel.
– Ống kính: 1.7 mm, fixed fisheye lens, F2.0.
– Tốc độ khung hình: 30 fps.
– Độ nhạy sáng tối thiểu: 0.01 lux color/0 lux B/W with IR LEDs on @ F2.0.
– Tầm quan sát hồng ngoại: 8 mét.
– Thẻ nhớ: Up to 128 GB microSDHC card, Class 10 (not included).
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12VDC.
Đặc tính kỹ thuật
| Model | HFD6GR1 |
| OPERATIONAL | |
| Video Standard | NTSC/PAL |
| Scanning System | Progressive scan |
| Image Sensor | 1/1.8-inch 6 MP progressive CMOS |
| Number Of Pixels (H × V) | 3072 × 2048 |
| Minimum Illumination | 0.01 lux color/0 lux B/W with IR LEDs on @ F2.0 |
| S/N Ratio | 50 dB |
| Electronic Shutter Speed | Auto, Manual, 1/3(4) – 1/100,000 s |
| IR Distance | Up to 25 ft. (8 m), depending on scene reflectance |
| IR Light Control | Smart IR/Manual/Off |
| Day/Night | Auto (ICR)/Color/BW |
| Backlight Compensation | BLC/HLC/DWDR |
| Wide Dynamic Range | Digital WDR (DWDR) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Customize Region |
| Gain Control | Auto/Manual |
| Noise Reduction | 3DNR |
| Privacy Masking | Up to 4 configurable areas |
| Corridor Mode | Yes |
| Focus Mode | Manual |
| Lens | 1.7 mm, fixed fisheye lens, F2.0 |
| Angle Of View | Horizontal: 185° |
| Audio/Two-Way | Line In/Out, 1 built-in mic |
| Alarm Input/Output | 2/2 |
| Ethernet | RJ-45 (10/100/1000Base-T) |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264/MJPEG Bit rate control (CBR and VBR) |
| Resolution | – 4:3: 3M (2048×1536)/UXGA (1600×1200)/1.3M (1280×960) – Other: 6M (3072×2048)/ 4M (2048×2048)/ D1 (704×576/704×480)/ CIF (352×288/352×240) |
| Frame Rate | – Main stream: 6M (3072×2048)/ 4M (2048×2048)/ 3M (2048×1536)/ UXGA (1600×1200) at up to 25/30 fps – Sub stream: D1/CIF up to 25/30 fps – Third stream: 1.3M/D1 up to 25/30 fps |
| Dewarping Mode | Original, Panoramic, Double Panoramic, 1+3 EPTZ, 4 Pictures, 2 Pictures, Single |
| Audio Compression | G.711a/G.711Mu/AAC/G.726/MPEG2-Layer2/G.722.1/G.729 |
| Audio Stream | Full duplex, simplex |
| Supported Web Browsers | Internet Explorer® (11.0+), Firefox, Chrome |
| Supported OS | Windows® 7 32-bit/64-bit, Windows 10 |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, Multicast, ONVIF |
| Compatibility | ONVIF Profile S and G |
| Maximum Users Access | 20 users |
| Security | User account and password protection, HTTPS, IP Filter, IEEE 802.1x, digest authentication, user access log, TLS1.2, AES-256, SSH/Telnet closed, FTP disabled, PCI-DSS, built-in crypto chipset, UL2900-1, UL Cyber Assurance Program (UL CAP) certification |
| Micro SD | Up to 128 GB microSDHC card, Class 10 (not included) |
| Micro SD Function | – Event trigger recording – Continuous and scheduled recording – Automatic recording when network fails |
| Languages Supported | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| ELECTRICAL | |
| Power Supply | PoE (802.3af) Class 0, 12 VDC |
| Power Consumption | 10 W max. (IR LEDs on) |
| MECHANICAL | |
| Dimensions | Ø5.9-inch× 2.2-inch (Ø150.2 mm × 55.8 mm) |
| Product Weight | 1.1 lb. (0.5 kg) |
| Construction | Die-cast aluminum housing with powder coat |
| Construction Color | RAL 9003 (White) |
| ENVIRONMENTAL | |
| Operating Temperature | -22°F to 140°F (–30°C to 60°C) |
| Relative Humidity | Less than 95%, non-condensing |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| REGULATORY | |
| Emissions | EN55032, FCC Part 15B, AS/NZS CISPR 22:2009+A1 (2010) |
| Immunity | EN50130-4 |
| Safety | EU: EN60950-1 North America UL listed to UL/CSA 60950-1 |
| RoHS | EN50581 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
