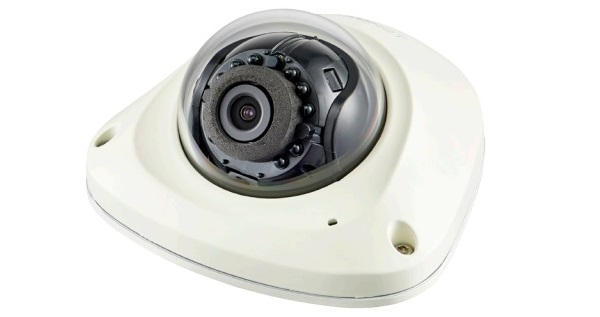

Camera IP Flat hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XNV-6022RM/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Flat hồng ngoại 2.0 Megapixel Hanwha Techwin WISENET XNV-6022RM/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ SD/SDHC/SDXC dung lượng lưu trữ 256GB.

– Độ nhạy sáng: 0.04Lux@F2.0 (Màu), 0Lux (B / W: Đèn LED hồng ngoại).

– Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080).

– Ống kính cố định: 3.6mm.

– Tầm quan sát hồng ngoại: 15 mét.

– Chức năng quan sát Ngày và Đêm (ICR).

– Chức năng chống ngược sáng WDR (150dB).

– Chức năng giảm tiếng ồn kỹ thuật số SSNR.

– Hỗ trợ WiseStream II.

– Hỗ trợ LDC.

– Hỗ trợ âm thanh: 2 chiều.

– Chức năng thông minh: Tự động theo dõi, phát hiện đối tượng lảng vảng.

– Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

– Chức năng cấp nguồn qua mạng PoE.

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/2.8 inch CMOS
Total Pixels	1.945 (H) x 1.109 (V)
Effective Pixels	1.945 (H) x 1.097 (V)
Scanning System	Progressive Scan
Min. Illumination	Color : 0.04Lux (F2.0), B/W : 0Lux (IR LED On)
S / N Ratio	50dB
Video Output	USB : Micro USB type B, 1280 x 720, for installation
LENS
Focal Length (Zoom Ratio)	3.6mm Fixed
Max. Aperture Ratio	F2.0
Angular Field of View	H: 94.8° / V: 49.3° / D: 114.3°
Focus Control	Manual
Lens / Mount Type	Fixed / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	±5° / 0° ~ 67° / ±90°
OPERATIONAL
Viewable Length	15m
Camera Title	Off / On (Displayed up to 85 characters)
	– W/W : English / Numeric / Special characters
	– China : English / Numeric / Special / Chinese characters
	– Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night	Auto (ICR)/ Color/ B/W / Schedule
Backlight Compensation	Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range	150dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (8ea, 8 point polygonal zones), Handover
Privacy Masking	Off / On (32ea, polygonal zones)
	– Color : Grey / Green / Red / Blue / Black / White
	– Mosaic
Gain Control	Off / Low / Middle / High
Contrast	Level adjustment
LDC (Lens Distortion Correction)	On / Off (5 levels with Min / Max)
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ	24x, Digital PTZ (Preset, Group)
Flip / Mirror	Off / On, Hallway view : 90˚ / 270˚
Video Analytics	Tampering (Scene change), Virtual line, Enter / Exit, (Dis)Appear, Audio Detection, Defocus detection, Digital auto tracking – with metadata
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events	File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset
Pixel Counter	Support
NETWORK
Ethernet	M12 connector (10/100 BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265 / H.264: Max. 60fps at all resolutions / Motion JPEG: Max. 30fps
Smart Codec	Manual mode (area-based : 5ea)
WiseStreamⅡ	Support
Video Quality Adjustment	H.265 / H.264 / MJPEG : Target Bitrate Level Control
Bitrate Control Method	H.265 / H.264 : CBR OR VBR, MJPEG : VBR
Streaming Capability	Multiple Streaming (Up to 10 Profiles)
Audio In	Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm
Audio Out	Line out, Max. output level: 1 Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
	G.726 (ADPCM) 8KHz, G.711 8KHz
	AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz
Audio Communication	Bi-directional audio (2-way)
IP	IPv4, IPv6
Protocol	TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
	Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
	Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 users at Unicast Mode
Edge Storage	SD/SDHC/SDXC 1slot (up to 256GB)
	– Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
	NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface	ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS	Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer
Supported Browser	Google Chrome, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari 10 (Mac OS X only)
	Plug-in Webviewer
	Supported Browser: MS Explorer 11, Apple Safari (Mac OS X only)
Central Management	SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	IK10, NEMA4X
ELECTRICAL
Input Voltage / Current	PoE (IEEE802.3af, Class3)
Power Consumption	Max. 6.7W
MECHANICAL
Color / Material	Ivory (NCS S 0502-Y) / Metal
Dimensions	98.9 x 52.0 x 100.0mm
Weight	295g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
