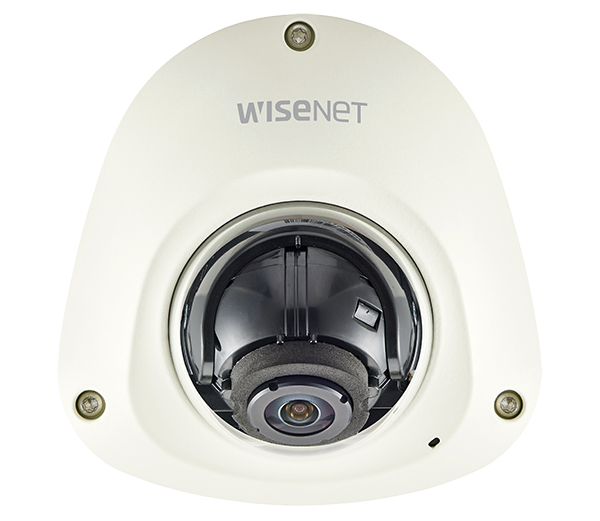

Camera IP Flateye 2.0 Megapixel Hanwha Techwin WISENET XNV-6012/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Flateye 2.0 Megapixel Hanwha Techwin WISENET XNV-6012/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ (tối đa 512GB).

– Độ phân giải camera ip: 2.0 Megapixel.

– Độ nhạy sáng: 0.04 Lux @ F2.0 (Color), 0.04 Lux @ F2.0 (B/W).

– Ống kính cố định: 2.4mm.

– Chức năng quan sát Ngày và Đêm.

– Chức năng chống ngược sáng WDR (150dB).

– Cổng kết nối: RJ-45(10/100BASE-T).

– Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Hỗ trợ LDC.

– Tiêu chuẩn chống va đập: IK10.

– Tiêu chuẩn chống ăn mòn: NEMA4X.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2MP CMOS
Effective Pixels	1945(H)x1097(V)
Min. Illumination	Color: 0.04 Lux (F2.0, 1/30sec)
Min. Illumination	BW: 0.04 Lux (F2.0, 1/30sec)
Video Out	USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)	2.4mm fixed focal
Max. Aperture Ratio	F2.0
Angular Field of View	H: 135.4˚ / V: 71.2˚ / D: 161.6˚
Focus Control	Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	-5˚~5˚ / 0˚~67˚ / -90˚~90˚
Operational
Camera Title	Displayed up to 85 characters
Day & Night	Auto (Electrical)
Backlight Compensation	BLC, HLC, WDR
Wide Dynamic Range	150dB
Digital Noise Reduction	SSNRV
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	– Color: Grey/Green/Red/Blue/Black/White
	– Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view (90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
	DPTZ preset
Audio In	Selectable(mic in/line in)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: 2 ohm
Audio Out	Line out, Max.output level: 1Vrms
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720,
Resolution	1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max.60fps/50fps(60Hz/50Hz)
Max. Framerate	MJPEG: Max.30fps/25fps(60Hz/50Hz)
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR
Bitrate Control	MJPEG: VBR
Streaming	Unicast (20 users) / Multicast
Streaming	Multiple streaming (Up to 10 profiles)
Audio Compression	G.711 u-law /G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
	AAC-LC: 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access Log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface	ONVIF Profile S/G
	SUNAPI (HTTP API)
	Wisenet open platform
Web Viewer	Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Recommended Browser: Google Chrome
	Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory	1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity	-30°C~+55°C(-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90%
Certification	IP66, IK10, NEMA4X
	EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009
	EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
Electrical
Input Voltage	PoE (IEEE802.3af, Class3)
Power Consumption	PoE: Max 6.50W
Mechanical
Color / Material	Ivory / Aluminum
Dimensions	99 x 52 x 100mm
Weight	295g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
