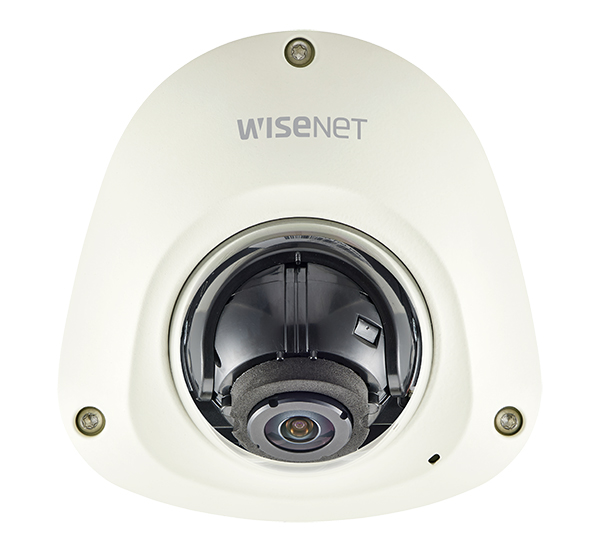

Camera IP Flateye 2.0 Megapixel Hanwha Techwin WISENET XNV-6012M/VAP

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Flateye 2.0 Megapixel Hanwha Techwin WISENET XNV-6012M/VAP

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ (tối đa 256GB).

– Độ phân giải camera ip: 2.0 Megapixel.

– Độ nhạy sáng: 0.04 Lux @ F2.0 (Color), 0.04 Lux @ F2.0 (B/W).

– Ống kính cố định: 2.4mm.

– Chức năng quan sát Ngày và Đêm.

– Chức năng chống ngược sáng WDR (150dB).

– Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Hỗ trợ kết nối: M12.

– Hỗ trợ LDC.

– Tiêu chuẩn chống va đập: IK10.

– Tiêu chuẩn chống ăn mòn: NEMA4X.

– Chức năng cấp nguồn qua mạng PoE.

– Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2MP CMOS
Effective Pixels	1945(H)x1097(V)
Min. Illumination	Color: 0.04 Lux (F2.0, 1/30sec)
Min. Illumination	BW: 0.04 Lux (F2.0, 1/30sec)
Video Out	USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio)	2.4mm fixed focal
Max. Aperture Ratio	F2.0
Angular Field of View	H: 135.4˚ / V: 71.2˚ / D: 161.6˚
Focus Control	Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	±5° / ±67° / ±90°
Operational
Camera Title	Displayed up to 85 characters
Day & Night	Auto (Electrical)
Backlight Compensation	BLC, HLC, WDR
Wide Dynamic Range	150dB
Digital Noise Reduction	SSNRV
Digital Image Stabilization	Support (built-in gyro sensor)
Defog	Support (built-in optical filter)
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	– Color: Grey/Green/Red/Blue/Black/White
	– Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view (90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Alarm Triggers	Analytics, Network disconnect
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
Audio In	Selectable(mic in/line in)
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
Network
Ethernet	M12
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Resolution	1920×1080, 1280×1024, 1280×960, 1280×720,
Resolution	1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max.60fps/50fps(60Hz/50Hz)
Max. Framerate	MJPEG: Max.30fps/25fps(60Hz/50Hz)
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR
Bitrate Control	MJPEG: VBR
Streaming	Unicast (20 users) / Multicast
Streaming	Multiple streaming (Up to 10 profiles)
Audio Compression	G.711 u-law /G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
	AAC-LC: 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access Log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 1slot 256GB
Application Programming Interface	ONVIF Profile S/G
	SUNAPI (HTTP API)
	Wisenet open platform
Web Viewer	Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Recommended Browser: Google Chrome
	Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory	1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity	-40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90%
Certification	IP67, IK10, NEMA4X
	EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
	EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
	EN61000-4-6:2009, EN50155:2007
Electrical
Input Voltage	PoE (IEEE802.3af, Class3)
Power Consumption	PoE: Max 6.50W
Mechanical
Color / Material	Ivory / Aluminum
Dimensions	98.9 x 52.0 x 100.0mm
Weight	295g

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 24 tháng.
