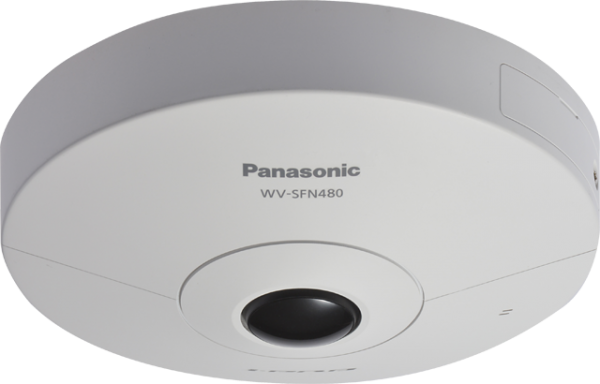

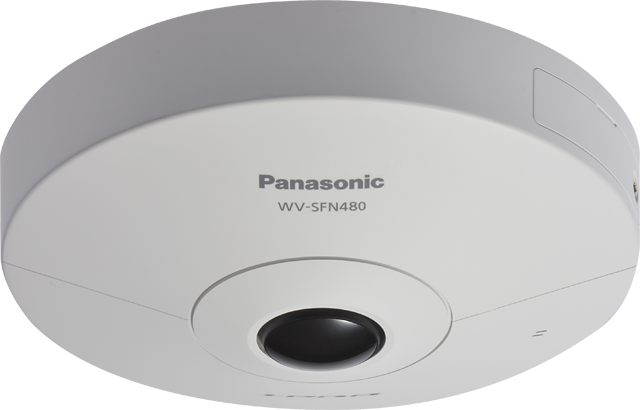

Camera IP Panasonic WV-SFN480
360-degree Indoor Dome
9 Megapixel Network Camera
High resolution, sensitivity, and built-in intelligent features
• 360° monitoring with a wide variety of transmission modes : Panorama, Double Panorama, Quad PTZ, Single PTZ, and Quad streams (H.264)
• 9 Megapixel images up to 15 fps.
• Smooth PTZ operation without mechanical action
• Built-in distortion correction function
• A fisheye lens control function realizes intelligible screen operation intuitively.
• Smartphone monitoring : Direct camera control from smartphone
• Wide dynamic range and ABS (Adaptive Black Stretch) technologies deliver wider dynamic range.
• High sensitivity with Day/Night (Electrical) function : 0.3 lx (Color), 0.2 lx (B/W) at F1.9
• Built-in ABF enables automatic focus adjustment for sharp image, and corrects the focus shift that caused by temperature difference. You can install the camera even in the environment having drastic changes in temperature.
• Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions.
• SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)
• Can be added new intelligent extension software (Extension software) in addition to built- in VMD (Video Motion Detection), alarm function.
• Intelligent function (Extension software) such as Intruder / Loitering / Scene change / Object / Cross line detection, People Count (Cross line), MOR(Moving Object Remover) Function, Heat map (High Traffic Zone / Long-stay Zone)
• Super Chroma Compensation function realizes a better color
• Supports SSL, DDNS (viewnetcam, RFC2136)
• Operating temperature
: –10°C to +50°C (14°F to 122°F) (Ceiling / Wall / Camera mount bracket)
: –10°C to +40°C (14°F to 104°F) (Desktop/ Tripod)
|
Indoor / Outdoor
|
Indoor
|
|
|---|---|---|
|
Image sensor
|
1/2 MOS
|
|
|
Min. Illumination Color (lx)
|
0.3
|
|
|
Min. Illumination B/W (lx)
|
0.2
|
|
|
Maximum Resolution
|
9MP (2,996 x 2,996)
|
|
|
Maximum FPS
|
30
|
|
|
Super Dynamic
|
–
|
|
|
Image compensation
|
Adaptive Black Stretch, Back light compensation (BLC), Digital noise reduction
|
|
|
Color/BW
|
Electrical
|
|
|
ABF(Auto back focus)/Auto Focus/Focus Assist
|
ABF (Auto back focus)
|
|
|
IR LED
|
–
|
|
|
Image Stabilizer
|
–
|
|
|
Corridor Mode
|
–
|
|
|
Privacy Zone
|
8
|
|
|
iA (Intelligent Auto)
|
–
|
|
|
Intelligent VMD (i-VMD)
|
Type3
|
|
|
Focal length
|
f=1.38mm, {1/16 inches}, F1.9
|
|
|
Zoom ratio
|
–
|
|
|
Angular field of view (16:9)
|
H: 180 deg. V: 180 deg. [1:1]
|
|
|
Angular field of view (4:3)
|
–
|
|
|
Panning Range
|
-45 – +45 deg.
|
|
|
Tilting Range
|
-45 – +45 deg.
|
|
|
Network IF
|
10Base-T, 100Base-TX, RJ45 connector
|
|
|
Video Codec
|
H.264, JPEG
|
|
|
Transmission mode (H.265/H.264)
|
Constant bit rate, Variable bit rate, Advanced variable bit rate, Frame rate, Best effort
|
|
|
Smart Coding
|
Yes
|
|
|
Audio Support
|
Yes
|
|
|
Built-in microphone
|
Yes
|
|
|
Microphone/Line Input
|
Yes
|
|
|
Audio Output
|
Yes
|
|
|
SD memory Card Slot
|
SDXC
|
|
|
External I/O Terminals
|
Yes
|
|
|
Ambient Operating Humidity
|
10-90
|
|
|
Vandal Resistant
|
–
|
|
|
Water and Dust Resistance
|
–
|
|
|
ClearSight Coating / Rain Wash Coating
|
–
|
|
|
Dehumidification device
|
–
|
|
|
Temperature (degree, Celsius)
|
MAX |
50
|
| MIN |
-10
|
|
|
Temperature (degree, Fahrenheit)
|
MAX |
122
|
| MIN |
14
|
|
|
Power Source
|
PoE, 12V DC
|
|
|
SSL device certificate
|
–
|
|
|
ONVIF Profile
|
S, G
|
|
