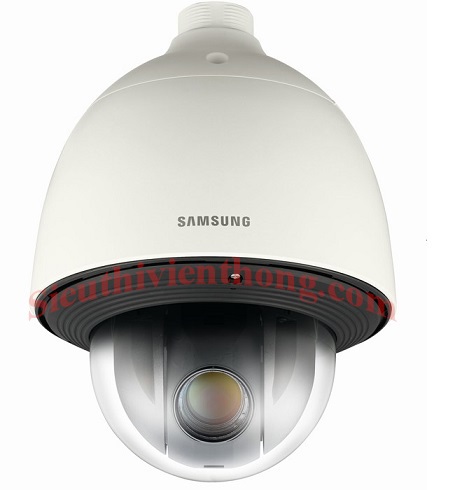

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET SNP-L6233H

-Chuẩn nén hình ảnh: H.264, MJPEG.

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome 2.0 Megapixel Hanwha Techwin WISENET SNP-L6233H

-Cảm biến hình ảnh: 1/2.8 inch CMOS.

-Chuẩn nén hình ảnh: H.264, MJPEG.

-Ống kính camera ip: 4.44 ~ 102.1mm.

-Góc quan sát theo chiều ngang: 62.8º (Wide) ~ 3.14º (Tele) / theo chiều dọc: 36.8º (Wide) ~ 1.76º (Tele).

-Zoom quang: 23x.

-Zoom số: 12x.

-Chức năng quan sát Ngày và Đêm.

-Chức năng giảm nhiễu số SSNRIII.

-Chức năng ổn định hình ảnh số.

-Chức năng phát hiện chuyển động: Off / On (4ea rectangle zone).

-Chức năng vùng riêng tư: Off / On (32 zones of rectangle zone) with zoom threshold mosaic option.

-Chức năng chống sương mù Defog.

-Chức năng cấp nguồn qua mạng PoE.

-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

-Tiêu chuẩn chống va đập: IK10.

-Nguồn điện cung cấp: 24VAC ± 10%.

-Kích thước: Ø223.4 x 293.6mm.

-Trọng lượng: 3.2kg.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2.38M CMOS
Total Pixels	1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
Scanning System	Progressive
Min. Illumination	Color: 0.3Lux (1/30sec, F1.6, 50IRE, AGC high), 0.005Lux (2sec, F1.6, 50IRE, AGC high)
	B/W: 0.03Lux (1/30sec, F1.6, 50IRE, AGC high), 0.0005Lux (2sec, F1.6, 50IRE, AGC high)
	Color: 0.15Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE)
	B/W: 0.015Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
S / N Ratio	50dB
Video Output	CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens
Focal Length (Zoom Ratio)	4.44 ~ 102.1mm (Optical 23x)
Max. Aperture Ratio	F1.6 (Wide) / F3.63 (Tele)
Angular Field of View	H: 62.8º (Wide) ~ 3.14º (Tele) / V: 36.8º (Wide) ~ 1.76º (Tele)
Min. Object Distance	Wide: 1.5m (4.92ft), Tele: 1.9m (6.23ft)
Focus Control	Auto / Manual / One push
Mount Type	DC auto iris / Board-in type
Pan / Tilt
Pan / Tilt / Rotate Range	360º Endless / 210º (-15º ~195º)
Pan / Tilt Speed	190º (-5º ~18º ) / Preset: 300º/sec, Manual: 0.024º/sec ~ 250º/sec
Sequence	Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea), Auto run, Schedule
Azimuth	Yes (E / W / S / N / NE / NW / SE / SW)
Preset Accuracy	±0.2º
Auto Tracking	Off / On
Operational
Camera Title	Off / On (Displayed up to 45 characters)
Day & Night	Auto (ICR) / Color / B/W
Backlight Compensation	Off / BLC
Wide Dynamic Range	100dB
Contrast Enhancement (DWDR)	SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction	SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization	Off / On
Defog	Off / Auto / Manual
Motion Detection	Off / On (4ea rectangular zones)
Privacy Masking	Off / On (32 zones of rectangle zone) with zoom threshold mosaic option
Gain Control	Off / Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom	12x
Flip / Mirror	Off/ On
Intelligent Video Analytics	Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O	Input 4ea / Output 2ea (Relay)
Remote Control Interface	RS-485
RS-485 Protocol	Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers	Motion detection, Tampering, Audio detection, Face detection, Video analytics, Alarm input, Network disconnection
Alarm Events	File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
Pixel Counter	Support (Plug-in viewer only)
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Frame rate	H.265/ H.264: 30fps at all resolutions, MJPEG: 15fps at all resolutions
Smart Codec	Yes
Video Quality Adjustment	H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability	Multiple streaming (Up to 10 profiles)
Bitrate Control Method	H.264: CBR or VBR, MJPEG: VBR
Audio In	Selectable (Mic in / Line in), Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio I/O	Line out (3.5mm mono jack), Max output level: 1 Vrms
Audio Compression Format	G.711 u-law / G.726 selectable
Audio Compression Format	G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication	Bi-directional audio
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method	Unicast / Multicast
Max. User Access	10 users at unicast mode
Storage	SD/SDHC/SDXC slot for supporting memory card Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded NAS (Network Attached Storage)
Application Programming Interface	ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2
Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
	Plug-in free Webviewer
	– Supported Browser: Google Chrome 47, MS Edge 20
	Plug-in Webviewer
	– Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 Mac OS X only
Central Management Software	SmartViewer, SSM
Ingress Protection	IP66
Vandal Resistance	IK10
ELECTRICAL
Input Voltage / Current	24VAC, PoE+ (IEEE802.3af, Class4)
Power Consumption	24VAC: Max. 65W (24VAC heater on & PoE heater on)
Power Consumption	PoE+: Max. 25W (24VAC heater off / PoE heater on)
Color/ Material	Ivory / Plastic + Metal
Dimensions	Ø223.4 x 293.6mm
Weight	3.2kg

-Hãng sản xuất: Hanwha Techwin Hàn Quốc.

-Sản xuất tại Korea.

-Bảo hành: 24 tháng.
