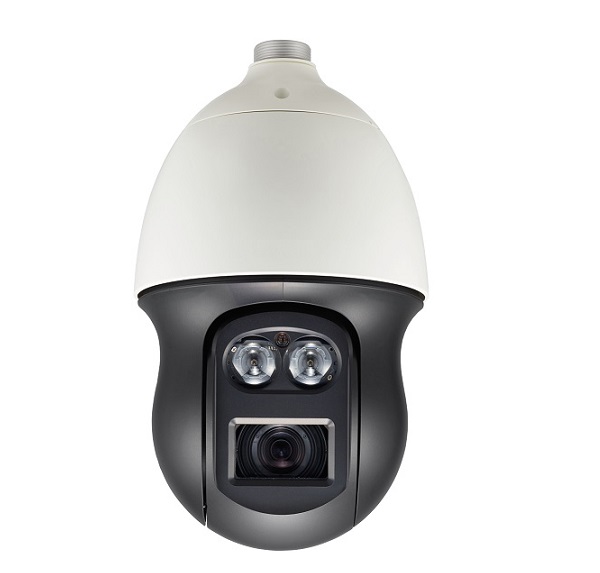

Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Techwin WISENET PNP-9200RH/VAP

– Độ phân giải camera ip: 8 Megapixel (3840 x 2160).

Danh mục: Camera IP Samsung Wisenet

Mô tả
Sản phẩm liên quan

Camera IP Speed Dome hồng ngoại 8.0 Megapixel Hanwha Techwin WISENET PNP-9200RH/VAP

– Cảm biến hình ảnh: 1/2.5 inch CMOS.

– Độ phân giải camera ip: 8 Megapixel (3840 x 2160).

– Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

– Zoom quang: 20x.

– Zoom số: 16x.

– Tầm quan sát hồng ngoại: 200 mét.

– Xoay ngang: 400°/s.

– Xoay dọc: 300°/s.

– Chức năng quan sát ngày đêm ICR.

– Chức năng chống ngược sáng WDR (120dB).

– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

– Tiêu chuẩn chống va đập: IK10.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.5 inch 8MP CMOS
Resolution	3840×2160, 2592×1944, 2592×1464, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination	Color: 0.01Lux(F1.6, 1/30sec) BW: 0Lux(IR LED)
Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
Lens
Focal Length (Zoom Ratio)	4.8~96mm(20x) zoom
Max. Aperture Ratio	F1.8(Wide)~F3.6(Tele)
Angular Field of View	H: 65.1°(Wide)~3.8°(Tele) / V: 38.4°(Wide)~2.2°(Tele)
Min. Object Distance	1.5m(3.28ft)
Focus Control	Oneshot AF
Lens Type	DC auto iris
Pan / Tilt / Rotate
Pan Range	360˚ Endless
Pan Speed	Preset: 400˚/sec, Manual: 0.024˚/sec ~ 250˚/sec
Tilt Range	190˚(-5˚~185˚)
Tilt Speed	Preset: 300˚/sec, Manual: 0.024˚/sec ~ 250˚/sec
Sequence	Preset (300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy	±0.2˚
Operational
Camera Title	Displayed up to 15 characters
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNR
Defog	Support
Motion Detection	4ea, polygonal zones
Privacy Masking	16ea, rectangular zones
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror
Analytics	Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection
Serial Interface	RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O	Input 4ea / Output 2ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
Audio In	Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
IR Viewable Length	200m
Auto Tracking	Support
Network
Ethernet	RJ-45(10/100BASE-T), SFP(Optional)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec	Manual(5ea area), WiseStream
Streaming	Unicast(15 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS (SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication (EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S/G SUNAPI (HTTP API) Wisenet open platform
General
Edge Storage	SD/SDHC/SDXC 1slot 128GB
Memory	1024MB RAM, 256MB Flash
Operating Temperature/ Humidity	-50°C~+55°C (-122°F~+131°F)/ Less than 90% RH
Storage Temperature/ Humidity	-50°C~+60°C (-122°F~+140°F)/ Less than 90% RH
Certification	IP66, IK10
Input Voltage	24VAC
Power Consumption	24VAC: Max 90W

– Hãng sản xuất: Hanwha Techwin Hàn Quốc.

– Sản xuất tại Việt Nam.

– Bảo hành: 24 tháng.
