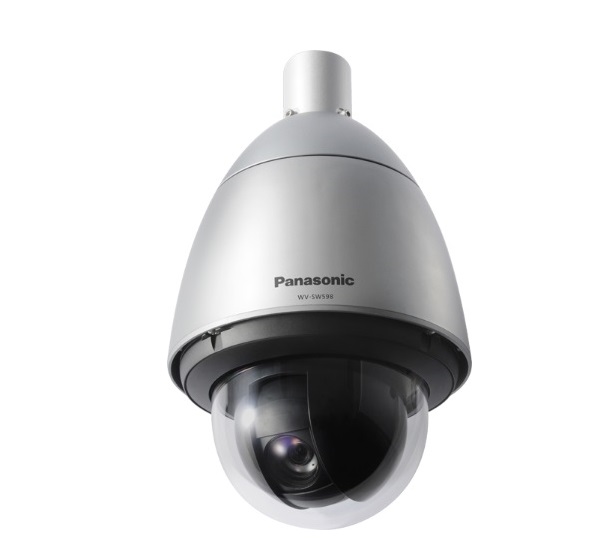

Camera IP Speed Dome 2.0 Megapixel PANASONIC WV-SW598
– Độ phân giải camera ip: 2.0 Megapixel.
Camera IP Speed Dome 2.0 Megapixel PANASONIC WV-SW598
– Cảm biến hình ảnh: Approx.1/3 type MOS image sensor.
– Độ phân giải camera ip: 2.0 Megapixel.
– Tốc độ khung hình: Lên đến 30 fps.
– Ống kính: 4.3 mm – 129.0 mm.
– Độ nhạy sáng tối thiểu: Color: 0.5lx, BW: 0.06lx.
– Chuẩn nén hình ảnh: H.264/ JPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
– Nguồn điện:
+ AC 24V: 3.5A, 55W;
+ PoE+: 470mA, 25W (IEEE802.3at compliant);
+ POE Injector (60W): 1.0A, 50W.
Đặc tính kỹ thuật
| Model | WV-SW598 |
| Camera | |
| Image Sensor | Approx.1/3 type MOS image sensor |
| Effective Pixels | Approx. 2.4 mega pixels |
| Scanning Mode | Progressive scan |
| Scanning Area | 5.38 mm (H) x 3.02 mm (V) {7/32 inches(H) x 1/8 inches(V)} |
| Minimum Illumination | Color: 0.5 lx, BW: 0.06 lx (F1.6, Auto slow shutter: Off (1/30s), Gain: On(High)) Color: 0.03 lx, BW 0.004 lx (F1.6, Auto slow shutter: Max. 16/30s, Gain:On (High)) |
| White Balance | AWC (2,000 – 10,000 K), ATW1 (2,700 – 6,000 K), ATW2 (2,000 – 6,000 K) |
| Light Control Mode | Outdoor scene: Automatic integration of ALC and ELC Indoor scene [50 Hz]: Automatic integration of ALC and ELC (up to 1/100 s) Indoor scene [60 Hz]: Automatic integration of ALC and ELC (up to 1/120 s) Fix shutter |
| Shutter Speed | Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off) |
| Super Dynamic | On/ Off |
| Face Super Dynamic | On/ Off (Only when Super Dynamic: On) |
| Dynamic Range | 105 dB typical (Super Dynamic: On, Light Control mode: Indoor) |
| Adaptive Black Stretch | On/ Off (Only when Super Dynamic: Off) |
| Fog compensation | On/ Off |
| AGC | On (Low, Mid, High)/ Off |
| Electronic Sensitivity UP | Off/ AUTO (Max. 2x (2/30 s), 4x (4/30 s), 6x (6/30 s), 10x (10/30 s), 16x (16/30 s)) |
| Day/Night (ICR) | Mode: AUTO1/ AUTO2/ AUTO3/ On/ Off, Level: High/ Low, with external control |
| Digital Noise Reduction | High/ Low |
| Video Motion Detection | 4 areas, Sensitivity: 15 steps, Detection size: 10 steps |
| Privacy Zone | Up to 8 zones/ Up to 32 zones, Gray/ Mosaic |
| Image Stabilizer | On/ Off |
| VIQS | Up to 2 zones at preset position 1-8 and except preset |
| Double Image Reduction | On/ Off |
| Camera Title (OSD) | Up to 20 characters (alphanumeric characters, marks) |
| Focus distance | Limited/ Unlimited |
| Lens | |
| Focal Length | 4.3 mm – 129.0 mm, 30x |
| Zoom Ratio | 30x/ 90x with extra optical zoom (at 640 x 360) |
| Digital (Electrical) Zoom | 12x (Max. 1080x combined with extra optical zoom at 640 x 360) |
| Angular Field of View | H: 2.6° (TELE) – 64.6° (WIDE), V: 1.6° (TELE) – 38.2° (WIDE) |
| Maximum Aperture Ratio | 1 : 1.6 (WIDE) – 4.7 (TELE) |
| Focusing Range | 2.0 m – ∞ |
| Aperture Range | F1.6 – Close |
| Pan and Tilt | |
| Panning Range | 360° endless |
| Panning Speed | Manual: approx. 0.065°/s – 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 300°/s |
| Tilting Range | -15° to 195° (upward-level-downward) Auto Eyelid Mechanism (Double image reduction) Selectable tilting angle: 0° / –5°/ –10° / –15 |
| Tilting Speed | Manual: approx. 0.065°/s to 120°/s, Up to 256 steps (depending on the controller) Preset: up to approx. 300°/s |
| Proportional Pan/Tilt Control | Yes |
| Number of Preset Positions | 256 |
| Auto Mode | preset sequence/ auto pan/ auto track/ patrol |
| Image Hold | On/ Off |
| PTZ Position Display | On/ Off |
| Self Return | 10 s / 20 s / 30 s / 1 min / 2 min / 3 min / 5 min / 10 min / 20 min / 30 min / 60 min |
| Map Shot | 360° map shot/ preset map shot |
| Browser GUI | |
| Camera Control | Pan/Tilt (256 steps), Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode |
| Display Mode | Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad screens or 16 split screen (JPEG only). 20 characters camera title available |
| Camera Title | Up to 20 alphanumeric characters |
| Clock Display | Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual) |
| Alarm Control | Reset |
| One Shot Capture | A still picture will be displayed on a newly opened window. |
| Audio | – Mic (Line) Input: On/ Off Volume adjustment: Low/ Middle/ High – Audio Output: On/ Off Volume adjustment: Low/ Middle/ High |
| SD Memory Data Download | Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded. |
| GUI/Setup Menu Language | English/ Italian/ French/ German/ Spanish/ Russian/ Chinese/ Japanese |
| System Log | Up to 100 (Internal) Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs |
| Supported OS | Microsoft® Windows® 8.1, Microsoft® Windows® 8, Microsoft® Windows® 7, Microsoft® Windows Vista®, Microsoft® Windows® XP SP3 |
| Supported Browser | Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit), Windows® Internet Explorer® 9 (32 bit), Windows® Internet Explorer® 8 (32 bit),Windows® Internet Explorer® 7 (32 bit) |
| Network | |
| Network IF | 10Base-T/ 100Base-TX, RJ45 connector |
| Image Resolution | – Image Capture Mode: 2 Megapixel [16:9]: + H.264: 1,920 x 1,080/ 640 x 360/ 320 x 180, up to 30 fps + JPEG (MJPEG): 1,920 x 1,080/ 640 x 360/ 320 x 180, up to 30 fps – Image Capture Mode: 1.3 Megapixel [16:9] + H.264: 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps + JPEG (MJPEG): 1,280 x 720/ 640 x 360/ 320 x 180, up to 30 fps – Image Capture Mode: 1.3 Megapixel [4:3] + H.264: 1,280 x 960/ VGA(640 x 480)/ QVGA(320 x 240), up to 30 fps + JPEG (MJPEG): 1,280 x 960/ VGA(640 x 480)/ QVGA (320 x 240), up to 30 fps |
| H.264 | – Transmission Mode: Constant bitrate/ Frame rate priority/ Best effort/Advanced VBR – Frame Rate: 1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps – Bit Rate/ Client: 64/ 128 / 256/ 384/ 512/ 768/ 1,024/ 1,536/ 2,048/ 3,072/ 4,096/ 6,144/ 8,192/ 10,240/ 12,288/ 14,336 kbps – Image Quality: Low/ Normal/ Fine – Refresh Interval: 0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5 s – Transmission Type: Unicast/ Multicast |
| JPEG | – Image Quality: 10 steps – Refresh Interval: 0.1 fps – 30 fps – Transmission Type: Pull/ Push |
| Audio Compression | G.726 (ADPCM) 32 kbps/ 16 kbps, G.711 64 kbps for transmitting, AAC for audio recording and sound detection |
| Audio Mode | Off/ Mic (Line) input/ Audio output/ Interactive (Half duplex)/ Interactive (Full duplex) |
| Authentication for Audio | Level 1 only/ Level 2 higher/ All users |
| Total Bit Rate | 64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited |
| Supported Protocol | – IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6 , ICMP, ARP – IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| FTP Client | Alarm image transmission, FTP periodic transmission (When the FTP transmission is failed, backup on an optional SDXC/SDHC/SD memory card is available.) |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) |
| SDXC/SDHC/SD Memory Card (Option) | – H.264 recording (Audio recording is enable): Manual REC/ Alarm REC (Pre/Post)/ Schedule REC – JPEG recording: Manual REC/ Alarm REC (Pre/Post)/ Backup upon network failure – Compatible SD (SDHC/SDXC) card: Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64GB** model *SDHC card, ** SDXC card (except miniSD card and microSD card) |
| Cellular Phone Compatibility | JPEG image |
| Mobile Terminal Compatibility | iPad, iPhone, iPod touch (iOS 4.2.1 or later) Android mobile terminals |
| Alarm | |
| Alarm Source | 3 terminals input, VMD, Command alarm, Sound detection |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output |
| Alarm Log | With SDXC/ SDHC/ SD memory card: 5,000 logs, without SDXC/ SDHC/ SD memory card: 1,000 logs |
| Schedule | Alarm/ VMD/ Access permission/ H.264 recording/ Sound detection |
| Input/ Output | |
| Monitor Output (for adjustment) | VBS: 1.0V[p-p]/ 75Ω, NTSC/ PAL composite, BNC Jack |
| Microphone/Line Input | MIC IN and Line IN are selectable. ø3.5 mm stereo mini jack (monaural input) (Applicable microphone: Plug-in power type) Supply voltage: 2.5 V ±0.5 V Input impedance: approx. 2 kΩ |
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Line level |
| External I/O Terminals | ALARM IN 1 (DAY/NIGHT IN), ALARM IN 2 (ALARM OUT), ALARM IN 3 (AUX OUT) |
| General | |
| Safety/EMC Standard |
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1 FCC Part15 Class A, ICES-003 Class A, EN55022 Class B, EN55024 |
| Power Source and Power Consumption | AC 24V: 3.5A, 55W PoE+: 470mA, 25W (IEEE802.3at compliant) POE Injector (60 W): 1.0A, 50W |
| Ambient Operating Temperature | AC24 V and Tested PoE Injector (60W): –50 °C to +55 °C (-58 °F to 131 °F) * with limitations POE+: -30°C to +55°C (-22 °F to 131 °F) |
| Ambient Operating Humidity | Less than 90 % (no condensation) |
| Impact Protection | IEC 62262 : 2002 IK10 (Impact energy 20J) |
| Water and Dust Resistance | IP66 rated water and dust resistant. Compatible with IEC60529 measurement standard,Type 4x(UL50), NEMA 4x compliant. |
| Dimensions | ø229 mm x 392 mm(H) {ø9-1/32 inches x 15-7/16 inches(H)} diameter of the dome 160 mm(6-5/16 inches) |
| Mass (approx.) | Approx. 5.0 kg { 11.04 lbs} |
| Finish | Main body: Aluminum die cast, Natural silver Sunshields: ASA resin coating, Natural silver Dome section: Clear polycarbonate resin |
– Xuất xứ: Trung Quốc.
– Bảo hành: 12 tháng.
