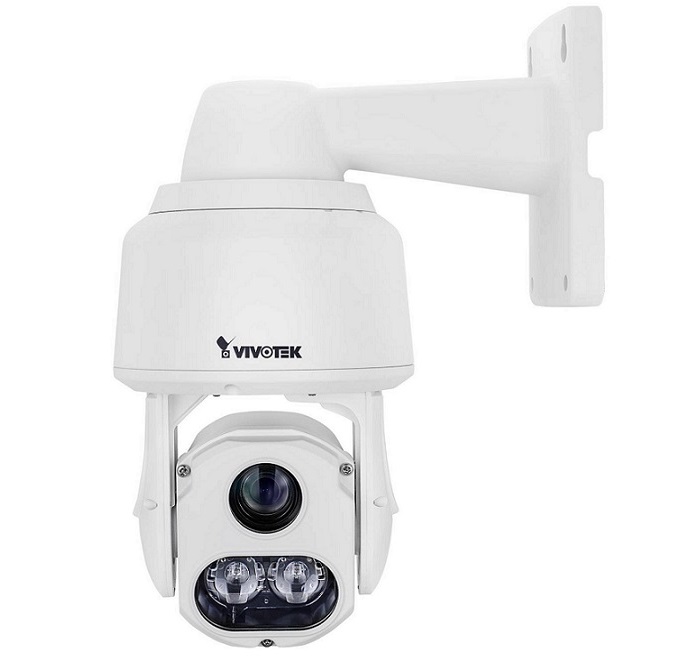

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Vivotek SD9364-EH
-Bảo hành: 36 tháng.
Camera IP Speed Dome hồng ngoại 2.0 Megapixel Vivotek SD9364-EH
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel (1920 x 1080).
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC.
-Ống kính: 4.3 ~ 129mm.
-Zoom quang: 30x.
-Zoom số: 48x.
-Góc quan sát theo chiều ngang là: 23º ~ 64º (H), theo chiều dọc: 1.3º ~ 36º (V), theo phương chéo: 2.6º ~ 73º (D).
-Tầm quan sát hồng ngoại: 250 mét.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng Smart Stream II.
-Chức năng Auto Focus.
-Chức năng chống ngược sáng WDR Pro.
-Chức năng chống sương mù Defog.
-Chức năng chống rung kỹ thuật EIS.
-Hỗ trợ âm thanh: 2 chiều.
-External microphone input, external line output.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Cổng kết nối: RJ45.
-Nguồn điện: 48VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 81.8W (Heater on), tối đa 28.5W (Heater off).
-Kích thước: Ø 204 x 285 mm.
-Trọng lượng: 6.030g.
Đặc tính kỹ thuật
| Model | SD9364-EH: 30x, 250M IR |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.8 inch Progressive CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Lens Type | 30x Optical Zoom, Auto Focus |
| Focal Length | f = 4.3 ~ 129 mm (30x zoom) |
| Aperture | F1.6 ~ F4.7 |
| Auto-iris | DC-iris |
| Field of View | 2.3° ~ 64° (Horizontal) |
| 1.3° ~ 36° (Vertical) | |
| 2.6° ~ 73° (Diagonal) | |
| Shutter Time | 1 sec to 1/10,000 sec |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.07 Lux @ F1.6 (Color) |
| 0 Lux @ F1.6 (B/W) | |
| Pan Speed | 0.1° ~ 300° / sec |
| Pan Range | 360° endless |
| Tilt Speed | 0.1° ~ 300° / sec |
| Tilt Range | 220° ( -110° ~ +110° ) |
| Preset Locations | 256 preset locations |
| 128 presets per tour | |
| Pan/Tilt/Zoom Functionalities | 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Auto pan mode | |
| Auto patrol mode | |
| IR Illuminators | 250 m |
| On-board Storage | Slot type: SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: |
| 60 fps @ 1920 x 1080 | |
| MJPEG: | |
| 30 fps @ 1920 x 1080 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 62 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Smart Stream II | |
| Image Settings | Adjustable image size, quality and bit rate. Time stamp, text overlay, flip & mirror. Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24). Scheduled profile settings, defog, 3DNR, EIS, HLC |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45). It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD card. File upload via HTTP, SMTP, FTP, NAS server and SD card |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100/1000Mbps PoE connection |
| Audio input | |
| Audio output | |
| 48VDC power input | |
| Digital input x 4 | |
| Digital output x 2 | |
| RS-485 for PTZ control (PelcoD protocol, Baud rate 2400) | |
| LED Indicator | System power and status indicator |
| Power Input | 95W PoH/PoE |
| 48VDC | |
| Power Consumption | Max. 81.8 W (Heater on) |
| Max. 28.5 W (Heater off) | |
| Dimensions | Ø 204 x 285 mm |
| Weight | Net: 6,030 g |
| Casing | Weather-proof IP66, Vandal-proof IK10 and NEMA 4X-rated housing |
| Safety Certifications | CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL |
| Operating Temperature | Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F) |
| Working Temperature: -50°C ~ 55°C (-58°F ~ 131°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (Streaming only) |
| Internet Explorer 7/8/9/10/11 | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
-Bảo hành: 36 tháng.
