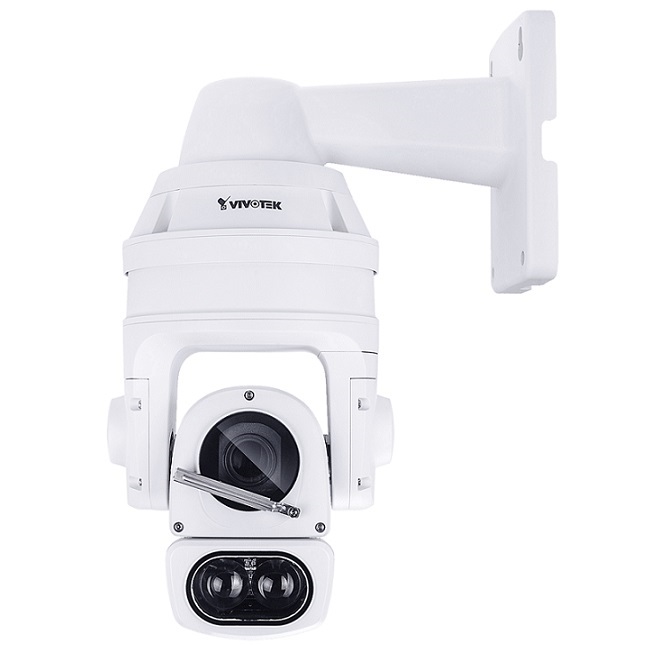

Camera IP Speed Dome hồng ngoại 2.0 Megapixel Vivotek SD9365-EHL
-Bảo hành: 36 tháng.
Camera IP Speed Dome hồng ngoại 2.0 Megapixel Vivotek SD9365-EHL
-Cảm biến hình ảnh: 1/3 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Độ phân giải camera ip: 2.0 Megapixel.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC.
-Ống kính: 4.7 ~ 94mm.
-Zoom quang: 20x.
-Zoom số: 128x.
-Góc quan sát theo chiều ngang: 3° ~ 55° (Horizontal), theo chiều dọc:
2° ~ 33° (Vertical), theo phương chéo: 3° ~ 63° (Diagonal).
-Số đèn LED hồng ngoại: 2 đèn IR LED.
-Tầm quan sát hồng ngoại: 150 mét.
-Chức năng quan sát Ngày và Đêm.
-Chức năng chống ngược sáng WDR Pro.
-Chức năng giảm nhiễu số 3DNR.
-Hỗ trợ âm thanh: 2 chiều.
-External microphone input, External line output.
-Số lượng truy cập đồng thời là: 10 người.
-Cổng kết nối: RJ45.
-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
-Tiêu chuẩn chống va đập: IK10.
-Nguồn điện: 24VAC.
-Chức năng cấp nguồn qua mạng PoE.
-Kích thước: 236.45 x 364.2mm.
-Trọng lượng: 5.700g.
Đặc tính kỹ thuật
| Model | SD9365-EHL |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features | |
| Image Sensor | 1/3 inch Progressive CMOS |
| Max. Resolution | 1920 x 1080 |
| Lens Type | 20x Optical Zoom, Auto Focus |
| Focal Length | f = 4.7 ~ 94 mm (20x zoom) |
| Aperture | F1.6 ~ F3.5 |
| Iris type | DC-Iris |
| Field of View | 3° ~ 55° (Horizontal) |
| 2° ~ 33° (Vertical) | |
| 3° ~ 63° (Diagonal) | |
| Shutter Time | 1/8 sec to 1/30,000 sec |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| IR Illuminators | Built-in IR Illuminators up to 150 meters with VAIR IR LED x 2 |
| Minimum Illumination | 0.26 Lux @ F1.6 (Color) |
| 0.01 Lux @ F1.6 (B/W) | |
| 0 Lux with IR illumination on | |
| Pan Speed | 0.1° ~ 300° / sec |
| Pan Range | 360° endless |
| Tilt Speed | 0.1° ~ 300° / sec |
| Tilt Range | 220° (-110° ~ +110°) |
| Preset Locations | 256 preset locations |
| 128 presets per tour | |
| Pan/Tilt/Zoom Functionalities | 128x digital zoom (4x on IE plug-in, 32x built-in), Auto pan mode, Auto patrol mode |
| On-board Storage | Slot type: Micro SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H265, H264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: 60 fps @ 1920 x 1080. MJPEG: 30 fps @ 1920 x 1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 53 dB |
| Dynamic Range | 110 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, EIS, HLC |
| Audio | |
| Audio Capability | Two-way Audio |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, NTCIP |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45) |
| It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and Micro SD card |
| File upload via HTTP, SMTP, FTP, NAS server and Micro SD card | |
| General | |
| Connectors | RJ-45 cable connector for Network 10/100 Mbps PoE connection x 1 |
| Audio input x 1 | |
| Audio output x 1 | |
| AC/DC 24V power input x 1 | |
| Digital input x 4 | |
| Digital output x 2 | |
| RS-485 for PTZ control (PelcoD protocol, Baud rate 2400) x 1 | |
| LED Indicator | System power and status indicator |
| Power Input | PoH/PoE (95W) |
| AC/DC 24V | |
| Power Consumption | PoH/PoE (95W): |
| Max. 70 W (Heater on) | |
| Max. 39 W (Heater off) | |
| AC/DC 24V: | |
| Max. 96 W (Heater on) | |
| Max. 45 W (Heater off) | |
| Dimensions | 236.45 x 364.2 mm |
| Weight | 5,700 g |
| Casing | IP66, IK10, NEMA 4X |
| Safety Certifications | CE, FCC Class A, VCCI, C-tick, NEMA 4X, UL |
| Operating Temperature | Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F) |
| Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) | |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
-Bảo hành: 36 tháng.
