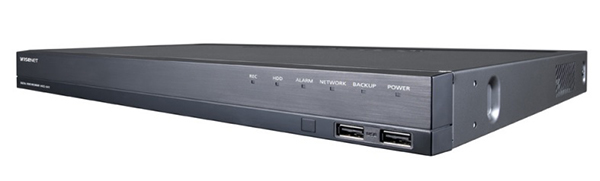

Đầu ghi hình camera AHD 8 kênh Hanwha Techwin WISENET HRD-841P/VAP

– Chuẩn nén hình ảnh: H.264

Danh mục: Đầu ghi hình WISENET

Mô tả
Sản phẩm liên quan

Đầu ghi hình camera AHD 8 kênh Hanwha Techwin WISENET HRD-841P/VAP

– Đầu ghi hình camera AHD 8 kênh.

– Chuẩn nén hình ảnh: H.264

– 4 ngõ vào Audio, 1 ngõ ra Audio.

– Tốc độ ghi hình: Lên đến 120/ 100 (4MP) fps.

– Tốc độ ghi hình: Lên đến 240/ 200 (1080p) fps.

– Ngõ vào camera Analog: TVI, CVI (tối đa 2MP).

– Tương thích với tín hiệu ngõ ra Video: HDMI/ VGA.

– Hỗ trợ 2 ổ cứng SATA dung lượng lưu trữ tối đa 12TB.

– Cáp đồng trục Pelco-C (Coaxitron) AHD: ACP (AHD Coax Protocol).

– Hỗ trợ xem qua điện thoại di động Smartphone.

– Nguồn điện: 12VDC.

– Công suất tiêu thụ tối đa: 23W.

– Kích thước: 370 x 44 x 320mm.

– Trọng lượng: 291kg.

Đặc tính kỹ thuật

DISPLAY
Video	Inputs	8channel BNC : AHD (2MP, 4MP), TVI (2MP), CVI (2MP), NTSC / PAL
Video	Resolution	2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / 960 x 576, 704 x 576
Live	Frame Rate	240fps / 200fps
	Resolution	2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480 / 960 x 576, 704 x 576
	Multi Screen Display	1 / 4 / 7 / 9 / PIP / Sequence
PERFORMANCE
Operating System	Embedded	Linux
Recording	Compression	H.264
	Record Rate (Analog)	NTSC: Up to 120fps@4MP / PAL : Up to 100fps@4MP
		NTSC: Up to 240fps@1920 x 1080 / PAL : Up to 200fps@1920 x 1080
		NTSC: Up to 240fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240
		PAL: Up to 200fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288
	Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30 fps (N), 1 ~ 25fps (P))
	Event	Video Loss, Motion (Level 1 ~ 10),
	Event	Alarm, Tampering (Level Low, Medium, High)
	Overwrite Modes	Continuous
	Pre-alarm	Up to 30 sec (5, 10, 20, 30 Sec)
	Post-alarm	Up to 6 hour (5, 10, 20, 30 Sec, 1, 3, 5, 10, 20 min, 1, 2, 3, 4, 5, 6 hour)
Search &	Search Mode	Date / time, Event, Back up, Motion
Playback	Playback Function	Fast forward / Backward (2x, 4x, 8x, 16x, 32x, 64x) Backward play with i-frame only
		Slow forward / Backward (1/2x, 1/4x, 1/8x)
		Step Forward / Backward (Backward Play with I-frame only)
Network (IPv4)	Transmission Speed	Record (Main) Stream 4MP: 15fps / CH, 1080p / 720p / WD1 / 4CIF / CIF: 30fps / CH (N), 25fps / CH (P)
	Transmission Speed	Network (Sub) Stream WD1 / 4CIF : 12fps / CH, 2CIF / CIF : 30fps / CH (N), 25fps / CH (P)
	Bandwidth	Up to 64Mbps
	Bandwidth Control	Selectable
	Stream	Record stream and network stream selectable (at monitoring viewer)
	Max. Remote Users	Search (3) / Live Unicast (10) / Live Multicast (20)
	Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
	Monitoring	SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
Smart Phone	Platform	Android, iOS
	Protocol Support	RTP, RTSP, HTTP
	Control	Live (8ch): Multi-Profile Support Playback (1ch)
	Max. Remote Users	Search (3), Live Unicast (10), Multicast (20)
Storage	Internal HDD	Up to 2 SATA HDDs (0 ~ 6TB HDD)
	External (e-SATA Interface)	e-SATA, USB (for Backup)
	File Format (Backup)	BU (DVR player), SEC (Include player), AVI
Security	Password Protection	1 Admin, 10 group, 10 User per 1 group
Security	Data Authentication	Watermark
INTERFACE
Monitors	VGA	1 VGA (1920 x 1080, 1280 x 1024, 1280 x 720)
	HDMI	1 HDMI (4K (3840 x 2160), 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720)
	Spot Composite	BNC (1CH) Included OSD on screen, Multimode support
Audio	Inputs / Output	4CH line in / 1CH line out
	Compression	G.711
	Sampling Rate	8KHz
Alarm	Inputs / Output	Terminal 8 inputs (NO/NC) / Terminal 4 relay outputs (NO/NC),
	Inputs / Output	Rating: 30V DC/2A, 250V AC/0.25A
	Remote Notification	Notification Via e-mail
Connections	Ethernet	1 RJ45 10/100/1000 Base-T
	Serial Interface	RS-485 (Half Duplex) for PTZ, Samsung System Keyboard
	USB	1 ports (USB 3.0, Rear), 1 ports (USB 2.0, Front)
	e-SATA	1 External SATA port
	Application Support	Mouse, IR remocon
	RS-485 Protocol	Samsung-E / Samsung-T / Pelco-D / Pelco-p / Panasonic / Phillips / AD /
	RS-485 Protocol	DIAMOND / ERNA / KALATEL / VCL TP / VICON / ELMO / GE
	Coax Protocol	NTSC / PAL: Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol)
LAUGUAGE	GUI	English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai , Taiwanese (25 Language)
	Web Browser	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian,
	Web Browser	Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai (23 Language)
GENERAL
Electrical	Input Voltage / Current	12VDC adaptor (100 ~ 250V AC ±10%, 50/60Hz
Electrical	Power Consumption	Max. 23W (1 x 3T HDD)
Environmental	Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Environmental	Operating Humidity	20% ~ 85% RH
Mechanical	Dimensions	370.0 x 44.0 x 320.0mm
Mechanical	Weight (With hard disks	Approx. 2.91kg (6.42 lb) (with 3TB HDDs)

– Hãng sản xuất: Hanwha Techwin Việt Nam.

– Bảo hành: 36 tháng.
